SKU:

XACB9113

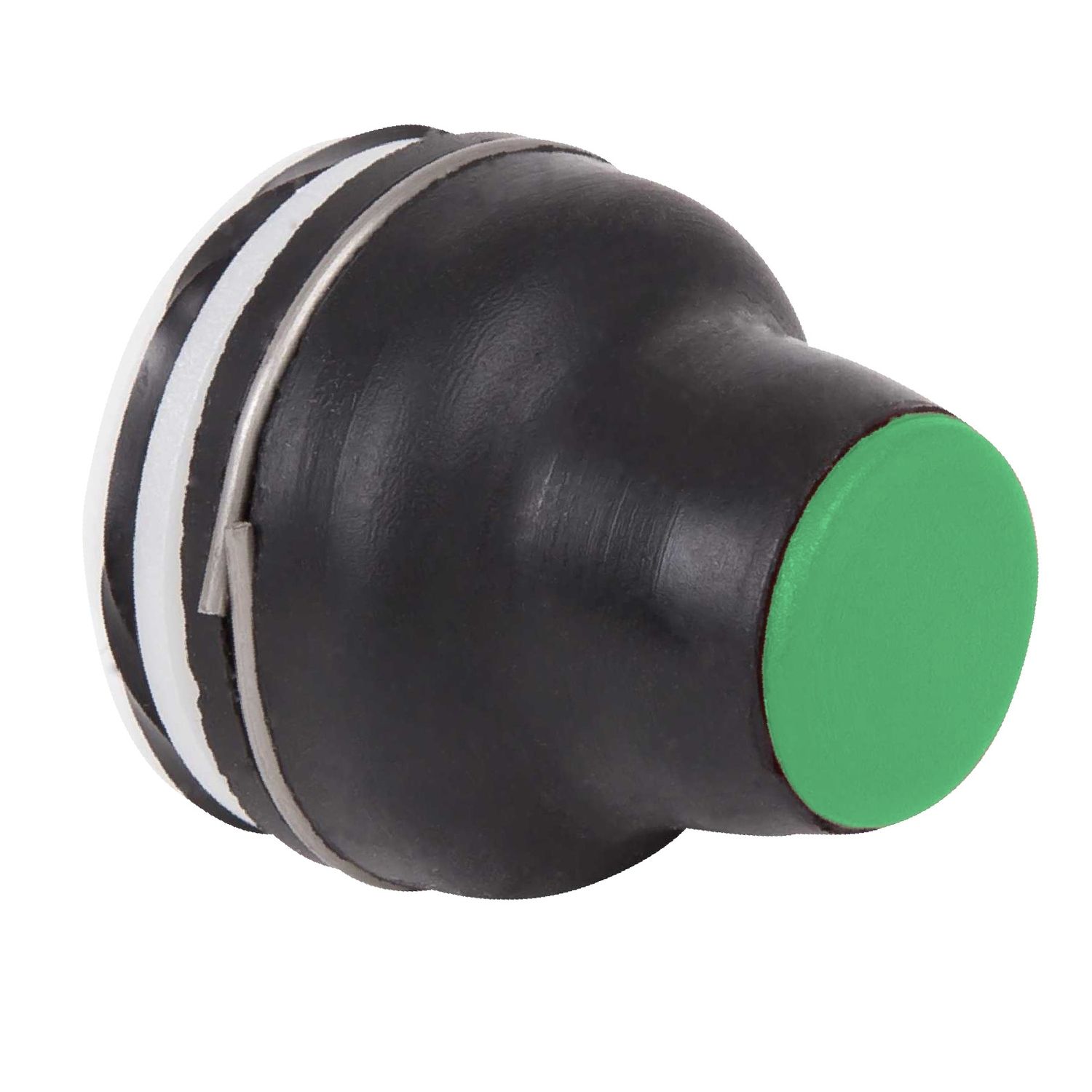

booted head for pushbutton XAC-B - green - 4 mm, -25..+70 °C

Old price: $26.73 INC GST

Price: $20.85 INC GST

Qty:

Available for Shipping : 06-Jan-2026

booted head for pushbutton XAC-B - green - 4 mm, -25..+70 °C

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

Declaration of conformity

Instruction sheet

Catalog

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product compatibility	XESD2201, XESD2251, XENB...., XESD2241, XESB2011, XEND...., XENC....
Operating travel	4 mm
Sale per indivisible quantity	10
Component name	XACB
Cap/operator or lens colour	green
Marking	unmarked
Product or component type	head for push-button
Range of product	Harmony XAC
Operator additional information	booted
Complementary
Net weight	0.005 kg
Environment
Electrical shock protection class	class II conforming to IEC 61140
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP65 conforming to IEC 60529
Vibration resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance	100 gn conforming to IEC 60068-2-27
Standards	EN 60947-5-1, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK08 conforming to EN 50102
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	3.000 cm
Package 1 Length	3.330 cm
Package 1 Weight	6.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	12.000 cm
Package 2 Width	3.000 cm
Package 2 Length	10.000 cm
Package 2 Weight	63.000 g
Unit Type of Package 3	3
Number of Units in Package 3	100
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	851.000 g
