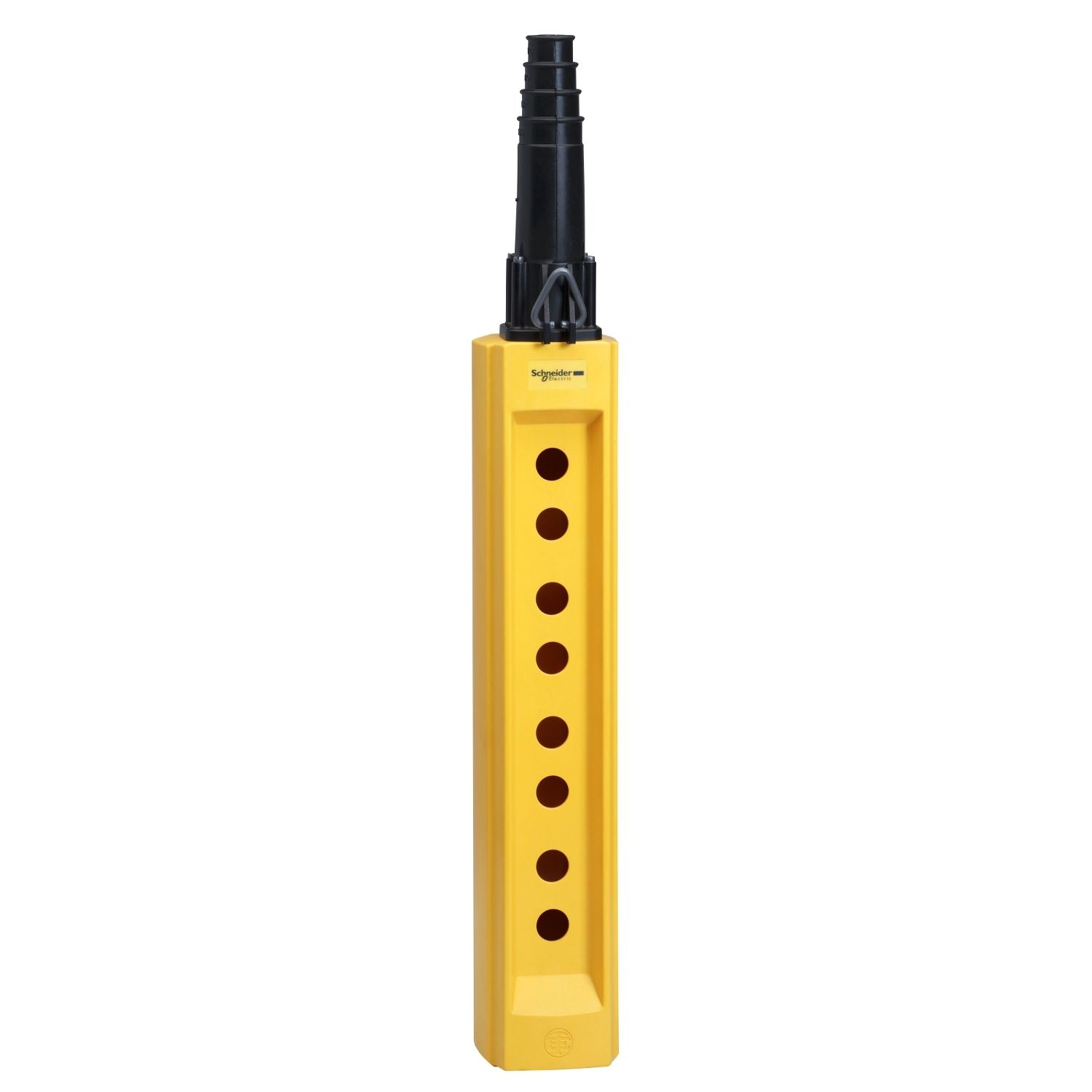

Picture of Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs + 1 in base, cable 10…22mm
SKU:

XACB081

Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs + 1 in base, cable 10…22mm

Old price: $439.89 INC GST
$343.11 INC GST
Available for Shipping : 06-Jan-2026
Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs + 1 in base, cable 10…22mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Instruction sheet
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name XACB
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Protective treatment TH
Enclosure material glass reinforced polyester
Electrical circuit type control circuit, power circuit
Mechanical durability 1000000 cycles
Control station colour yellow
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Number of cut-out 8 cut-outs
Vertical operator cut-out centre 40 mm
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
Net weight 1.33 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type empty enclosure
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 10-22 mm
Standards EN/IEC 60947-5-1, CSA C22.2 No 14
Ambient air temperature for operation -25-70 °C
Guard rail without
IK degree of protection IK08 conforming to EN 50102
Product certifications CSA type 4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 70.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 1.376 kg
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 47.400 kg
