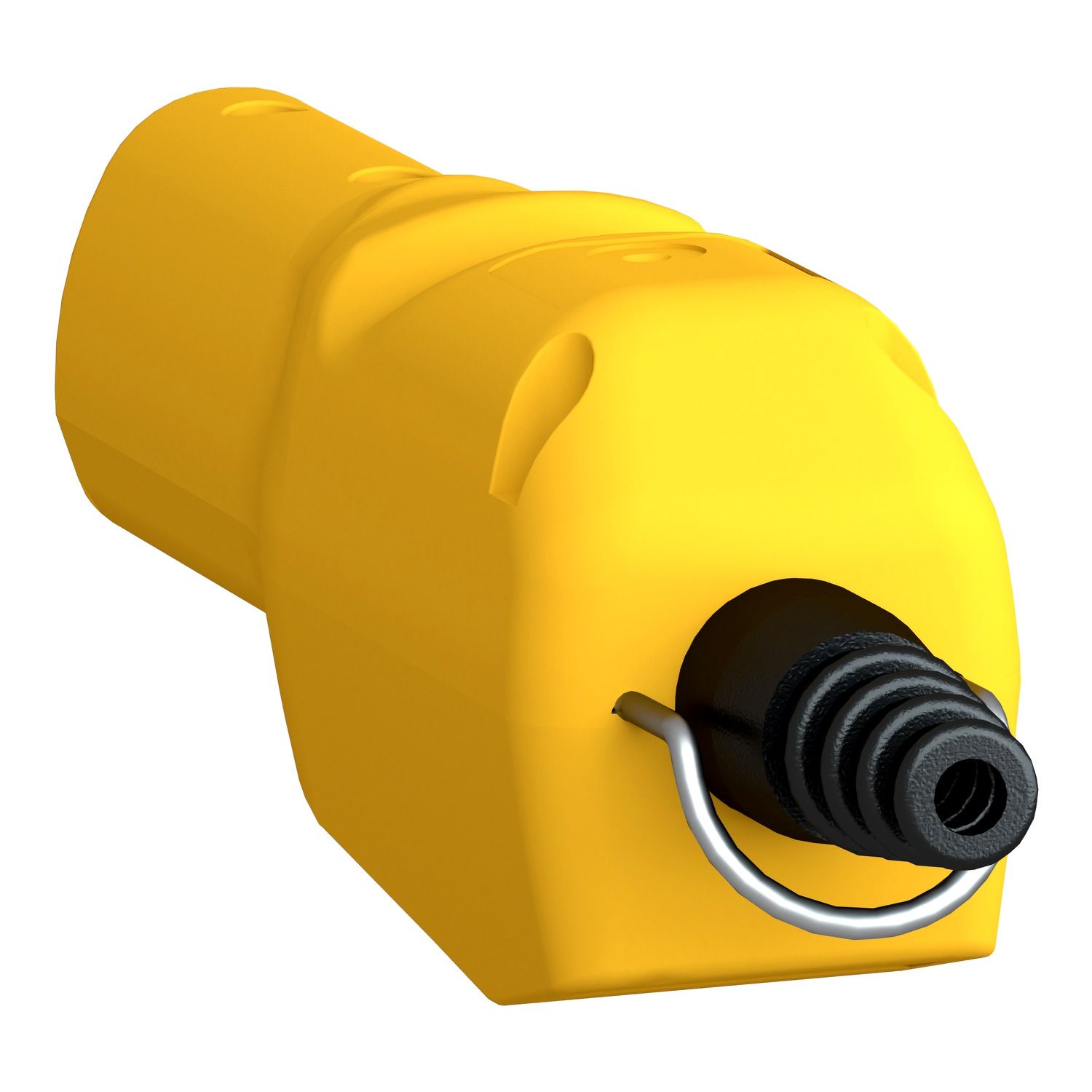

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

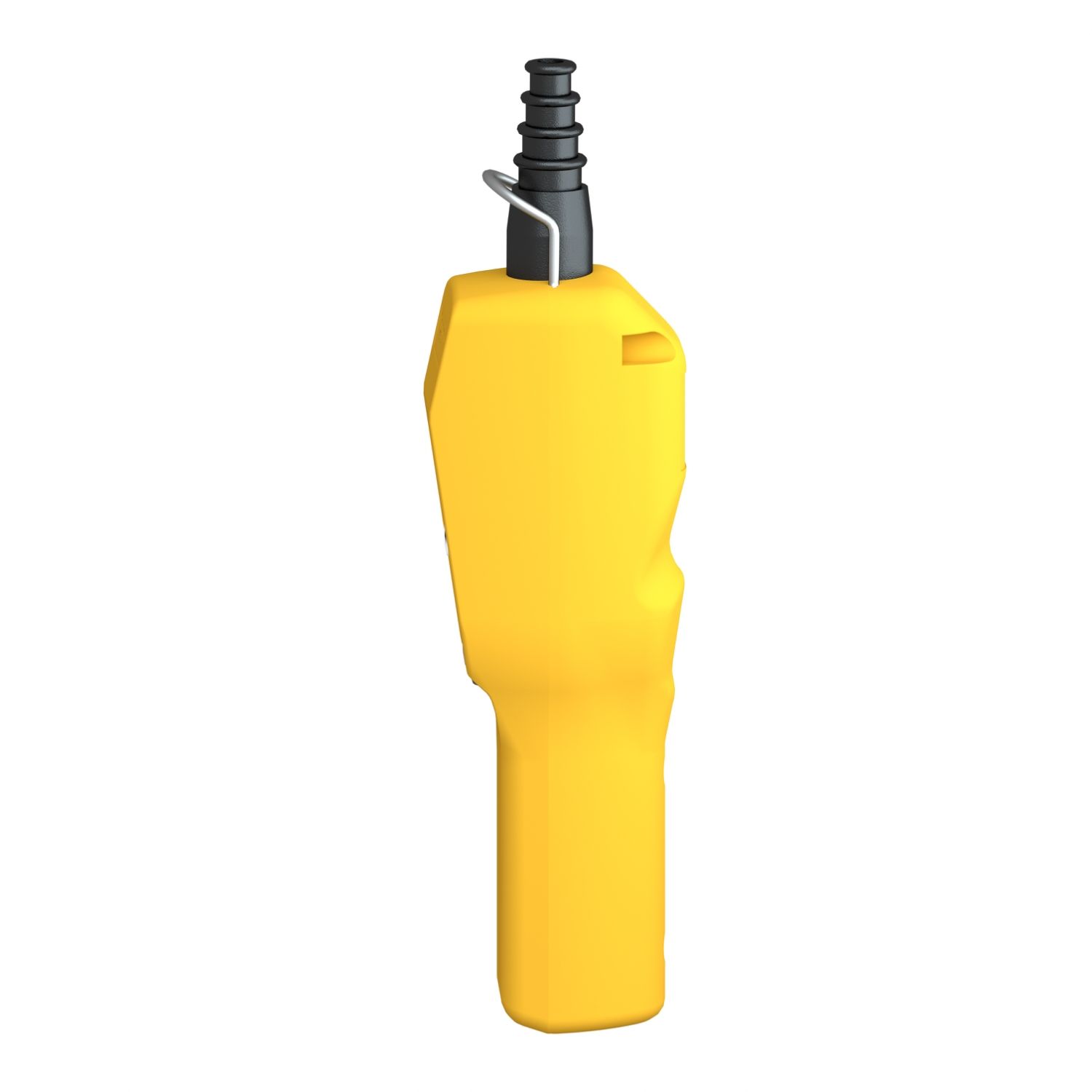

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

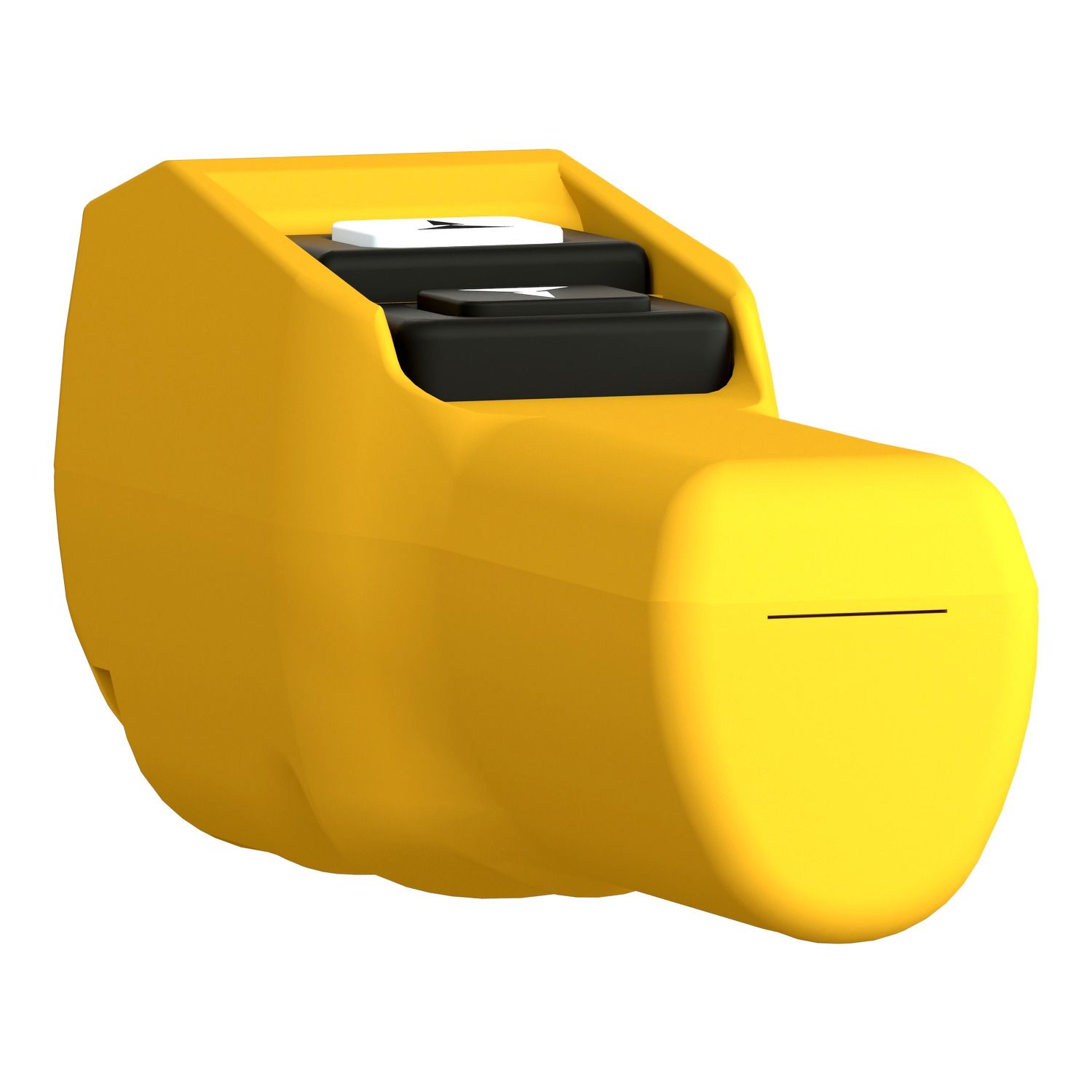

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

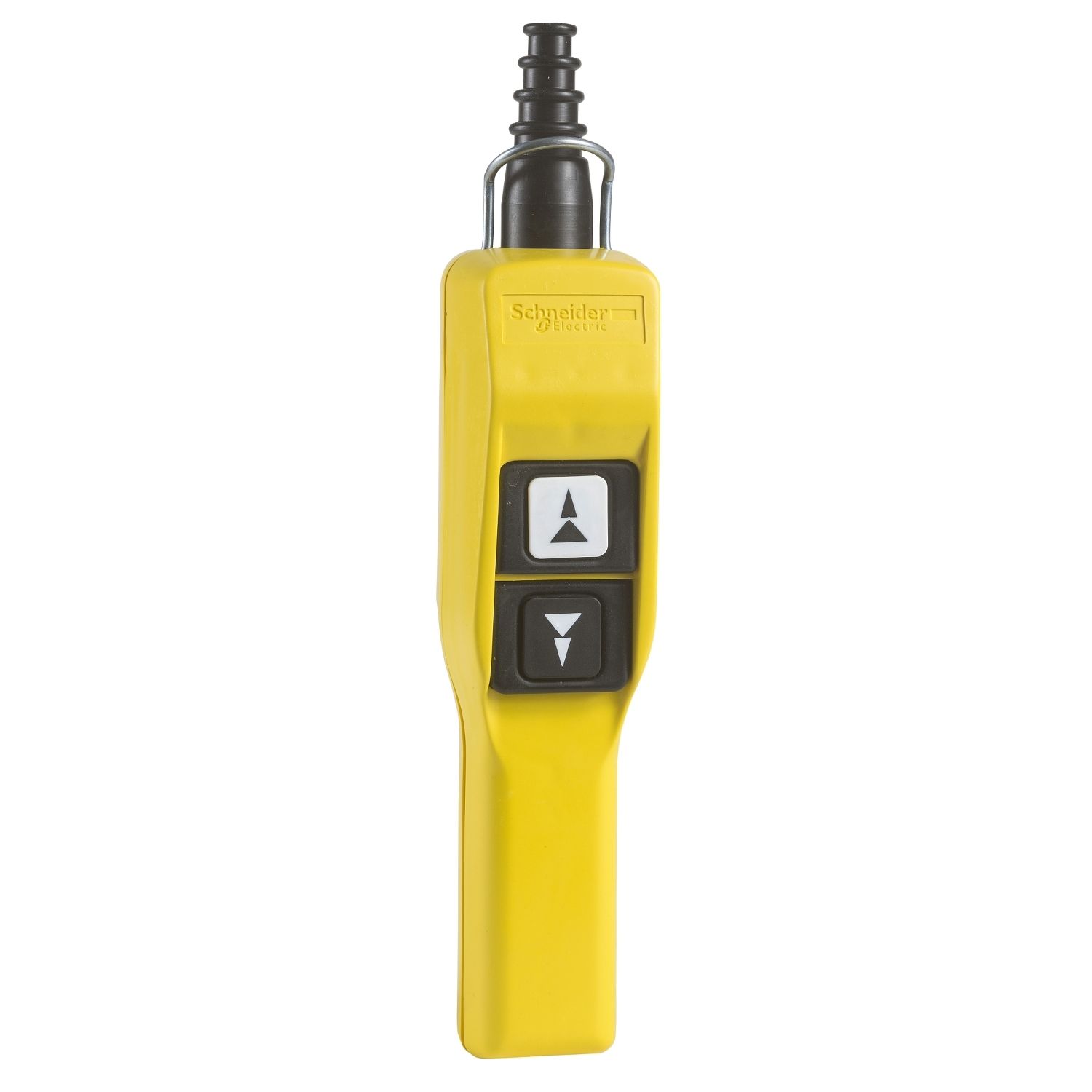

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

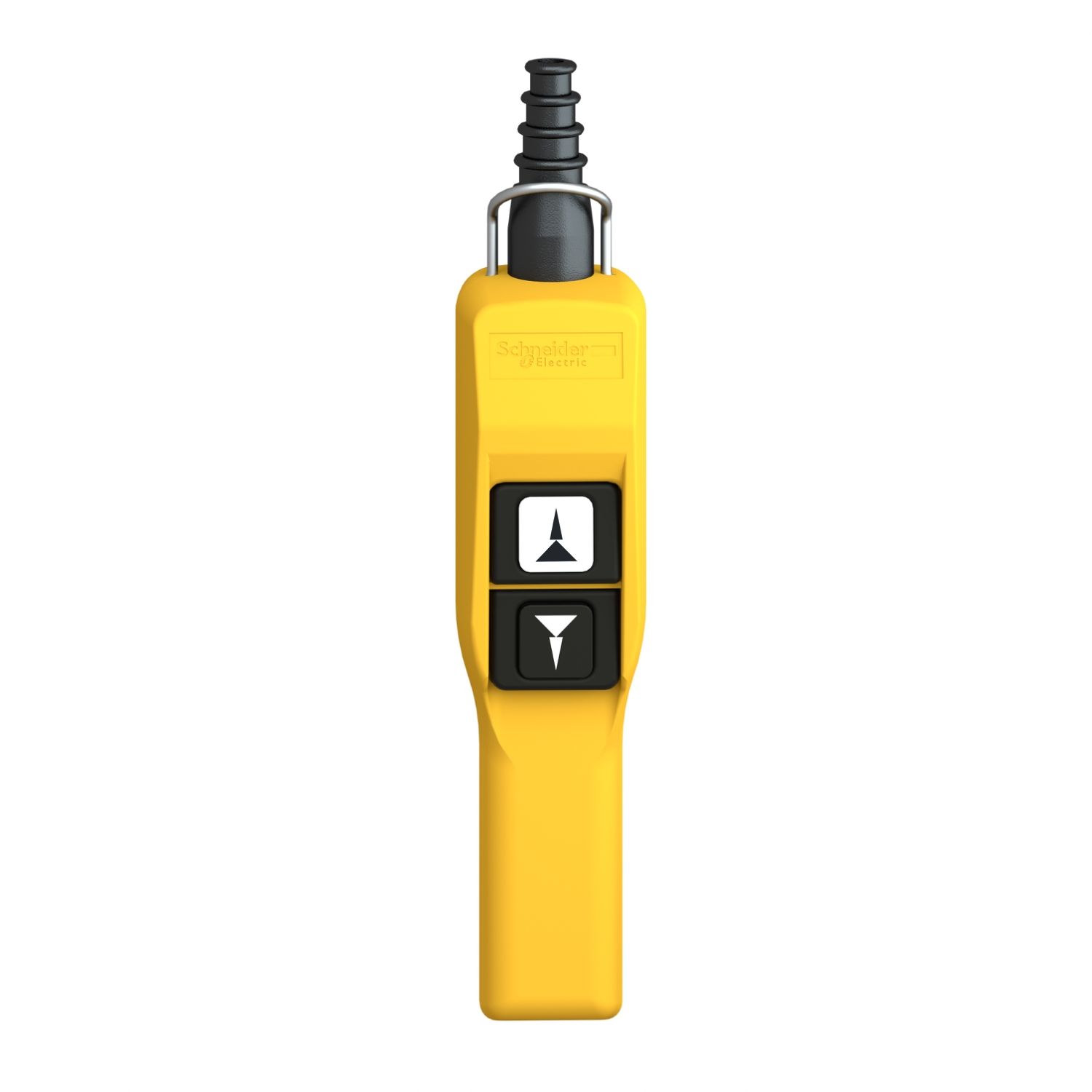

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

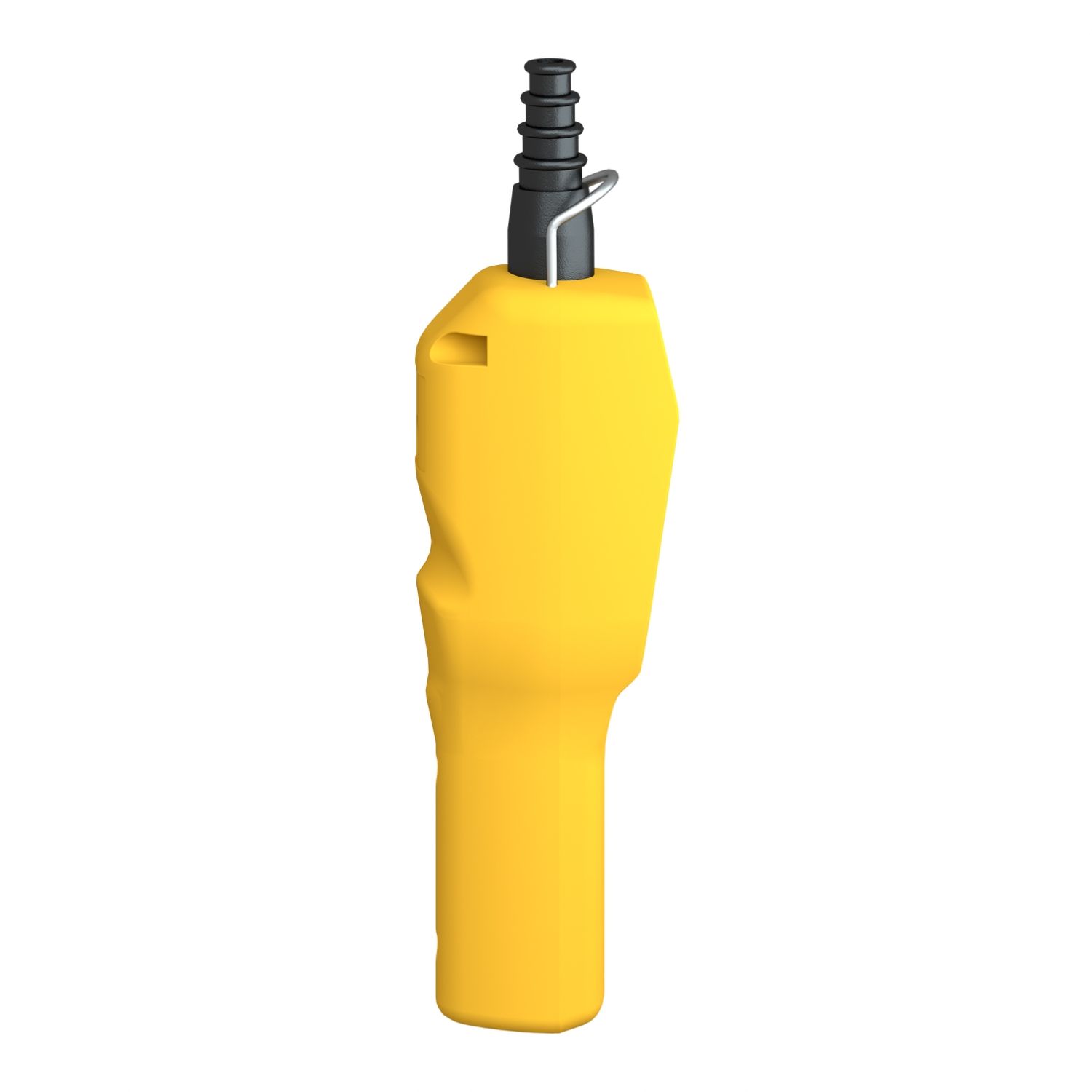

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

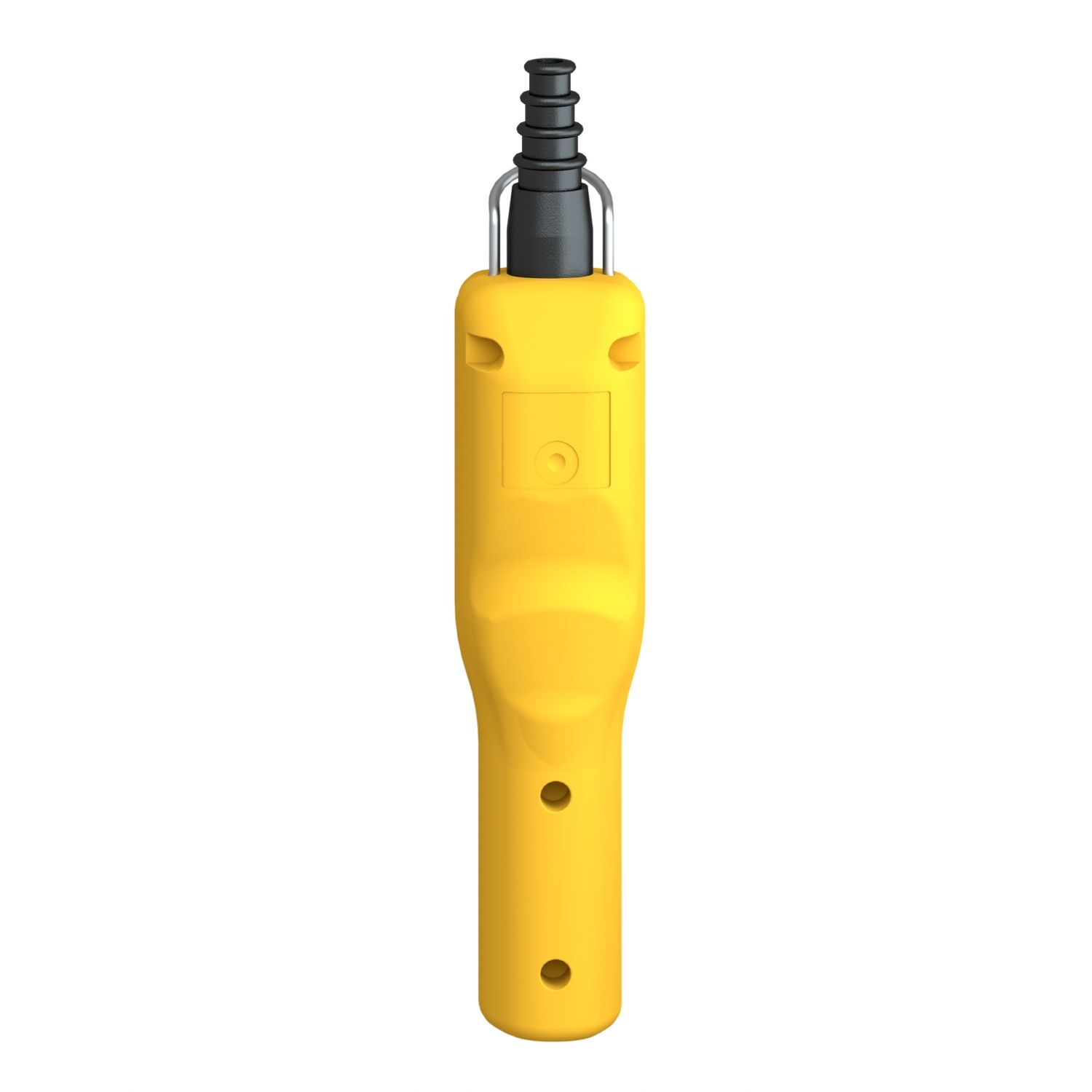

Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO
Picture of Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO
SKU:

XACA217

Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO

Old price: $559.90 INC GST
$436.72 INC GST
Available for Shipping : 12-Jan-2026
Pendant control station, Harmony XAC, plastic, yellow, pistol grip, 2 booted push buttons with 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Declaration of conformity
Instruction sheet

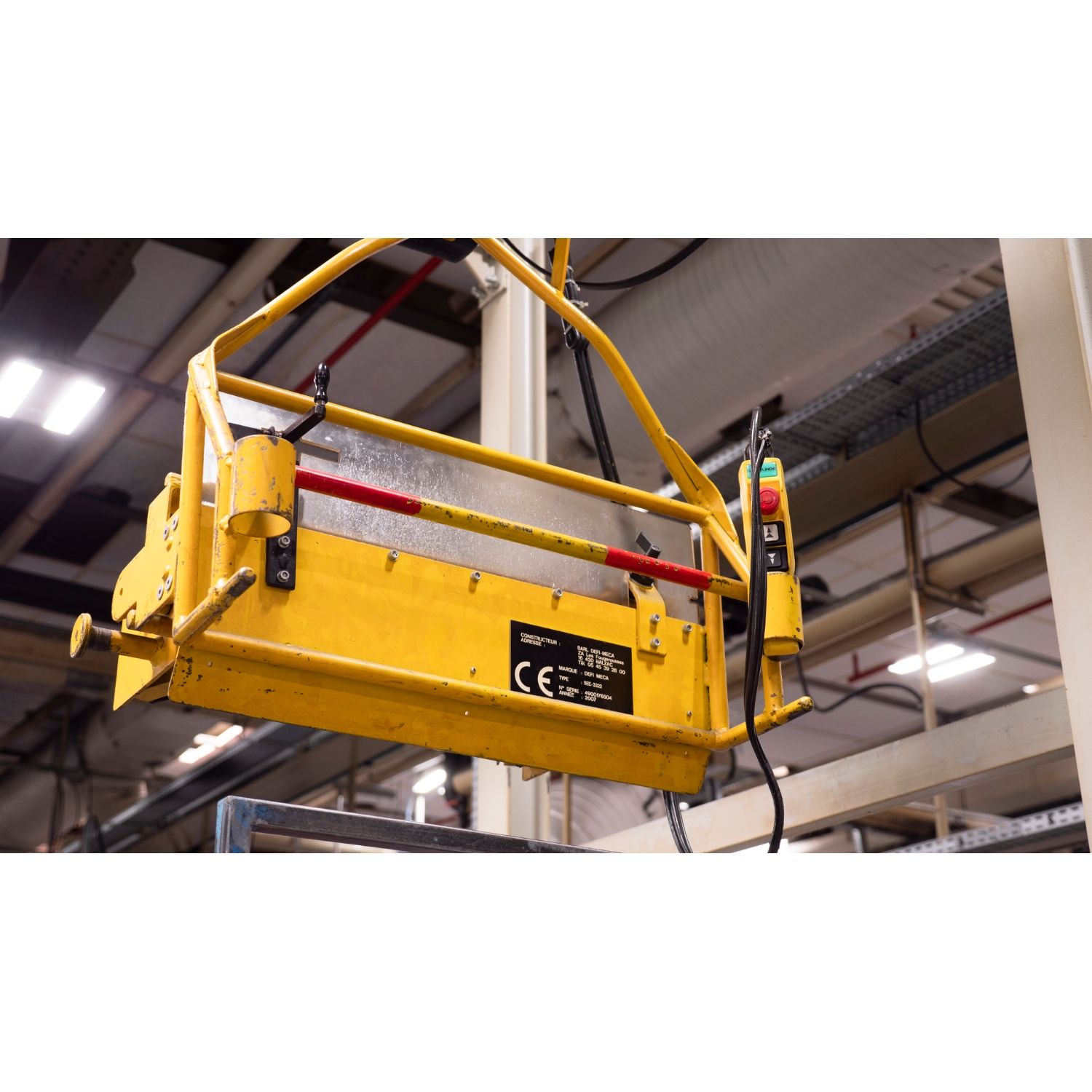

Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XACA217 is a pendant station pistol grip with 2 booted push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Device short name XACA pistol grip
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type second push-button 2 NO (2 step) lower, slow-fast, first push-button 2 NO (2 step) raise, slow-fast
Operating force 13-15 N
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking
Contact operation staggered, slow-break
Overvoltage category class II conforming to IEC 61140
Control station composition 2 booted push-buttons
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
Control type intuitive
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility ZB2BE101 + ZB2BE201 for each direction
Net weight 0.32 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 7-15 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60204-32
Terminals description ISO n°1 (13-14)NO, (23-24)NO_CL
Ambient air temperature for operation -25-70 °C
Terminal identifier (11-12)NC, (13-14)NO
IK degree of protection IK08 conforming to IEC 62262
Control station application control of 2-speed hoist motor
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 9.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 297.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.741 kg
