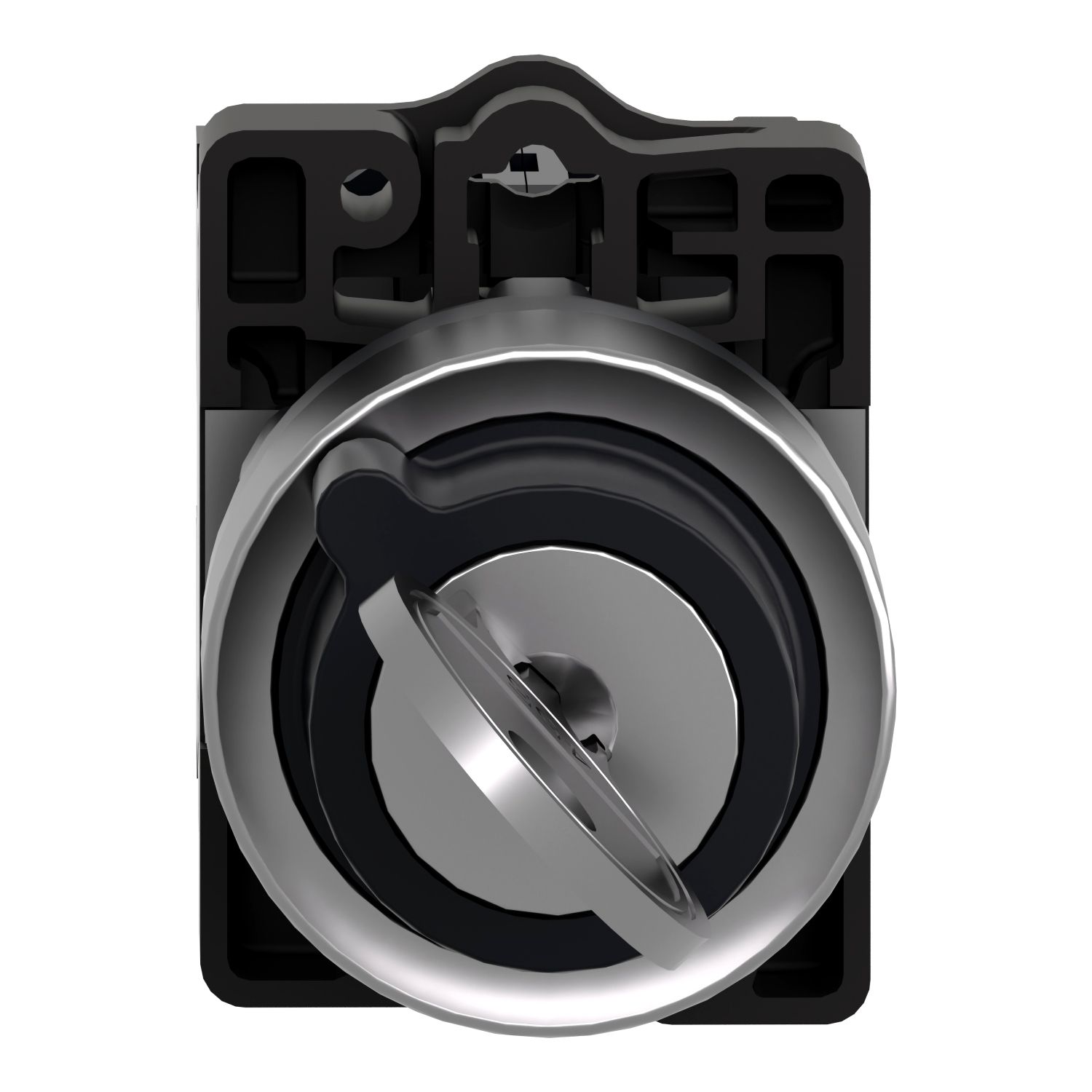

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

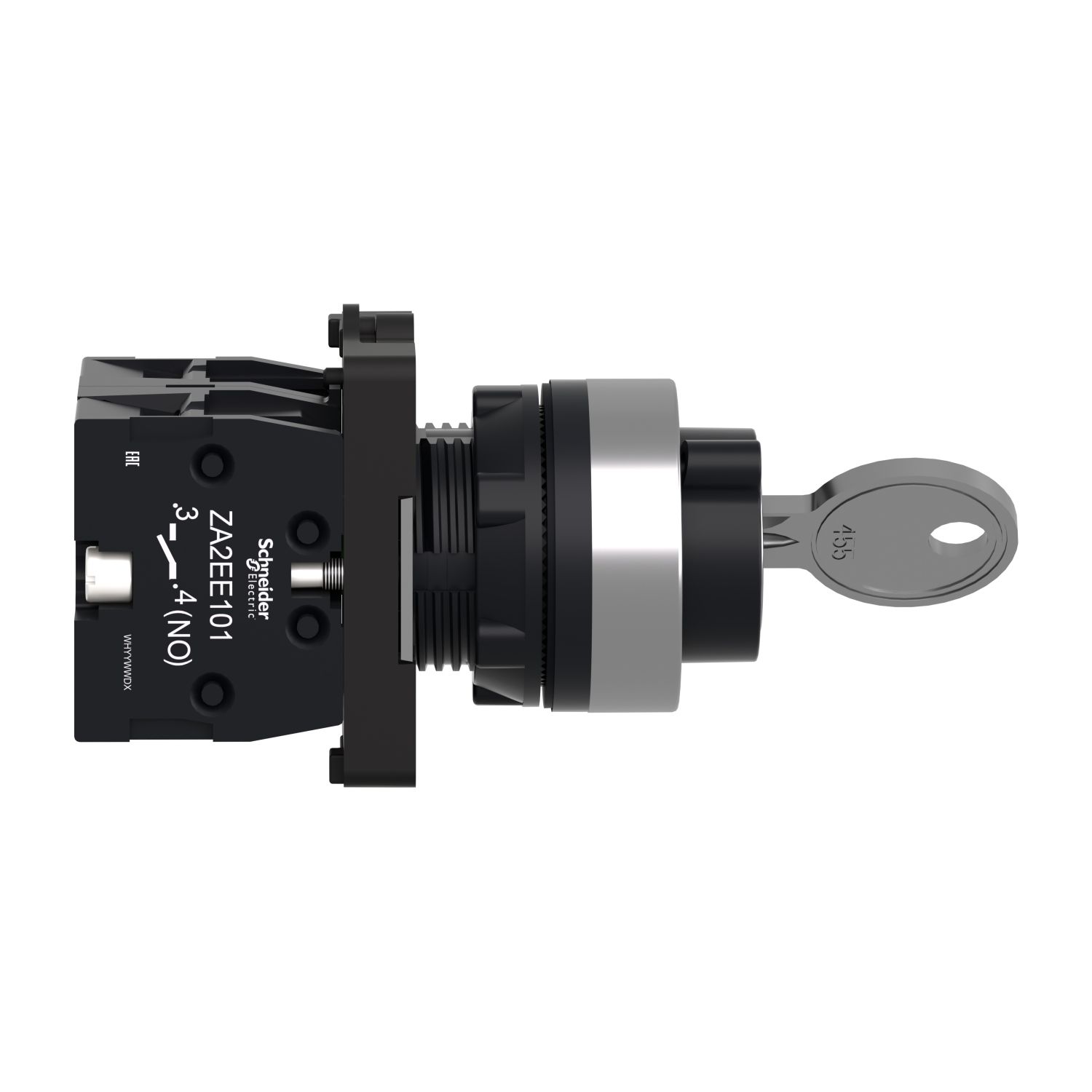

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

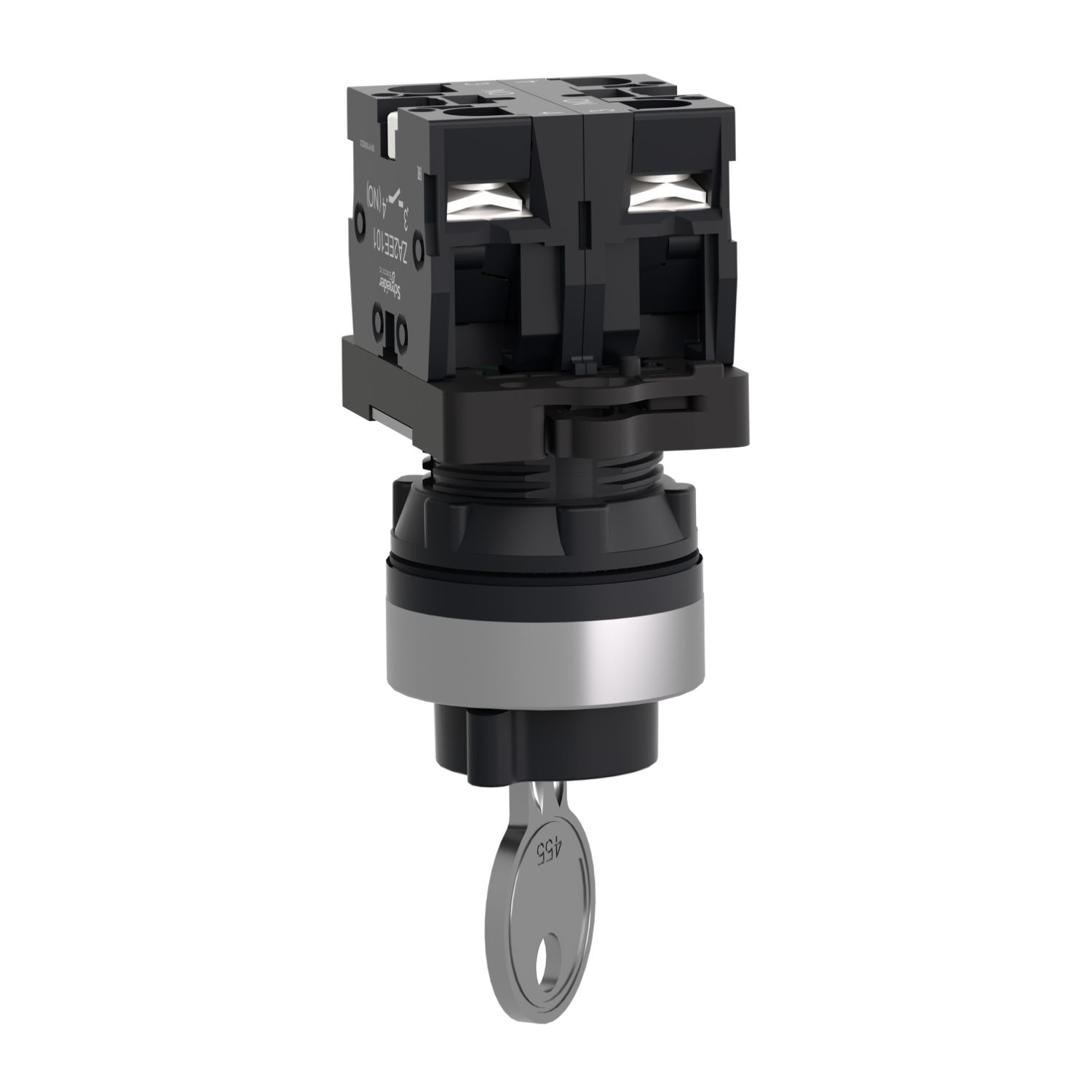

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

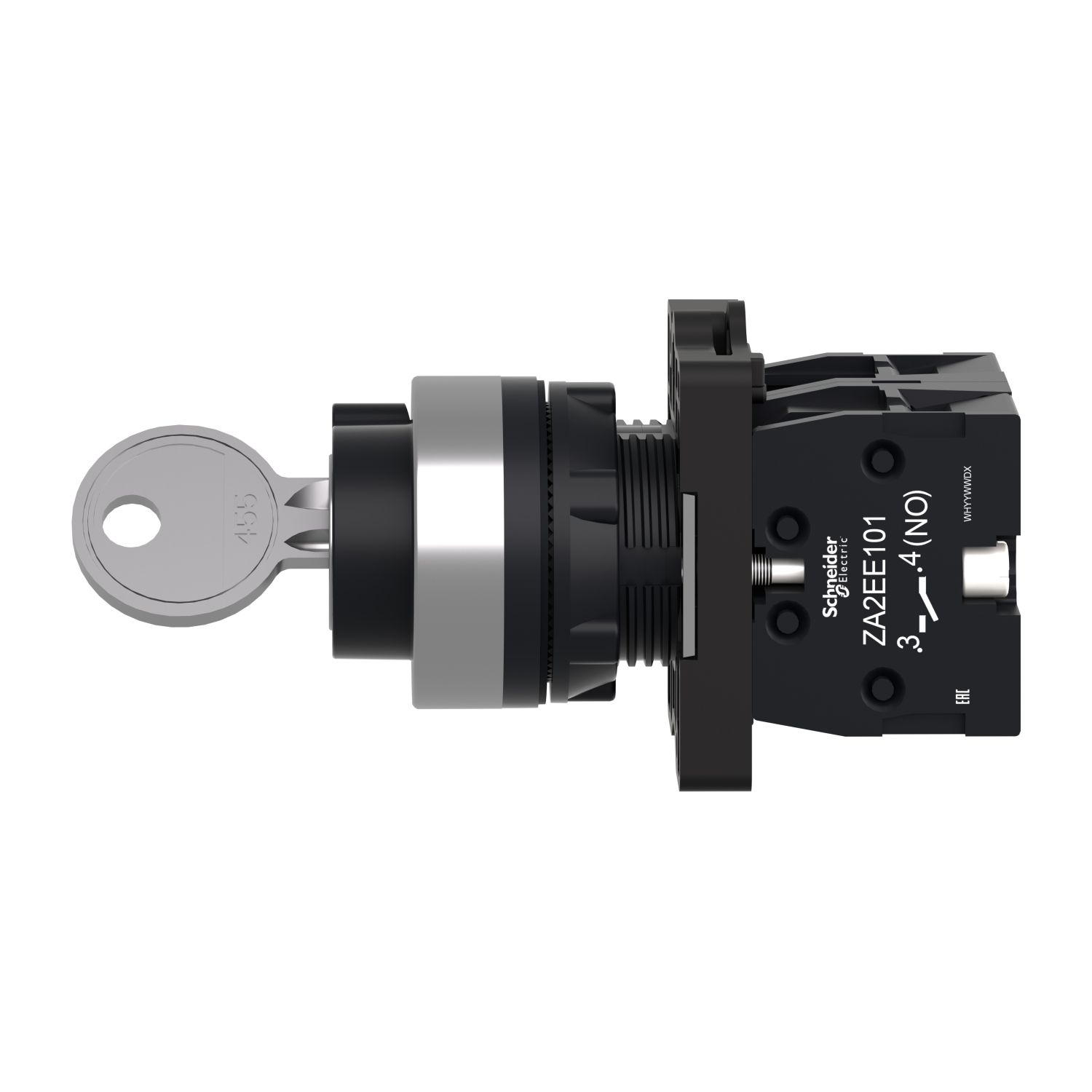

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

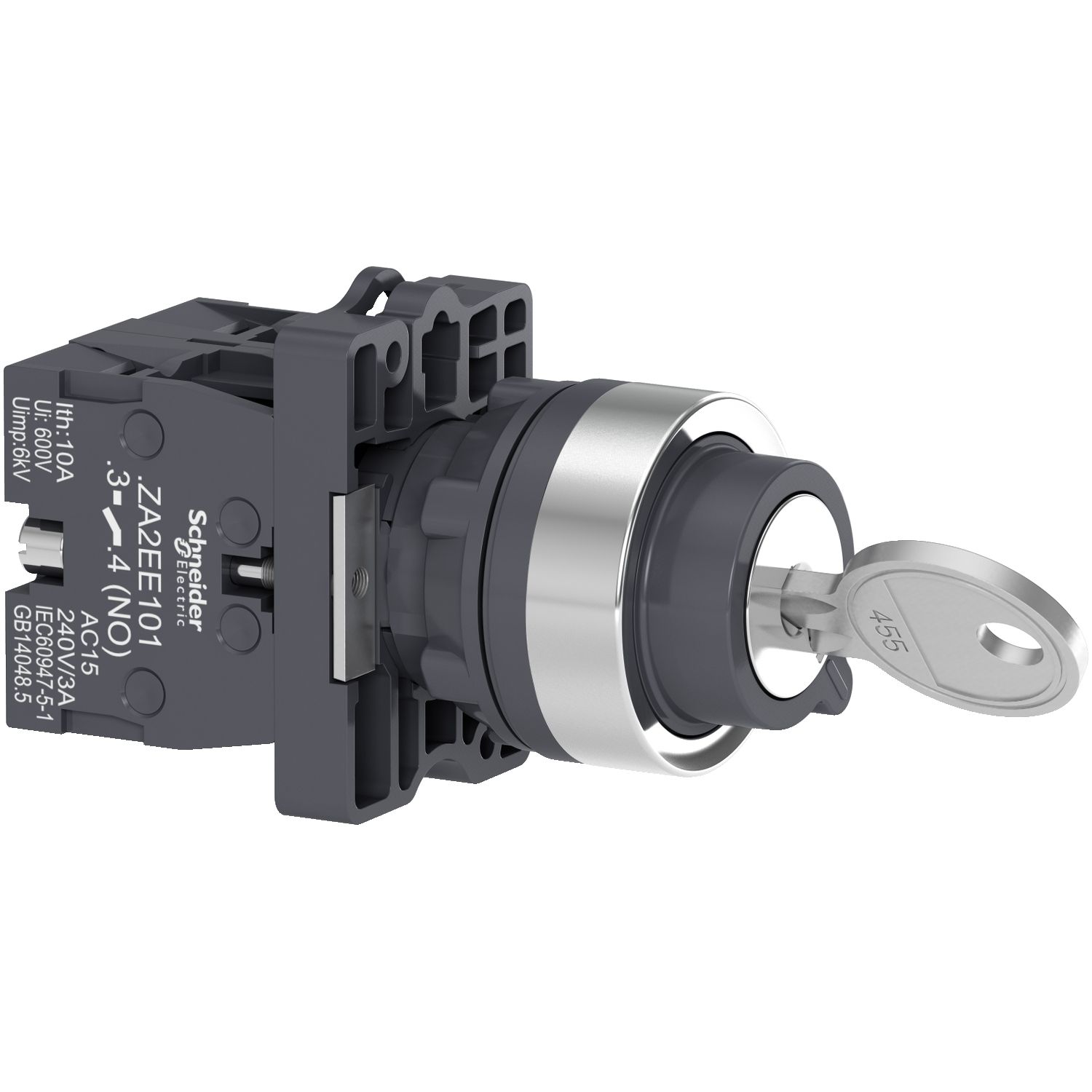

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

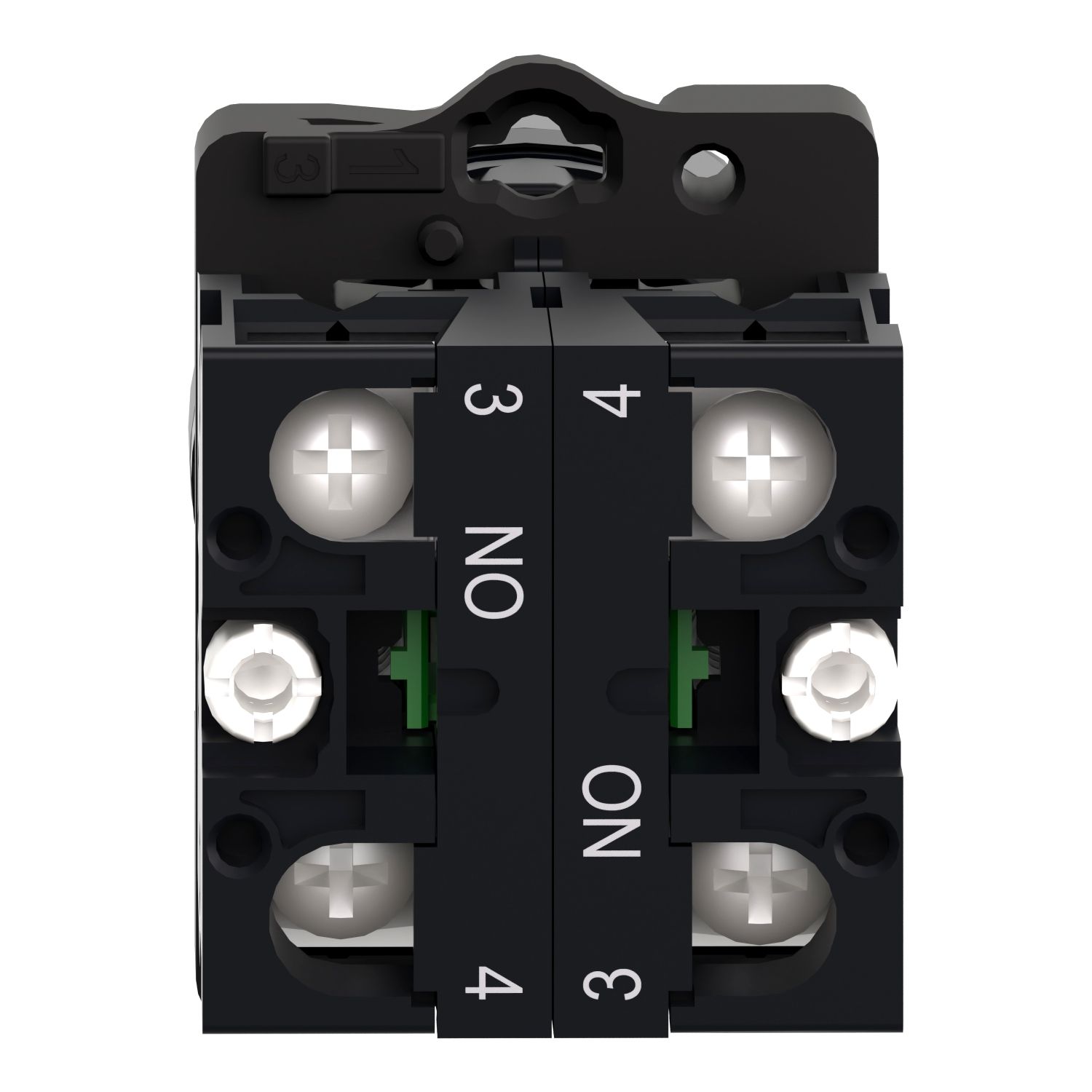

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

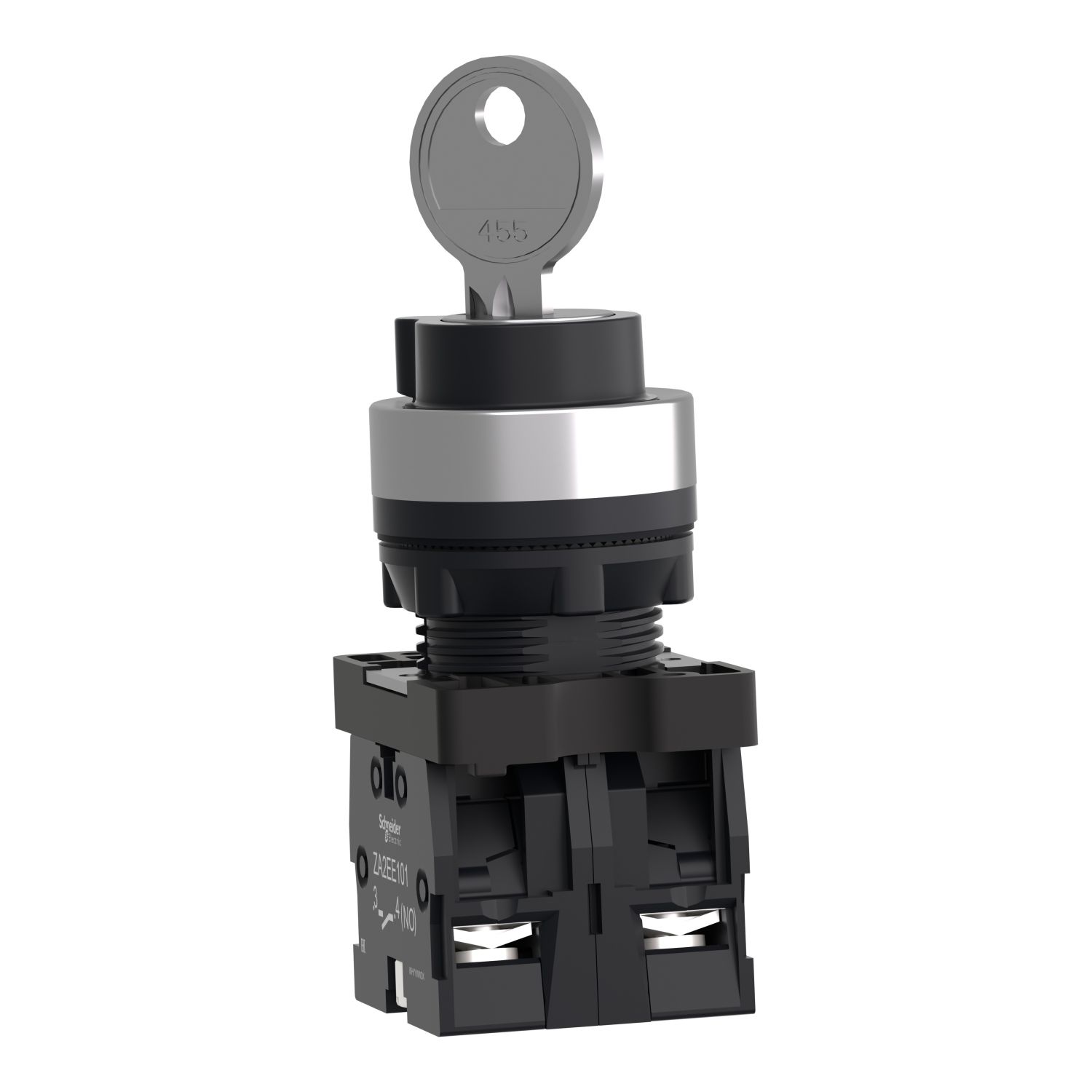

Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO
Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO
Picture of Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO
SKU:

XA2EG63

Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO

Old price: $120.12 INC GST
$30.03 INC GST
This product has a minimum quantity of 10
Available for Shipping : 11-Jan-2026
Product Selector
Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, key 455, 2 positions, spring return from right to left, 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 11-Jan-2026
Catalog
Circularity Profile
Declaration of conformity
Instruction sheet

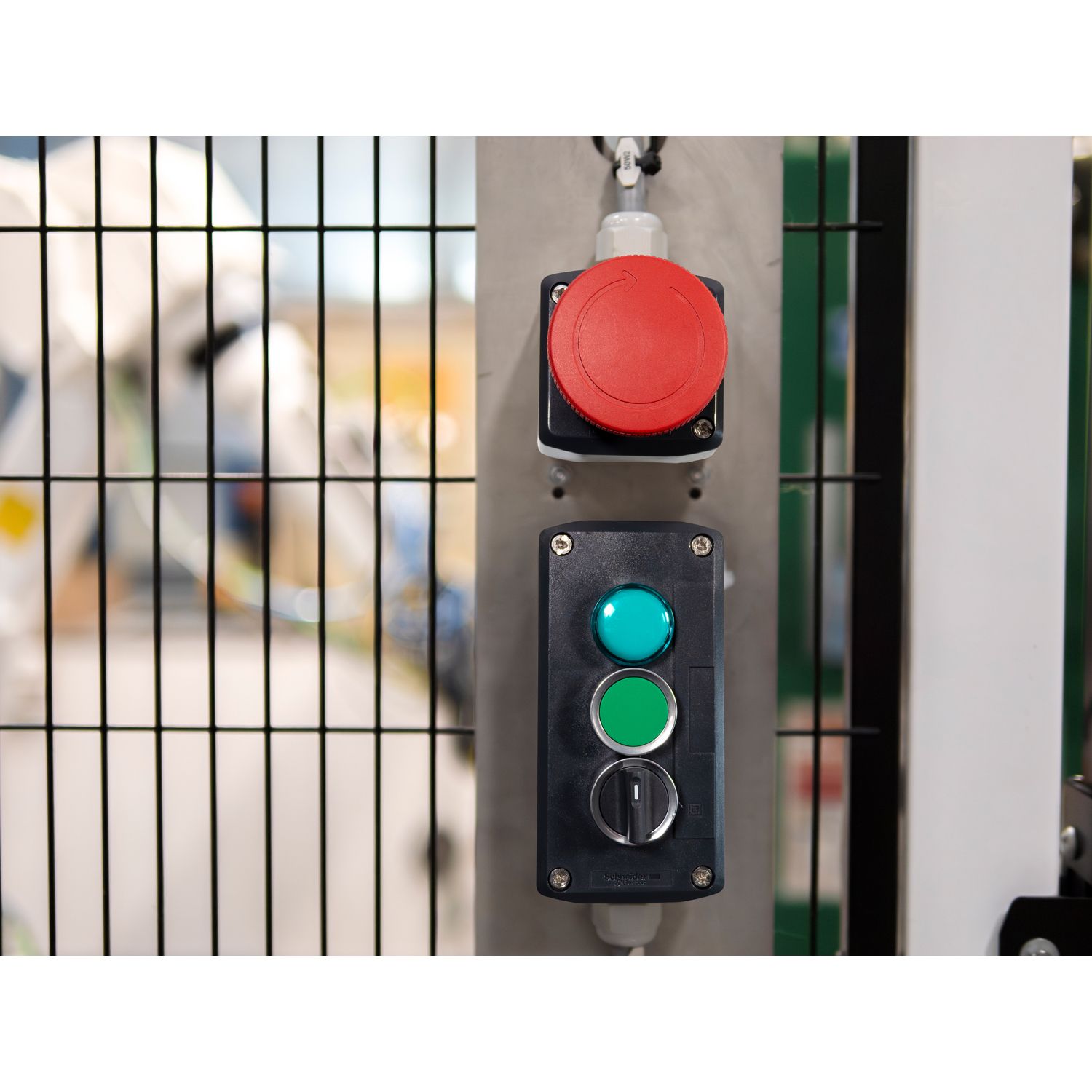

Image of product in real life situation
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This key selector switch comes with key pull out position in left position. It has 2 operating positions and operates with a stay-put mechanism. This selector switch provides a versatile interface for controlling machines. It has 2 NO contact with slow-break operation. This is a plastic switch with a metallic-look ring design bezel. It is an IP54 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XA2
Bezel material plastic
Fixing collar material plastic
Product or component type complete selector switch
Mounting diameter 22.5 mm
Range of product Easy Harmony XA2
Complementary
Tightening torque 0.8-0.8 N.m
Depth 85.7 mm
Width 30 mm
Electrical reliability λ < 10exp(-8) at 24 V
Compatibility code XA2E
Mechanical durability 100000 cycles
Operator position information 2 positions
Operator profile key switch
Contact operation slow-break
[Ie] rated operational current 0.27 A at 250 V, DC-13, Q600, 3 A at 240 V, AC-15, A600
[Ui] rated insulation voltage 600 V
Contacts type and composition 2 NO
Key withdrawal position left
Electrical durability 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.078 kg
[Ith] conventional free air thermal current 10 A
Connections - terminals Faston terminals, connection size: 6.3 mm, , clamping capacity: >= 1 x 0.5 mm², , clamping capacity: <= 1 x 2.5 mm², , clamping capacity: <= 2 x 1.5 mm²
Type of operator spring return
Fixing mode fixing nut: 2-2.4 N.m
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Short-circuit protection 10 A fuse type gL conforming to IEC 60269-1
Key number 455
Height 42 mm
Environment
Protective treatment TC
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP54 conforming to IEC 60529
Vibration resistance 10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards GB 14048.1, GB 14048.5, IEC 60947-1, IEC 60947-5-1
Ambient air temperature for operation -20-55 °C
IK degree of protection IK03 conforming to IEC 60529
Product certifications CE, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 4.0 cm
Package 1 Length 7.0 cm
Package 1 Weight 77.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.5 cm
Package 2 Width 16.0 cm
Package 2 Length 22.0 cm
Package 2 Weight 776.0 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 8.007 kg
Unit Type of Package 4 4
Number of Units in Package 4 1600
Package 4 Height 75.0 cm
Package 4 Width 80.0 cm
Package 4 Length 60.0 cm
Package 4 Weight 136.112 kg
