SKU:

XA2ED41

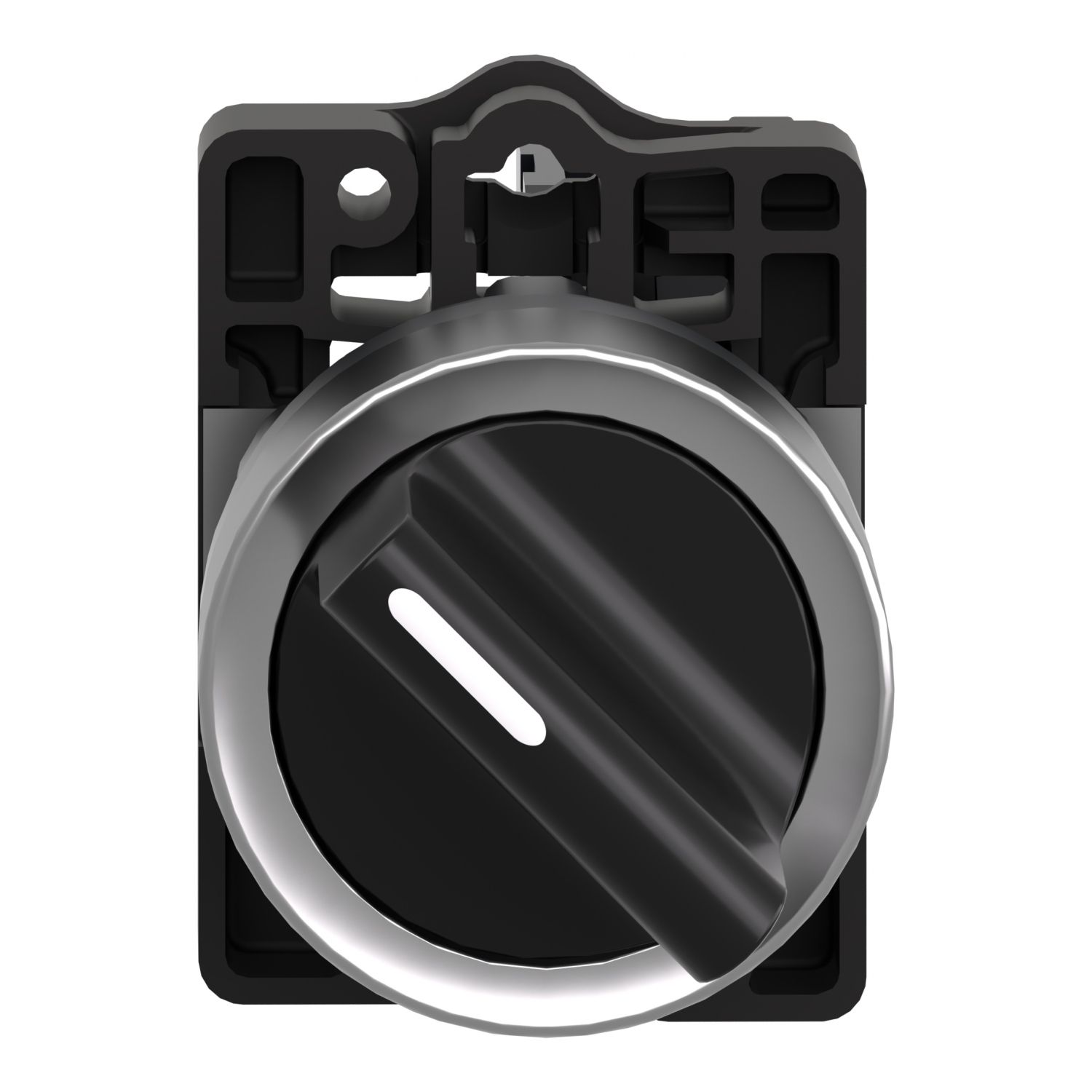

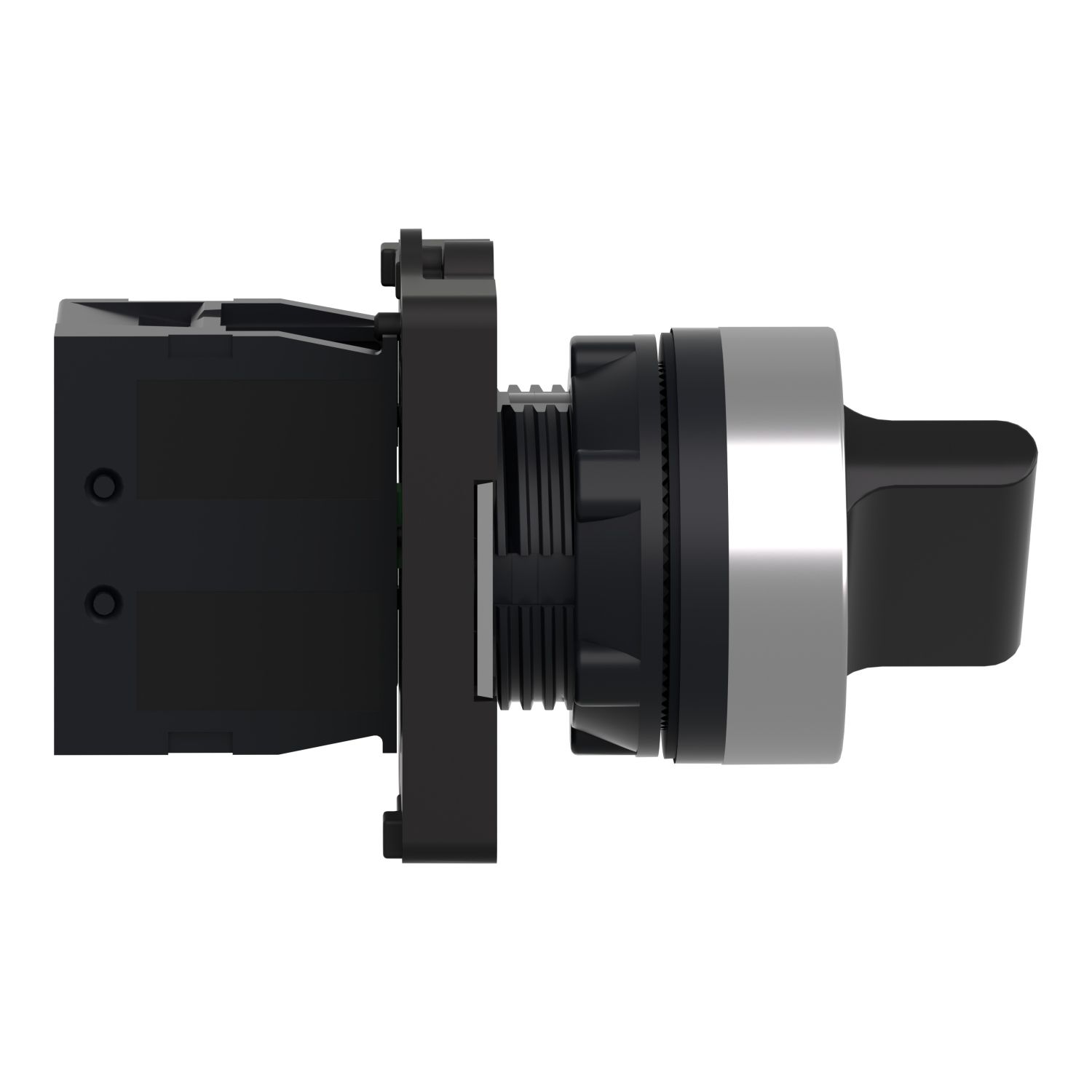

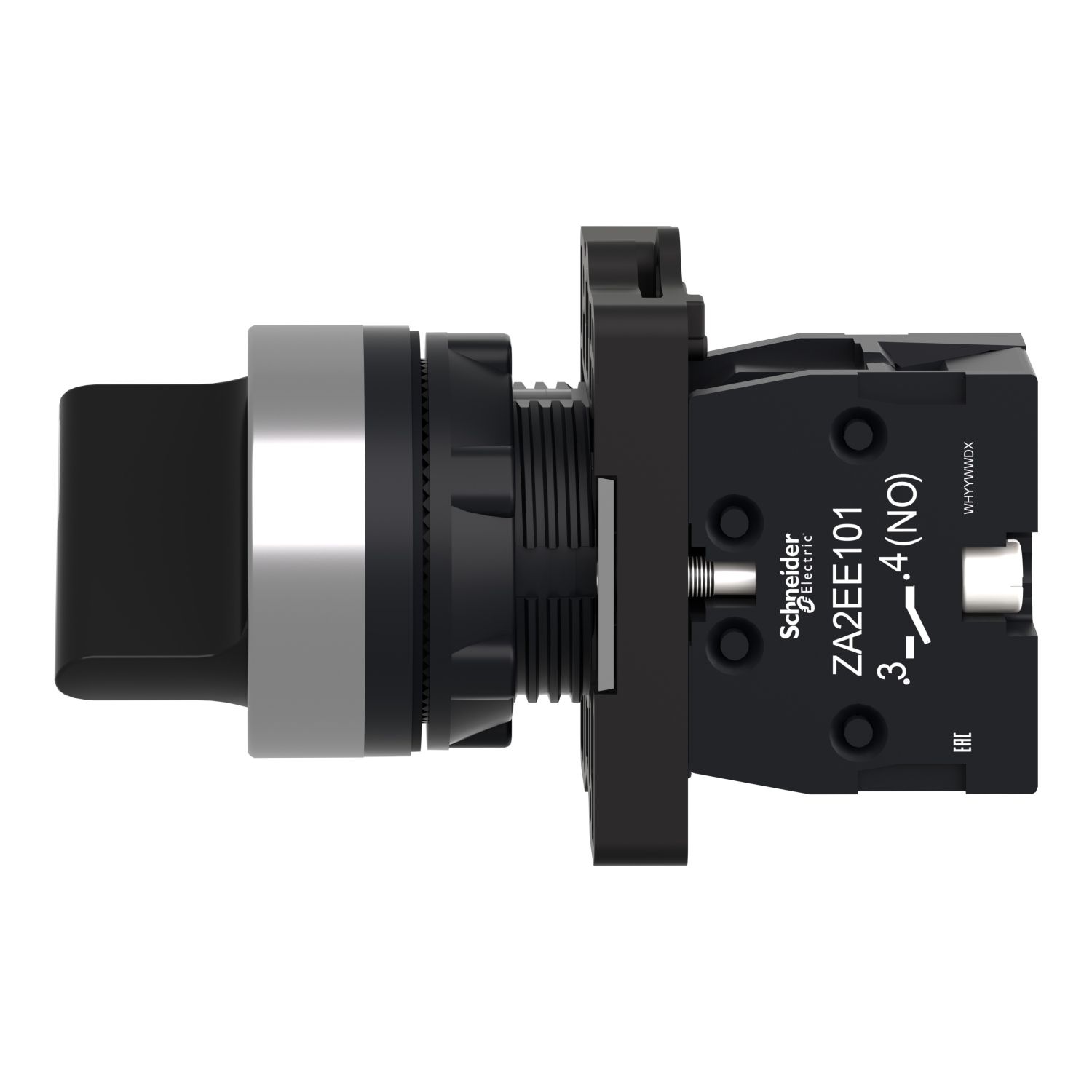

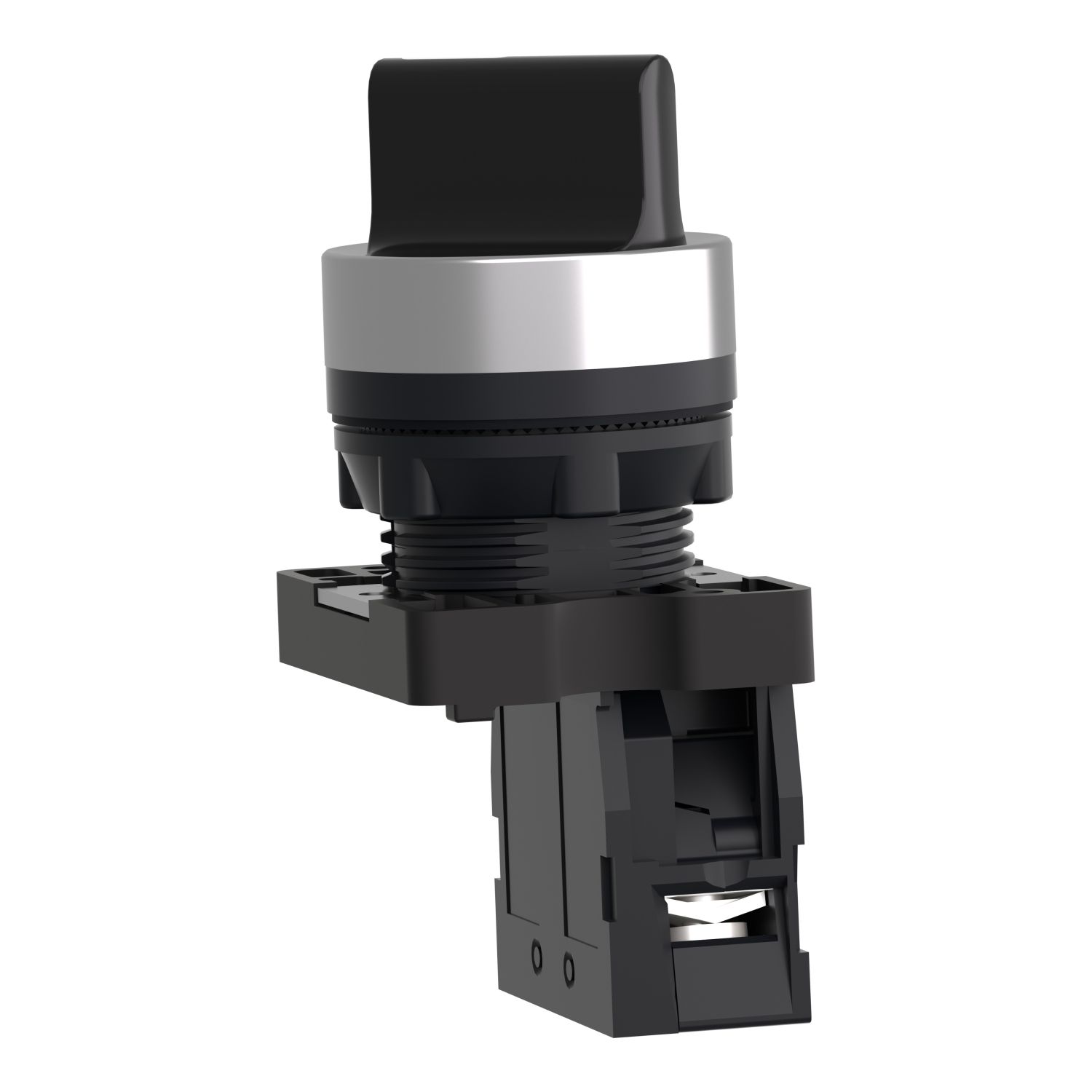

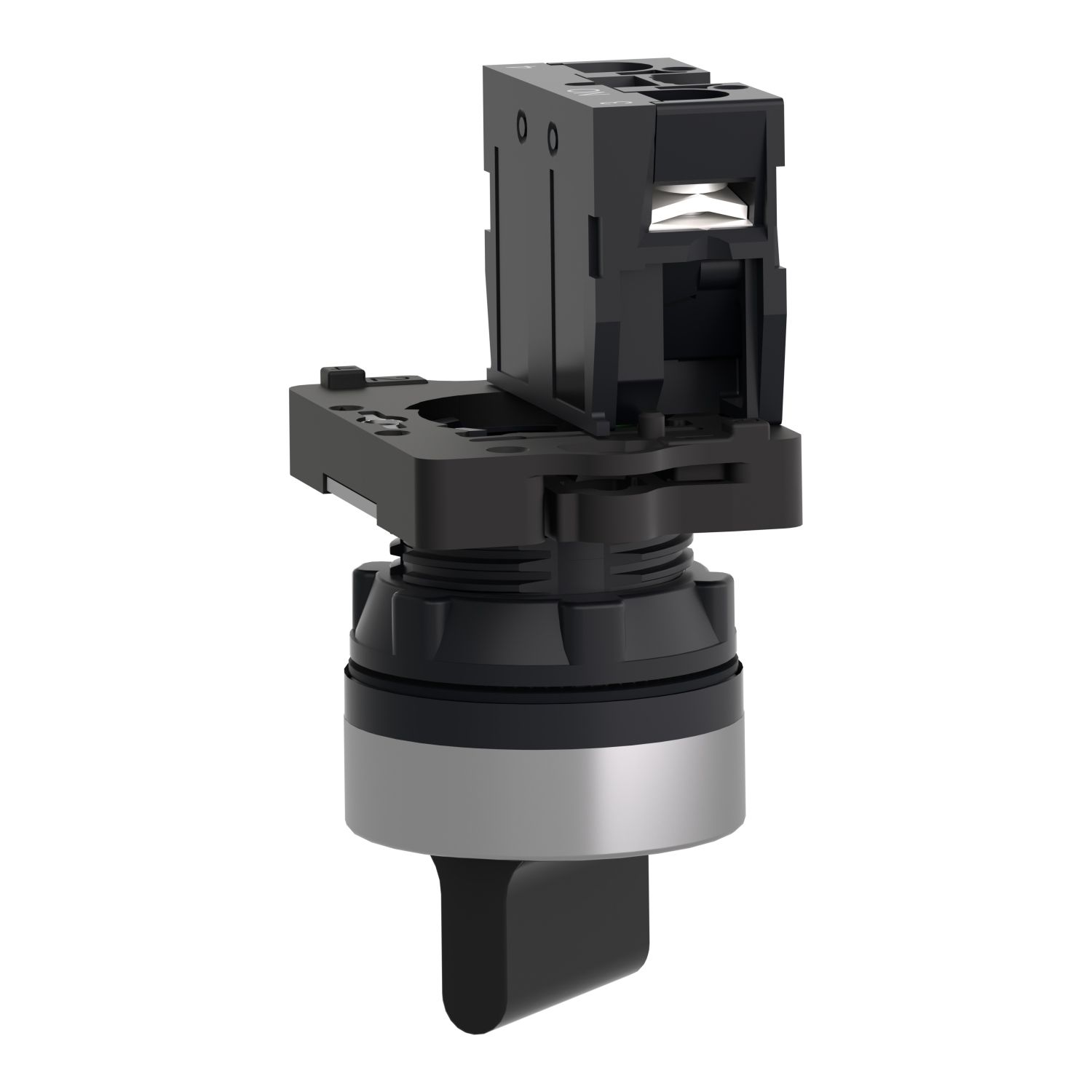

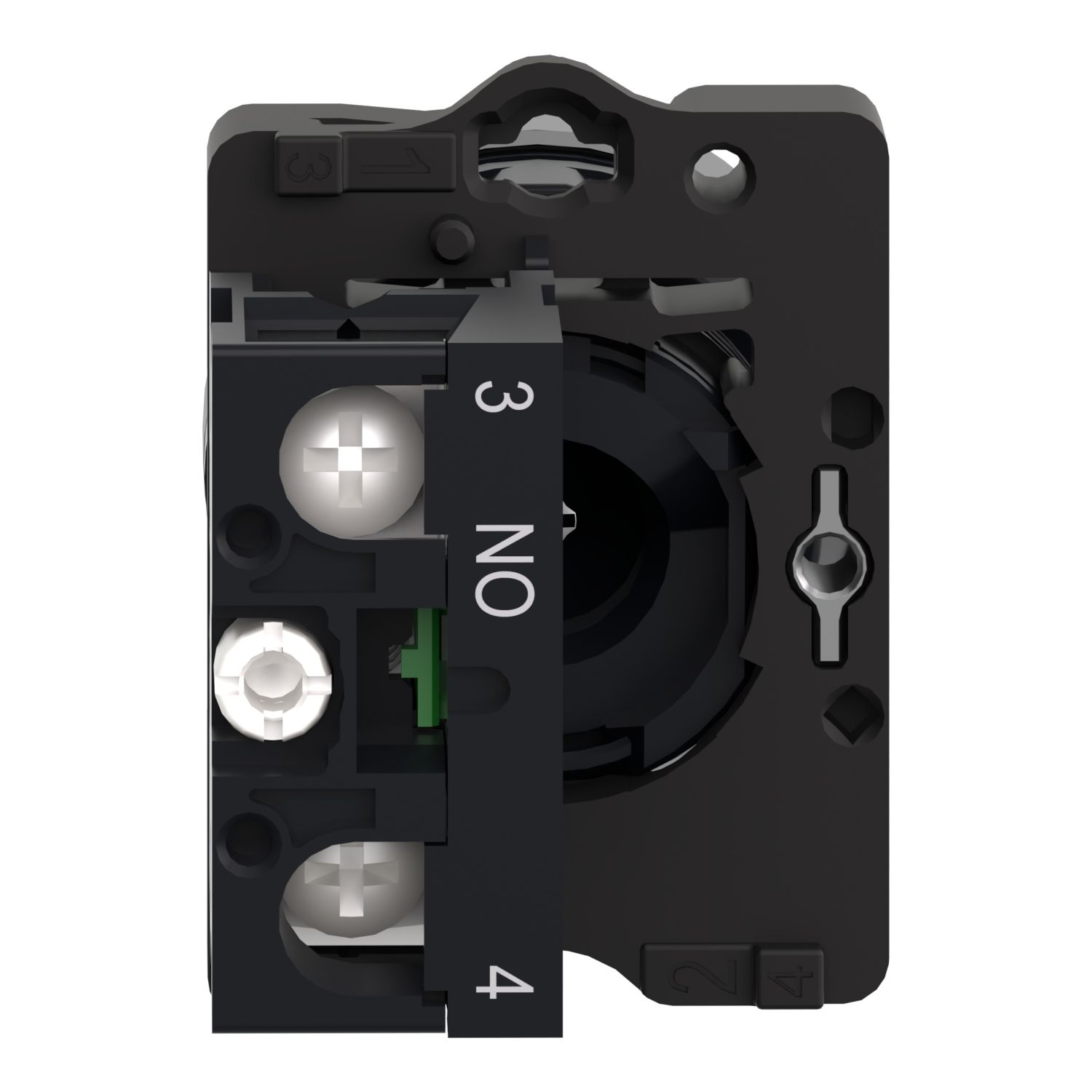

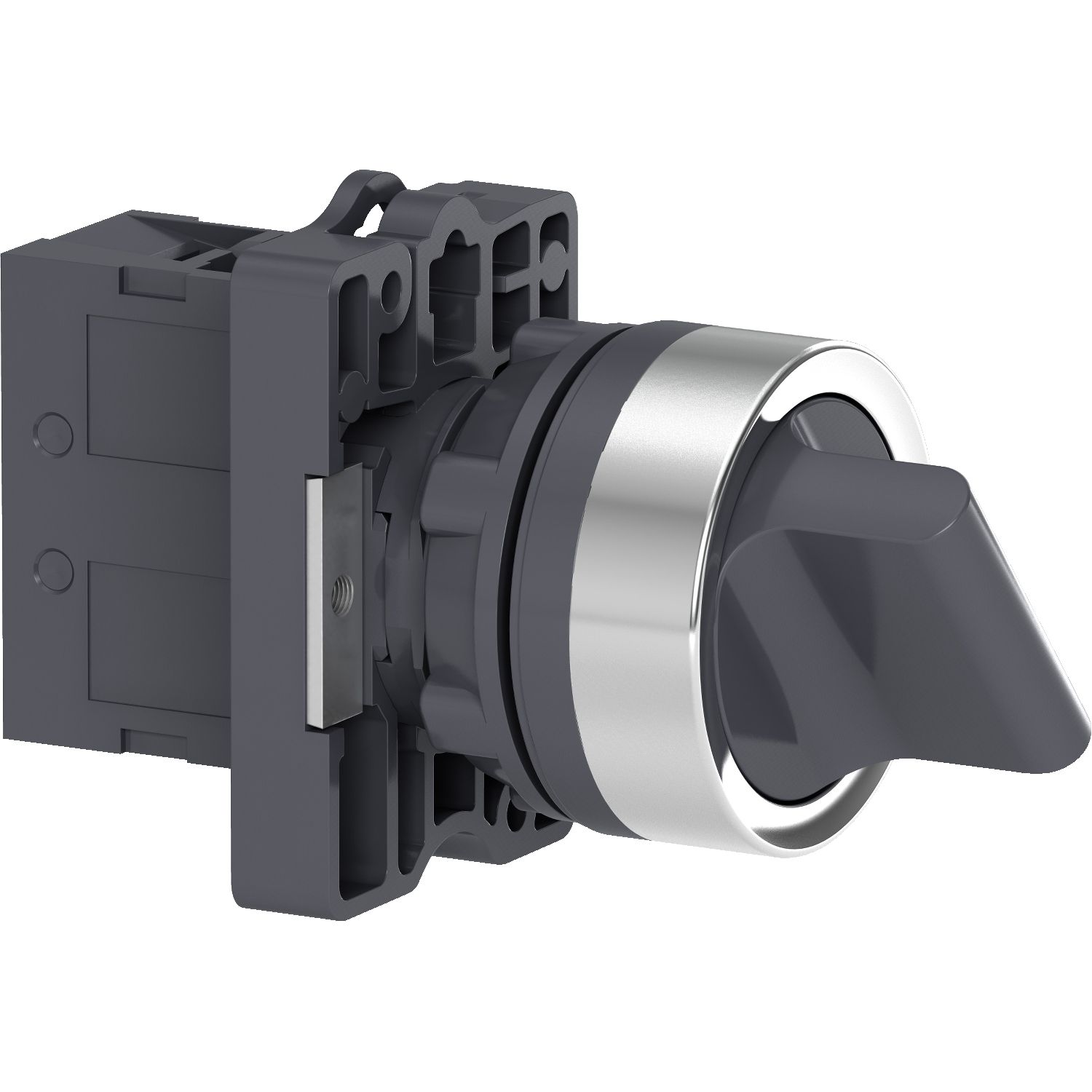

Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, 2 positions, spring return from right to left, 1NO

Old price: $86.79 INC GST
$21.70 INC GST
This product has a minimum quantity of 10
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, 2 positions, spring return from right to left, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Environmental Disclosure
Declaration of conformity
Instruction sheet

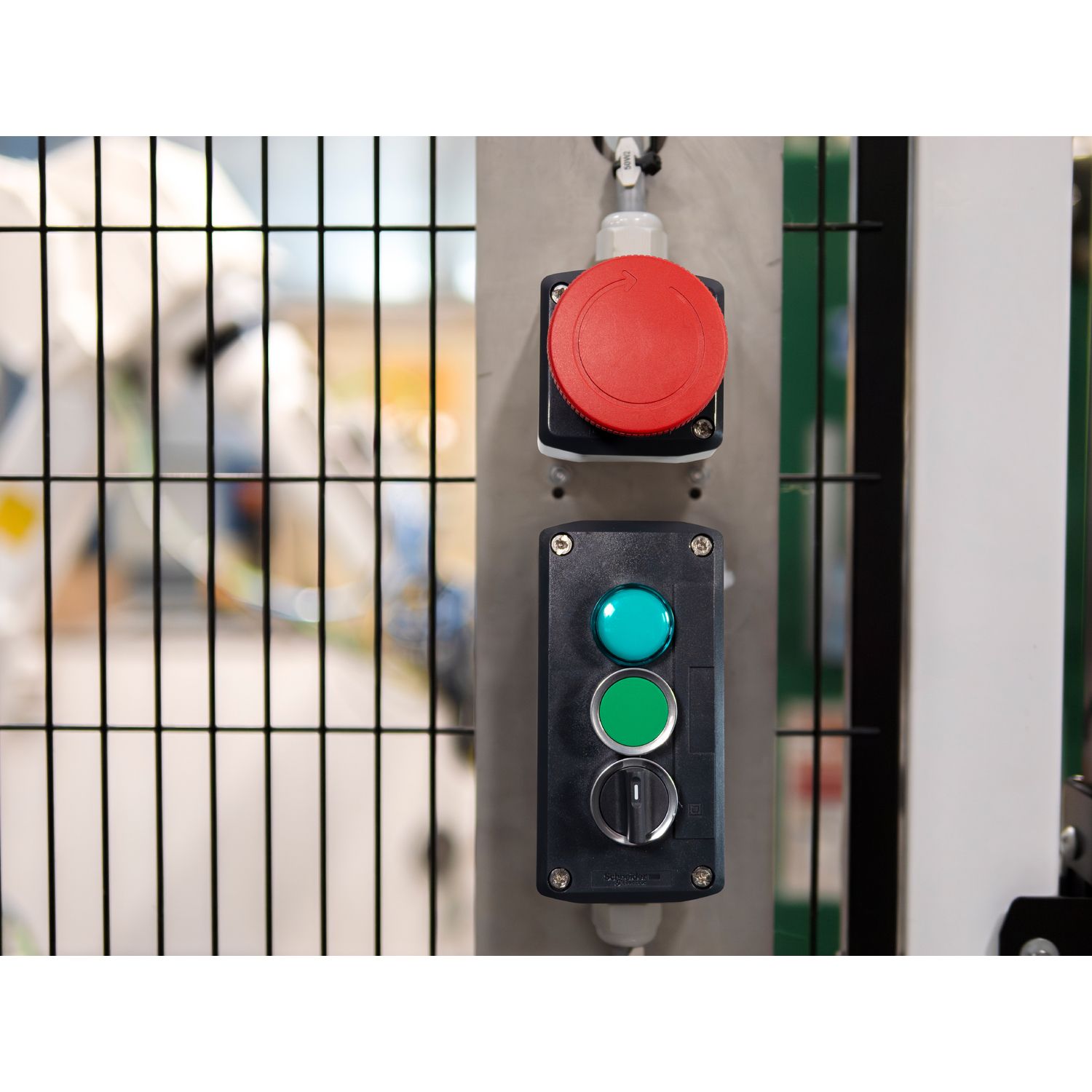

Image of product in real life situation
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This selector switch comes with a standard handle. It has 2 operating positions and operates with a spring return mechanism with spring return right position. This selector switch provides a versatile interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic switch with a metallic-look ring design bezel. It is an IP54 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XA2
Bezel material plastic
Product or component type complete selector switch
Mounting diameter 22.5 mm
Range of product Easy Harmony XA2
Complementary
Tightening torque 0.8-0.8 N.m
Depth 68.2 mm
Width 30 mm
Electrical reliability λ < 10exp(-8) at 24 V
Type of operator spring return
Compatibility code XA2E
Mechanical durability 300000 cycles
Operator position information 2 positions 90°
Operator profile black standard handle, standard handle
Contact operation slow-break
[Ie] rated operational current 0.27 A at 250 V, DC-13, Q600, 3 A at 240 V, AC-15, A600
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
Sale per indivisible quantity 1
Contacts type and composition 1 NO
Electrical durability 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
Head type standard
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.041 kg
Cap/operator or lens colour black
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A (screw-clamp terminals)
Connections - terminals Faston terminals, connection size: 6.3 mm, , clamping capacity: >= 1 x 0.5 mm², , clamping capacity: <= 1 x 2.5 mm², , clamping capacity: <= 2 x 1.5 mm²
Fixing mode fixing nut: 2-2.4 N.m
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Short-circuit protection 10 A fuse type gL conforming to IEC 60269-1
Height 42 mm
Environment
Protective treatment TC
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-5-1, GB 14048.1, GB 14048.5, IEC 60947-1
Ambient air temperature for operation -25-55 °C
IK degree of protection IK06 conforming to IEC 60529
Product certifications CCC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 11.000 cm
Package 1 Length 16.000 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.000 cm
Package 2 Width 5.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 203.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.255 kg

Related products

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
View Detail

Anti rotation plate for 22mm head, Harmony XB5, metal

ZB5AZ902
$15.02 INC GST $19.25 INC GST
View Detail
