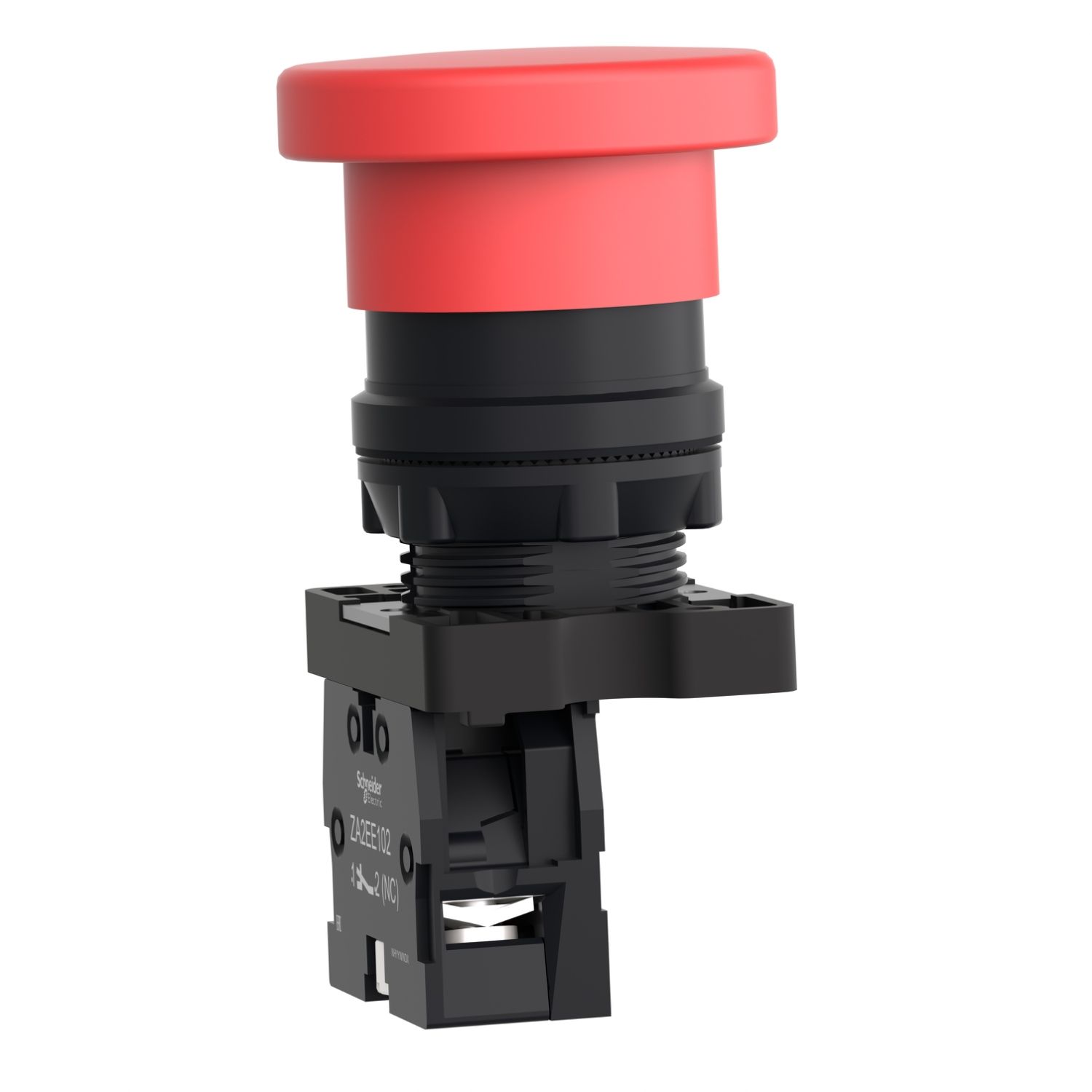

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

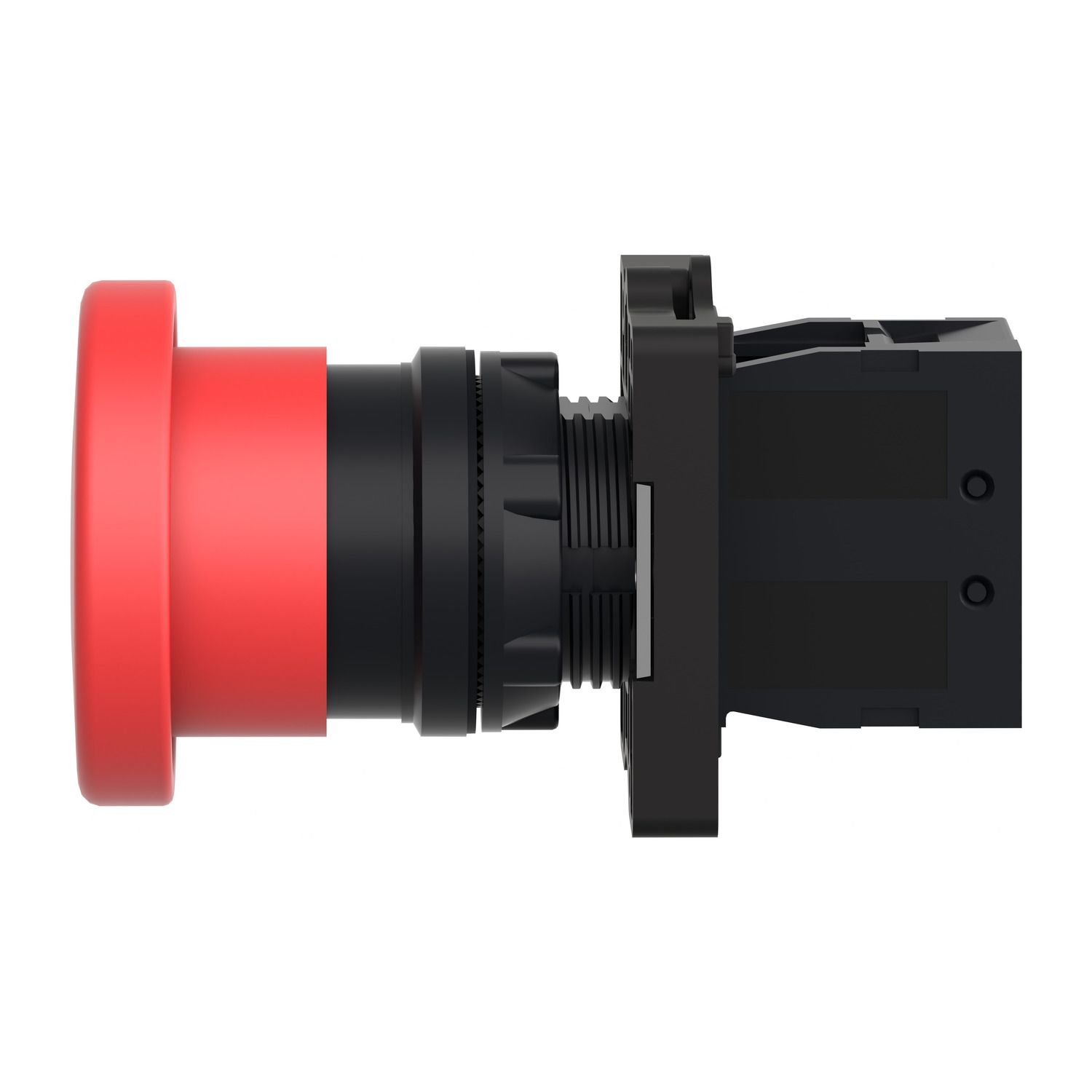

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

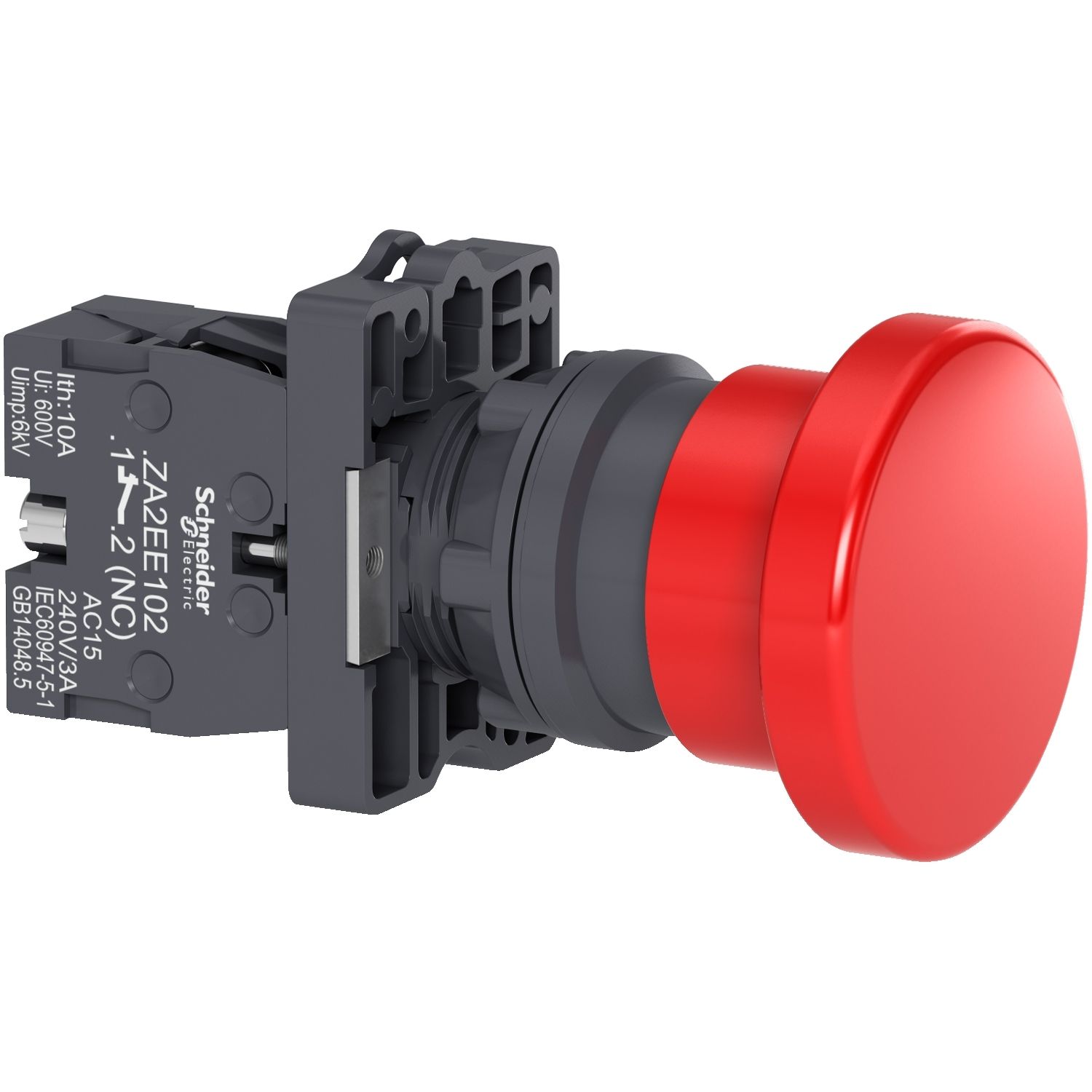

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

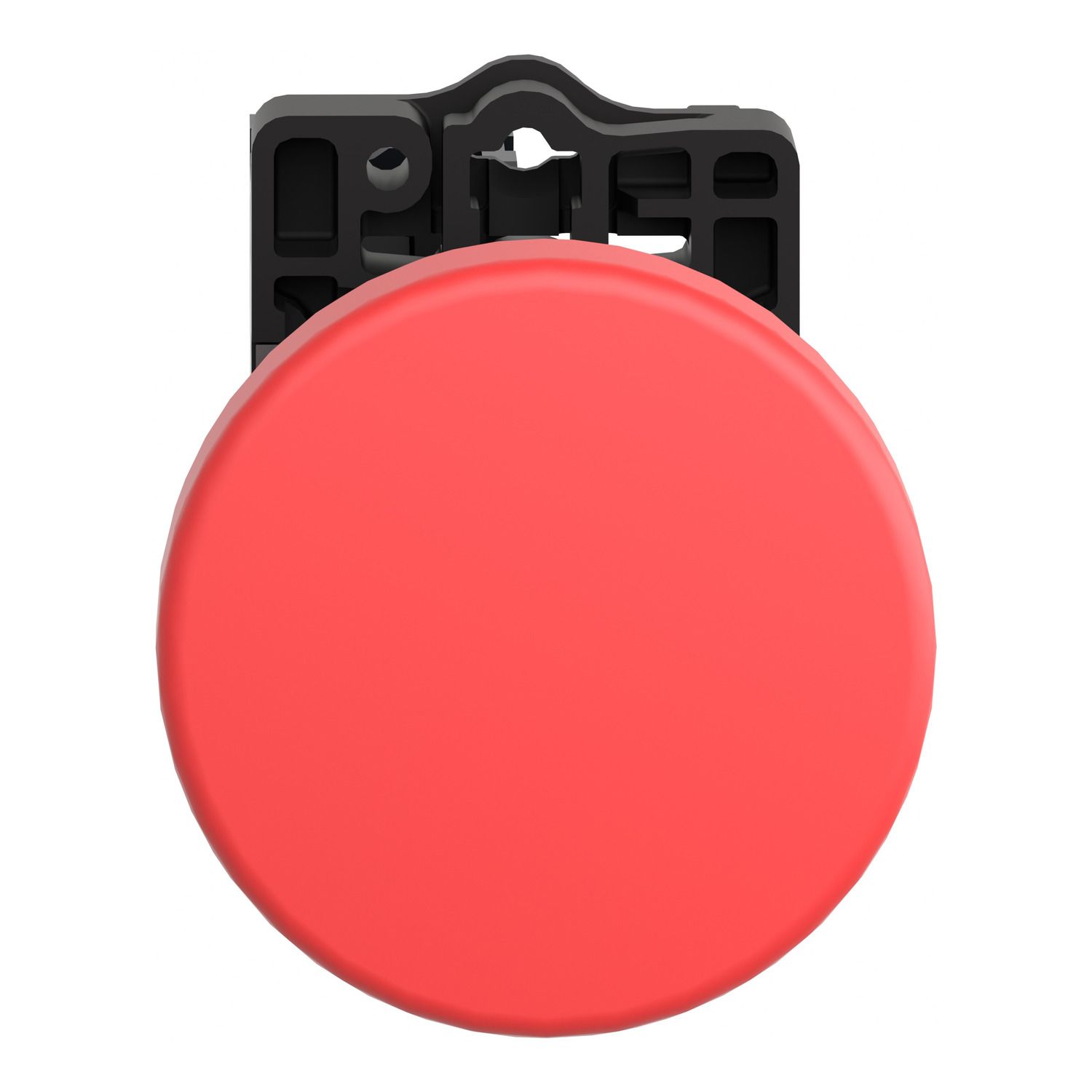

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

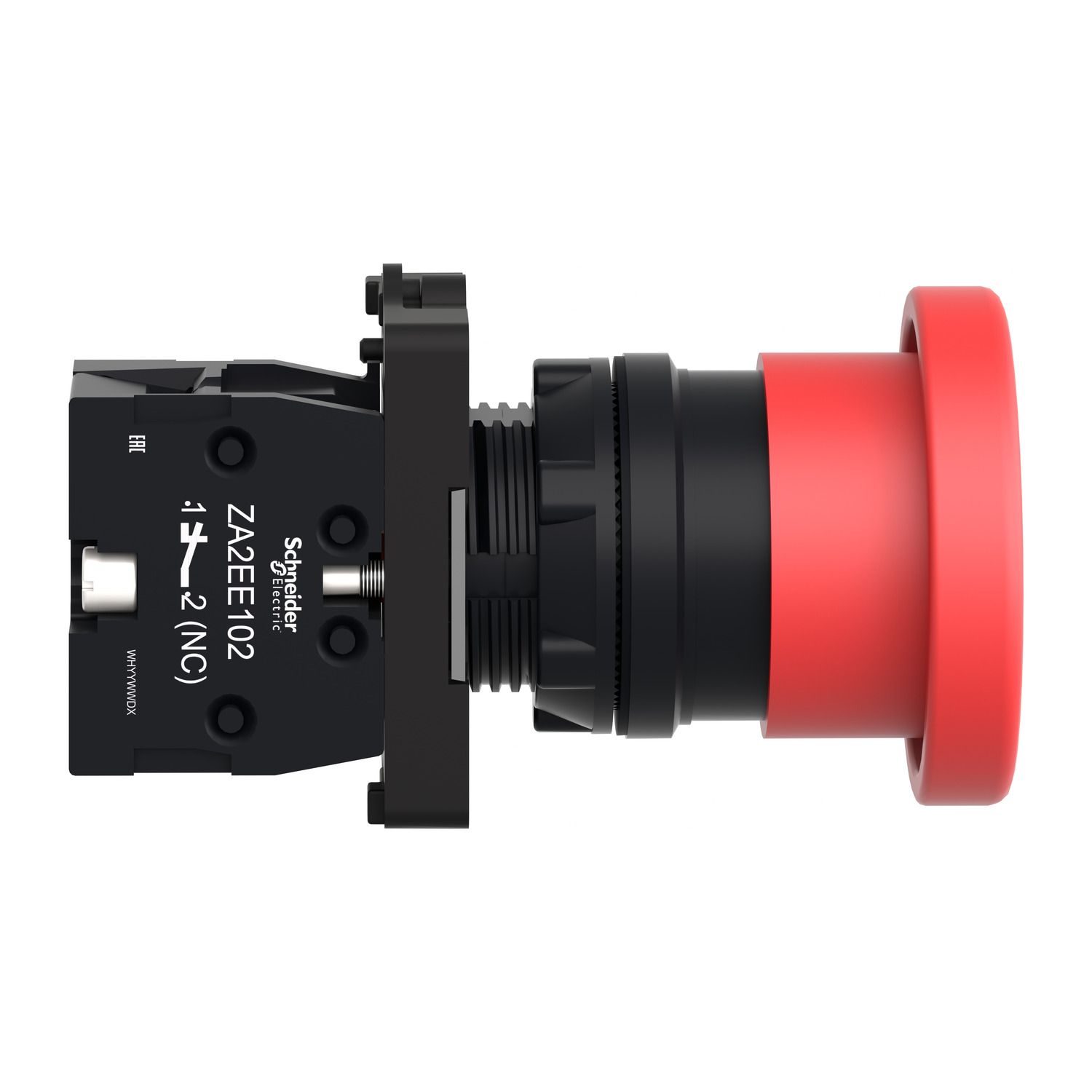

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC
Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

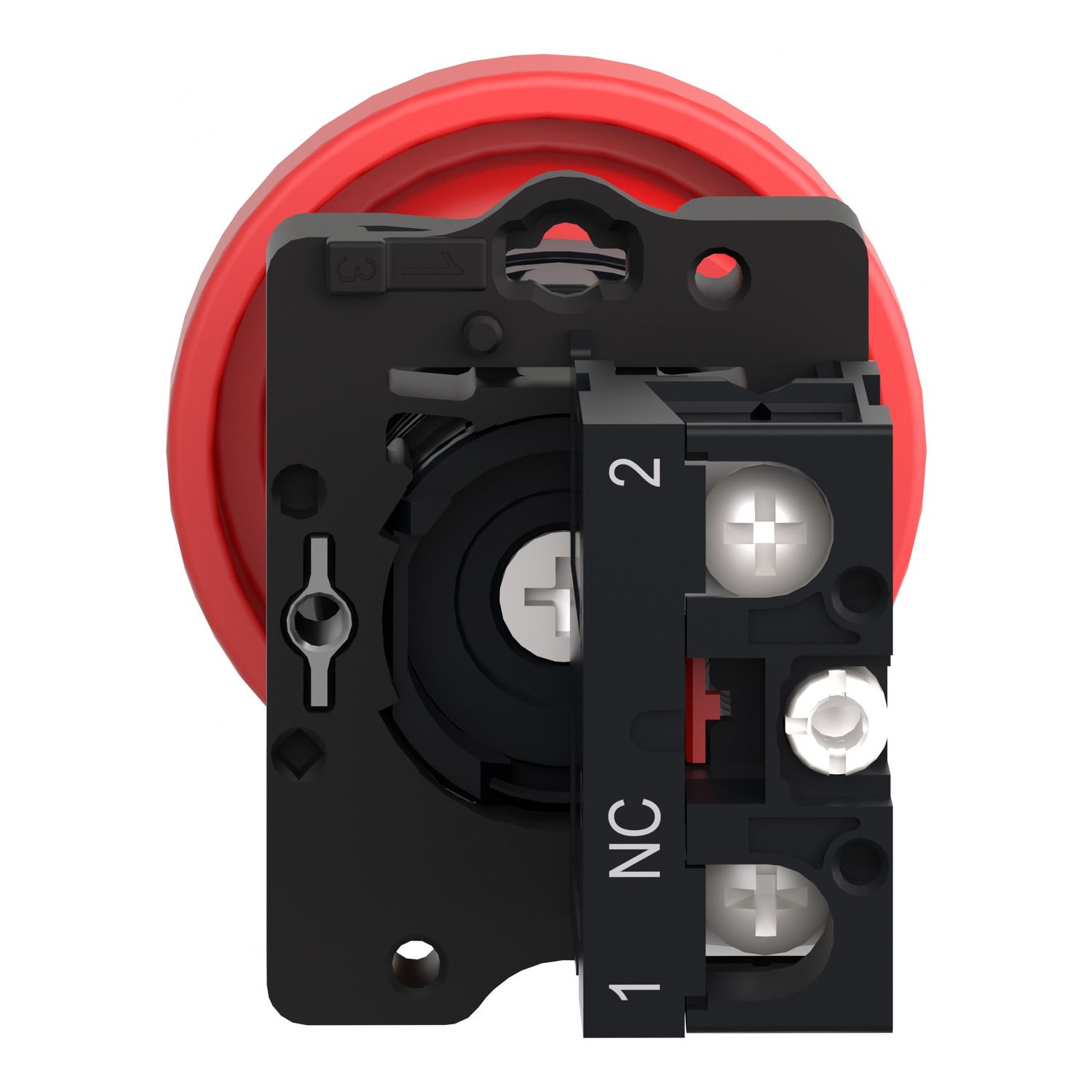

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

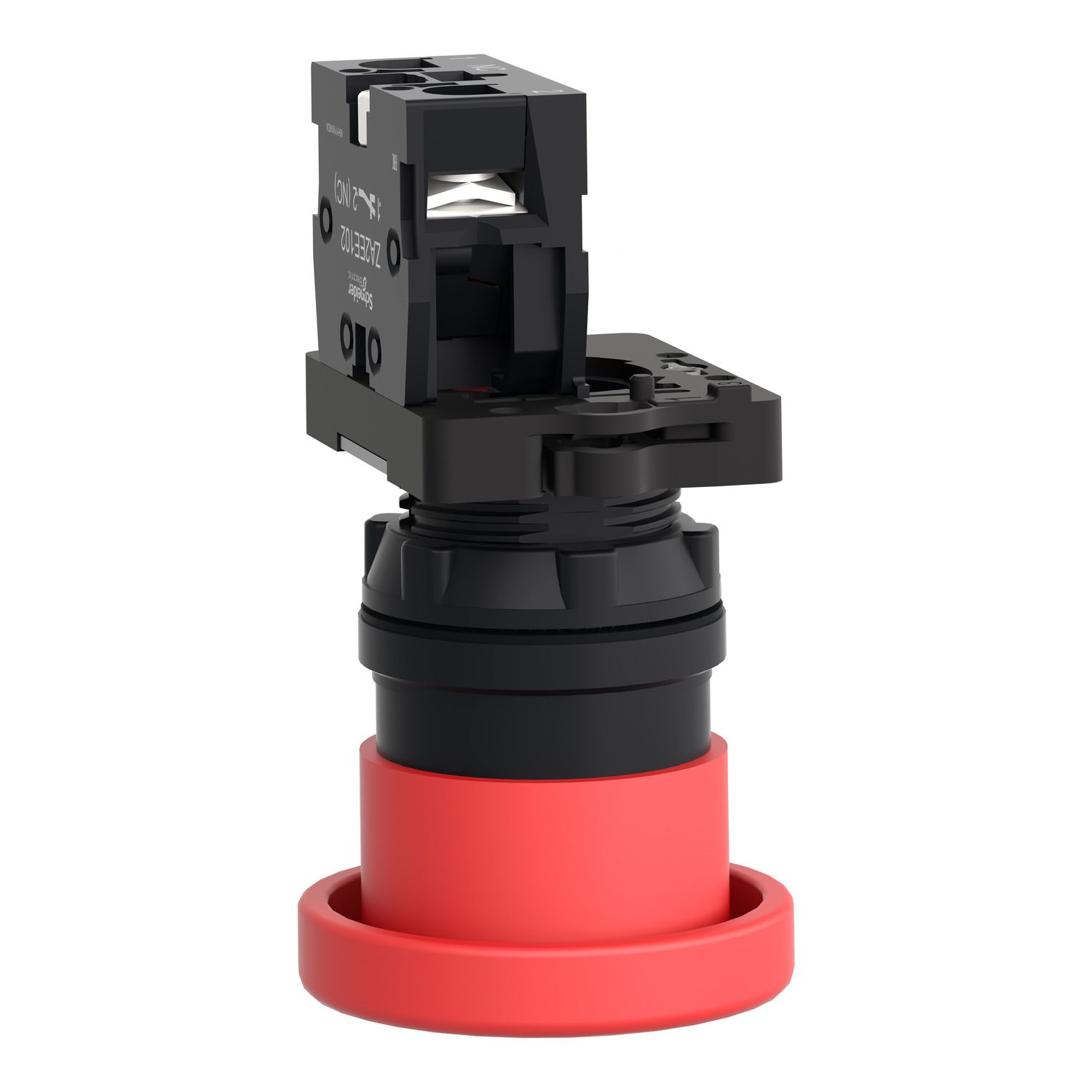

Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC
Picture of Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC
SKU:

XA2EC42

Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC

Old price: $80.19 INC GST
$20.05 INC GST
This product has a minimum quantity of 10
Available for Shipping : 10-Dec-2025
Product Selector
Complete push button, Easy Harmony XA2, plastic, red mushroom head 40mm, 22mm, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet

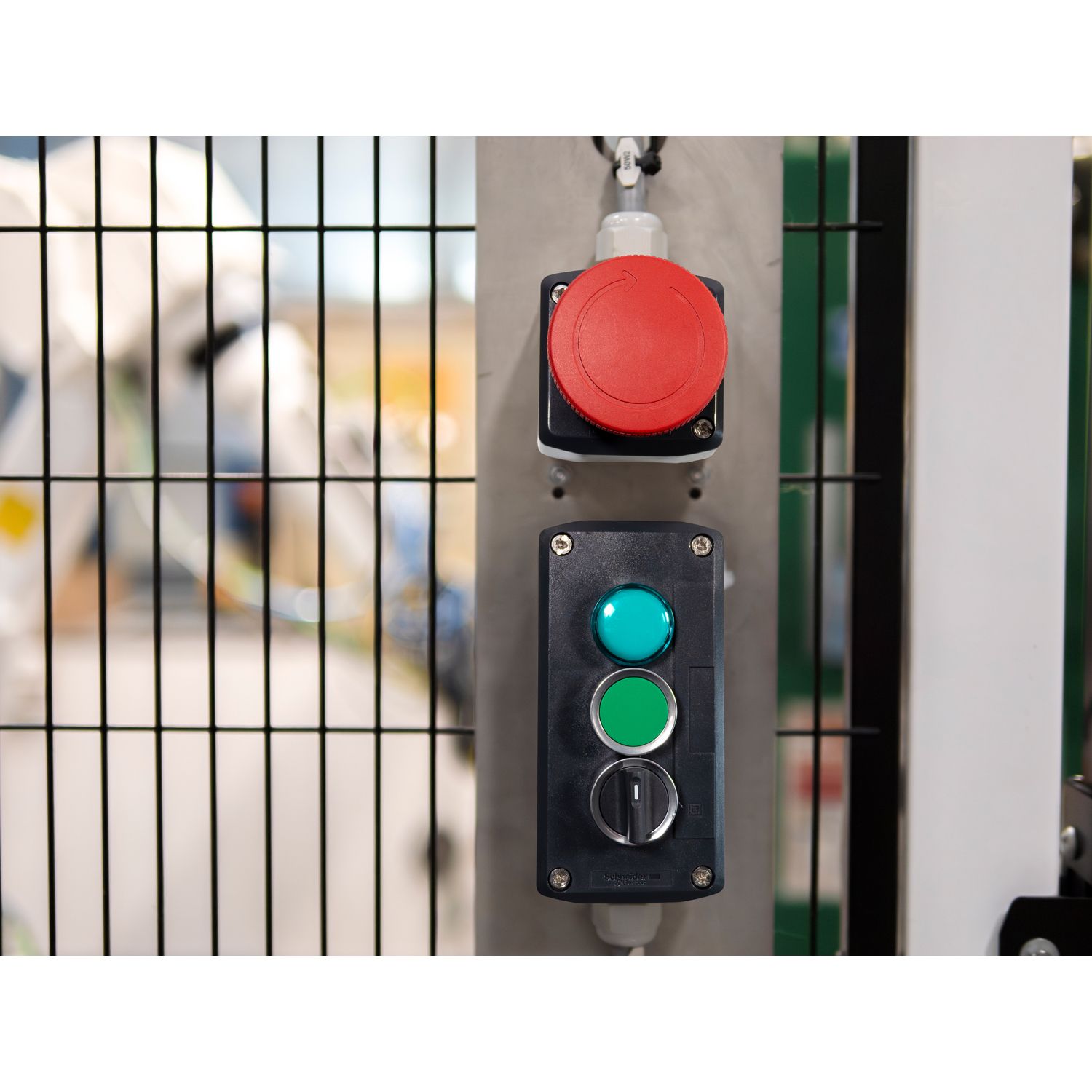

Image of product in real life situation
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular red pushbutton with mushroom head. This pushbutton operates with a spring return / impulse mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with slow-break operation. This is a plastic pushbutton. It has a 40mm diameter mushroom head. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XA2
Bezel material plastic
Fixing collar material plastic
Product or component type complete push-button
Range of product Easy Harmony XA2
Complementary
Protective treatment TC
Tightening torque 0.8-0.8 N.m
Depth 74.2 mm
Width 42 mm
Electrical reliability λ < 10exp(-8) at 24 V
Operating position any position
Type of operator spring return
Compatibility code XA2E
Mechanical durability 1500000 cycles
Operator profile green mushroom Ø 40 mm
Contact operation slow-break
[Ie] rated operational current 0.27 A at 250 V, DC-13, Q600, 3 A at 240 V, AC-15, A600
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
Sale per indivisible quantity 1
Contacts type and composition 1 NC
Connections - terminals Faston terminals, connection size: 6.3 mm, screw clamp terminal, >= 1 x 0.5 mm², screw clamp terminal, <= 1 x 2.5 mm², screw clamp terminal, <= 2 x 1.5 mm²
Electrical durability 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.052 kg
Cap/operator or lens colour red
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A
Mounting diameter 22.5 mm
Fixing mode fixing nut: 2-2.4 N.m
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Device mounting fixing hole
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
Height 30 mm
Environment
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-5-1, GB 14048.1, GB 14048.5, IEC 60947-1
Ambient air temperature for operation -25-55 °C
IK degree of protection IK03 conforming to IEC 60529
Product certifications CCC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 4 cm
Package 1 Length 7.5 cm
Package 1 Weight 66 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.67 kg
Unit Type of Package 3 3
Number of Units in Package 3 1400
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 90 cm
Package 3 Weight 92.6 kg
