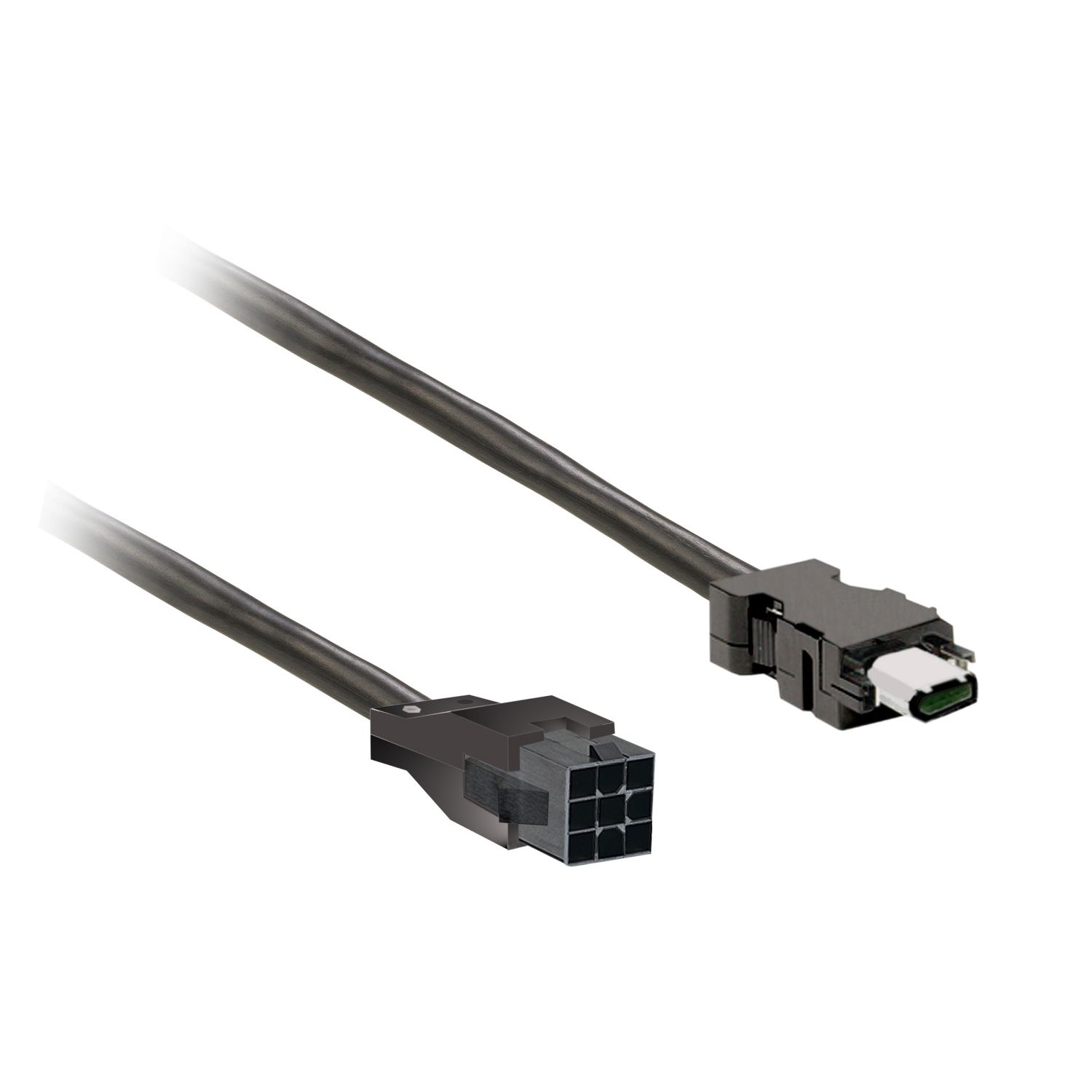

Picture of encoder cable 5m shielded, leads connection for BCH2.B/.D/.F, CN2 plug
SKU:

VW3M8D1AR50

encoder cable 5m shielded, leads connection for BCH2.B/.D/.F, CN2 plug

$246.84 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
encoder cable 5m shielded, leads connection for BCH2.B/.D/.F, CN2 plug
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded encoder cordset for BCH2 motors with SinCos single turn encoder. It is equipped with one connector firewire 6-pin (servo drive side) and one connector Molex 9-pin (servo motor side). The encoder cable transmits signals between position sensors of servo motors and their control systems. The cable composition is 5x (2 x 0.13squaremm). It measures 5m long and weighs 1.2kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2MBA53, /MB013, /LD023, /LD043, /LF043, /HF073, /LF073. It plugs into the encoder connector of LXM28 drives and BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination from servo motor to servo drive
Device application for BCH2 with SinCos single turn encoder
Accessory / separate part type encoder cable
Cable composition 5 x (2 x 0.13 mm²)
Product or component type encoder cable
Accessory / separate part category connection accessory
Range of product Lexium
Complementary
Range compatibility Lexium 28
Electrical connection 1 connector Molex 9 pin(s), 1 connector Firewire 6 pin(s)
Net weight 1.2 kg
Cable length 5 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.900 cm
Package 1 Width 27.000 cm
Package 1 Length 28.600 cm
Package 1 Weight 226.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.372 kg
