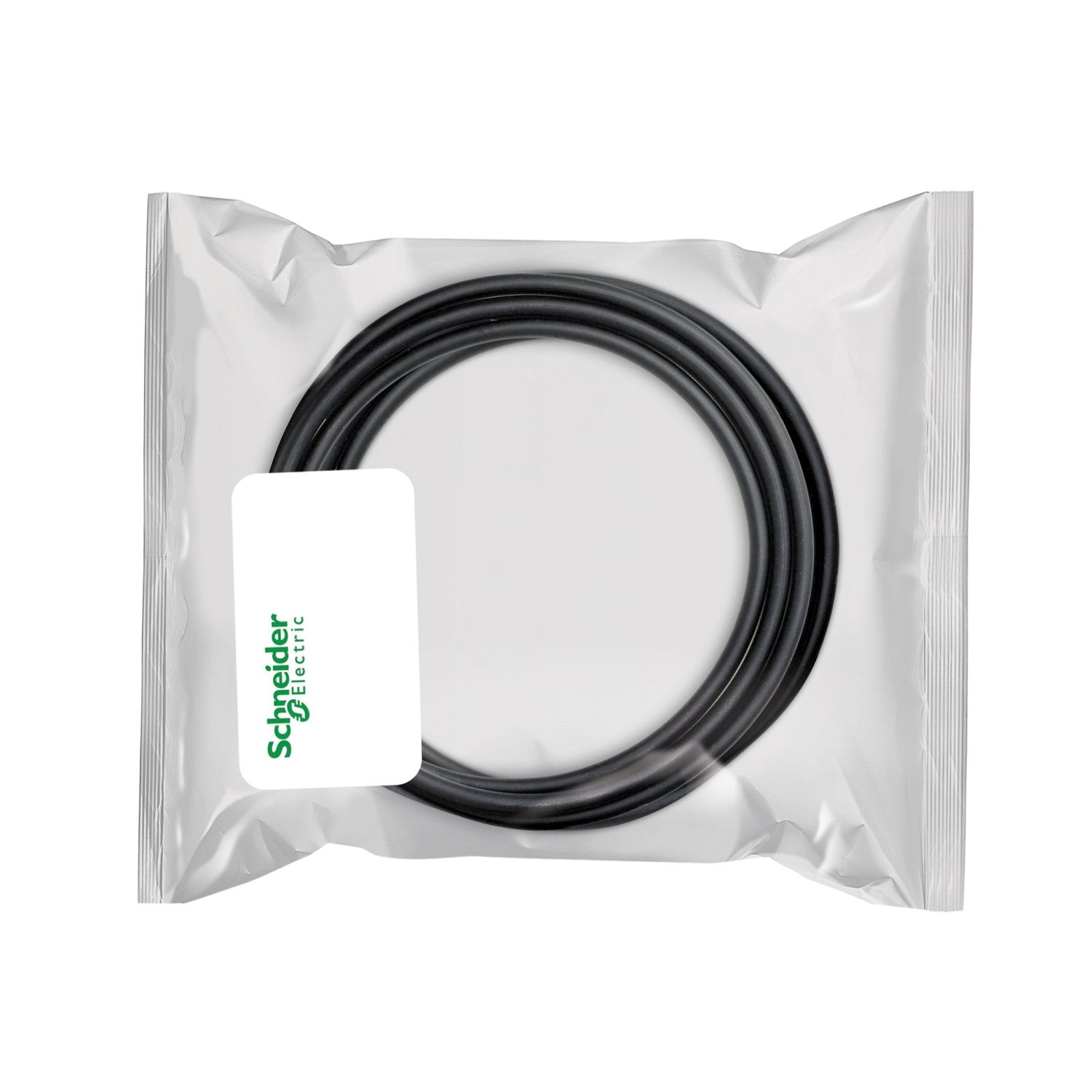

Picture of cable for creating control cord sets, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 100m
SKU:

VW3M8222R1000

cable for creating control cord sets, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 100m

$1,224.96 INC GST
Available for Shipping : 18-Jan-2026
cable for creating control cord sets, Lexium, 3 x (2 x 0.14mm²) + (2 x 0.34mm²), 100m
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Jan-2026
Circularity Profile
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors. This is a shielded cable, free at both ends for creating control cordsets. This connection accessory is a cable allowing to create control cordsets to use betwen a servo drive and a servo motor. It is used to create cordsets for SinCos Hiperface encoders, to connect to servo drives and servo motors. Its composition is 3 x (2 x 0.14squaremm/AWG 26) + 2 x (2 x 0.34squaremm/AWG 22). its length is 100m. It weighs 5.6kg. BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists. This cable is certified c-UR-us, and compliant with DESINA. This connector is compatible with Lexium 32 servo drives, Altivar Process ATV900 and Altivar Machine ATV340. Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination from servo motor to servo drive
Device application for creating control cordsets for SinCos Hiperface encoders
Accessory / separate part type encoder cable
Cable composition 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
Product or component type cable
Accessory / separate part category connection accessory
Range of product Lexium
Complementary
Range compatibility Altivar Machine ATV340, Altivar Process ATV900, Lexium 32
Net weight 5.6 kg
Cable length 100 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 42.0 cm
Package 1 Length 42.0 cm
Package 1 Weight 6.254 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 73.5 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 63.032 kg
