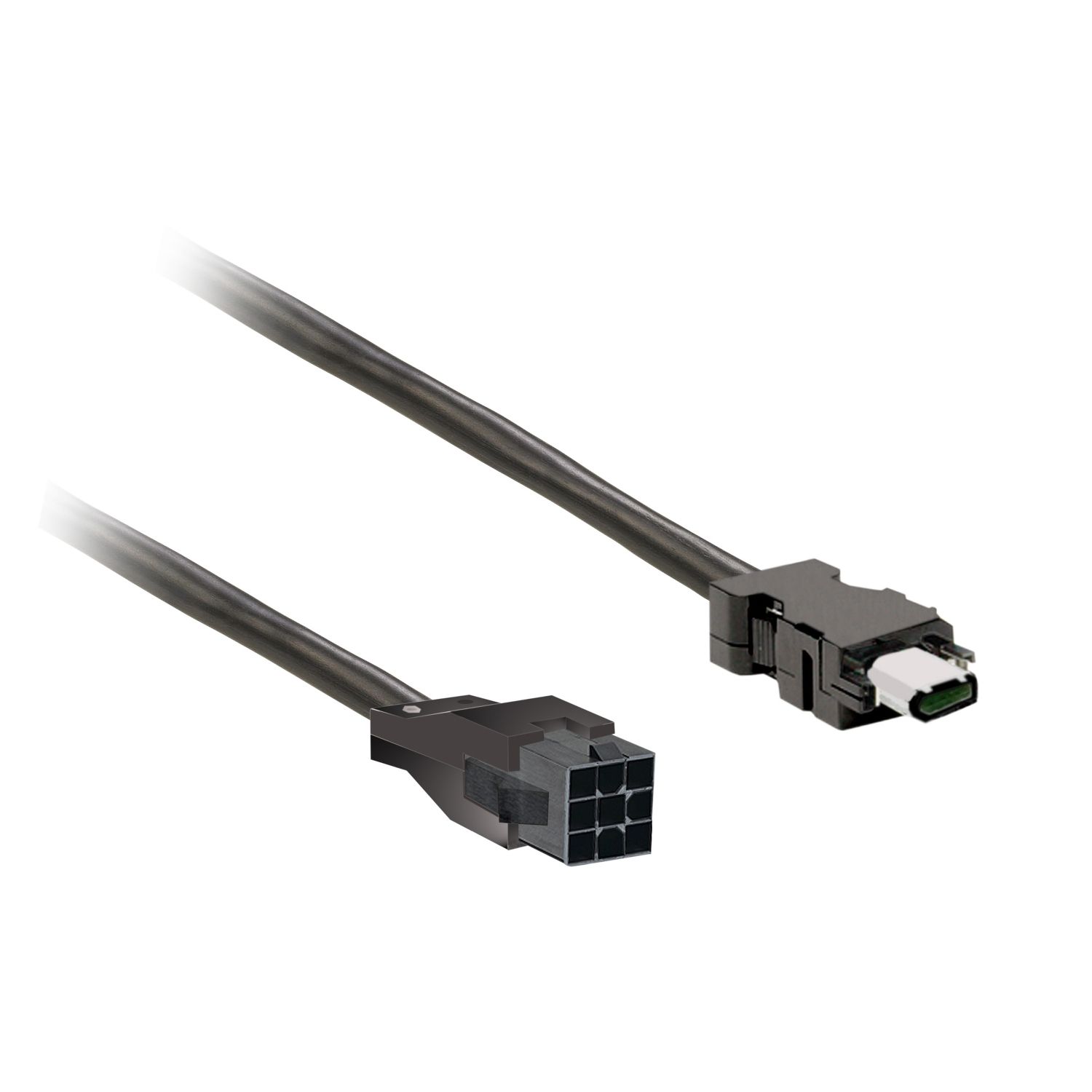

Picture of power cable 5m shielded 4x 0,82mm², BCH2 leads connection
SKU:

VW3M5D1AR50

power cable 5m shielded 4x 0,82mm², BCH2 leads connection

$138.60 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
power cable 5m shielded 4x 0,82mm², BCH2 leads connection
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded power cordset for BCH2 motors without brake. It is equipped with a Molex 4-pin connector (servo motor side) and an open end (servo drive side). The power cable's shield serves as electromagnetic compatibility protection. the AWG gauge of the cable is 4x AWG 18. It measures 5m long and weighs 0.45kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2MBA53, /MB013, /LD023, /LD043, /LF043, /HF073, /LF073. It plugs into the power connector of BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination between servo motor and servo drive
Accessory / separate part type preassembled power cordset
Range compatibility Lexium 28
Product or component type power cable
Accessory / separate part category connection accessory
Cable length 5 m
Product compatibility servo motor BCH2 at 750 W (80 mm) (without brake), servo motor BCH2 at 400 W (80 mm) (without brake), servo motor BCH2 at 400 W (60 mm) (without brake), servo motor BCH2 at 200 W (60 mm) (without brake), servo motor BCH2 at 100 W (40 mm) (without brake), servo motor BCH2 at 50 W (40 mm) (without brake)
Range of product Lexium 28
Complementary
AWG gauge 4 x AWG 18
Net weight 0.45 kg
Electrical connection connector - Molex 4-pin for servo motor side, free end for servo drive side
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 28.4 cm
Package 1 Length 34.2 cm
Package 1 Weight 664 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.654 kg
