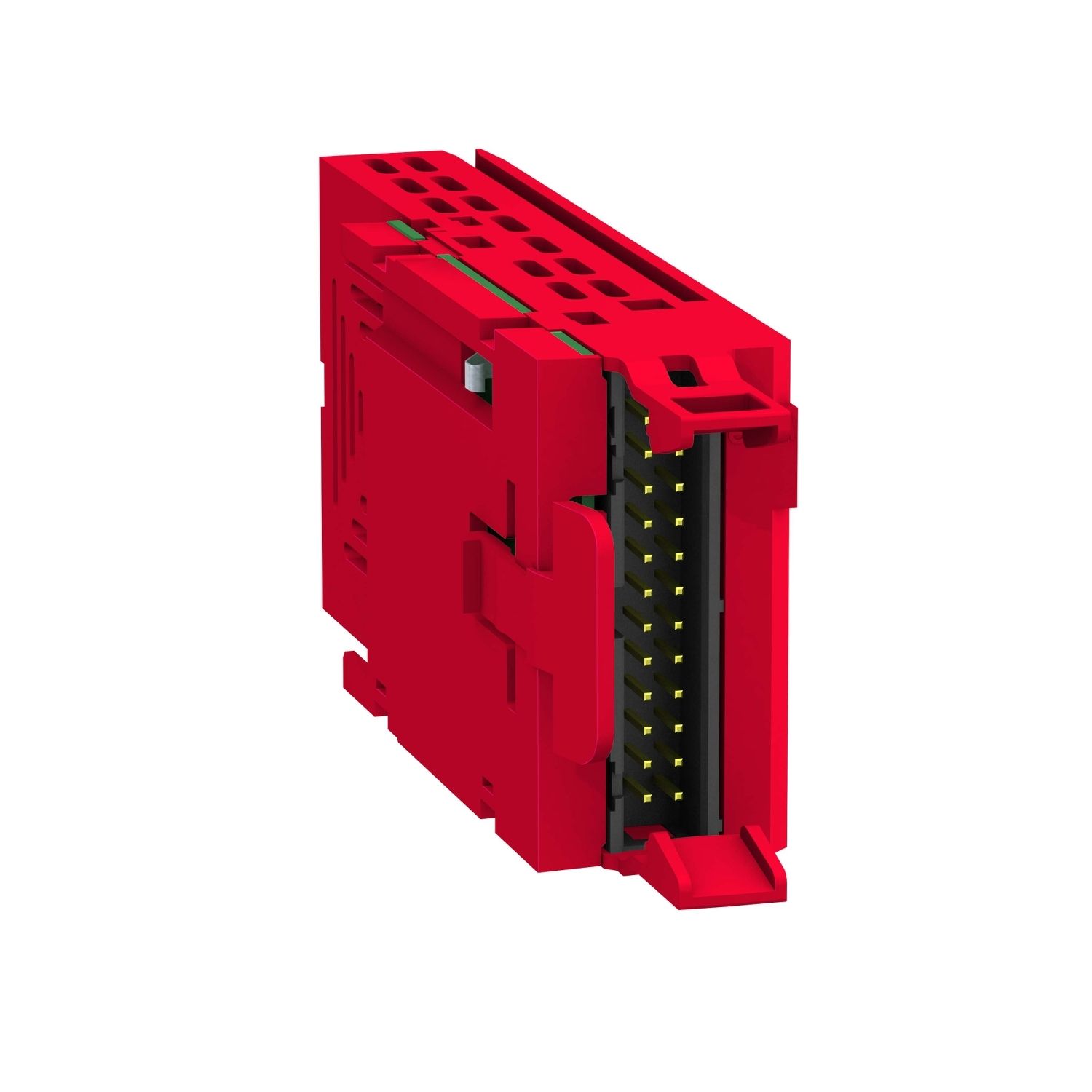

Picture of eSM safety card, Lexium 32, servo drive, 24V DC
SKU:

VW3M3501

eSM safety card, Lexium 32, servo drive, 24V DC

$1,132.80 INC GST
Available for Shipping : 09-Feb-2025
Product Selector
eSM safety card, Lexium 32, servo drive, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
User guide
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This ESM safety card is for Lexium 32 servo drive. It is an ESM safety card with a rated supply voltage of 24V DC and 19V to 30V voltage limits. It provides reverse polarity protection on input and short-circuit protection on output. It offers safety functions like SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2) with safety levels SIL 3, SILCL 3 and PL = e. It meets EN/IEC 61508, ISO 13849-1 and EN/IEC 62061 standards. This card is compatible with Lexium 32 servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination servo drive
Accessory / separate part type eSM safety card
Product compatibility Lexium 32
Range compatibility Lexium 32
Discrete input number 11
Product or component type eSM safety card
Accessory / separate part category communication option
[Us] rated supply voltage 24 V DC, voltage limits: 19-30 V
Complementary
Voltage state 1 guaranteed >= 15 V
Safety level PL = e conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508
Reverse polarity protection yes on input
Safety function SS2 (safe stop 2), STO (safe torque off), SS1 (safe stop 1), SLS (safe limited speed), SOS (safe operating stop)
Short-circuit protection yes on output
Voltage state 0 guaranteed <= 5 V
Discrete output number 7
Environment
Standards IEC 62061, ISO 13849-1, IEC 61508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 132.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 5.623 kg

Related products

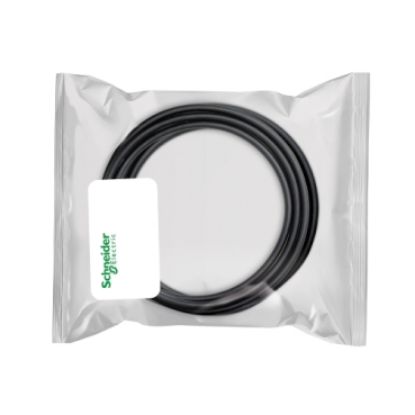

Picture of preassembled cord set, 1.5 m
