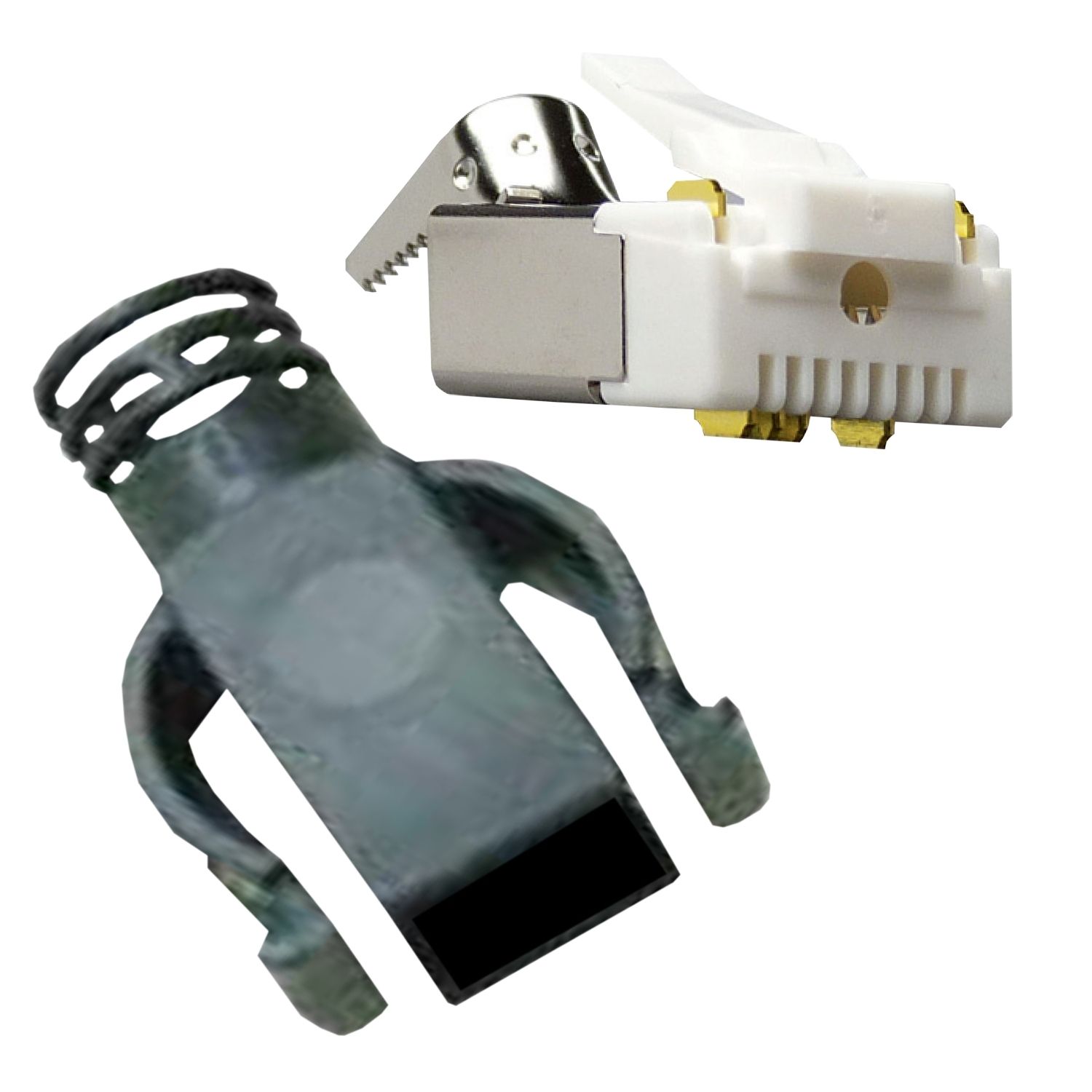

Picture of encoder connector drive end RJ45, lexium, set of 5
SKU:

VW3M2208

encoder connector drive end RJ45, lexium, set of 5

$118.32 INC GST
Available for Shipping : 16-Feb-2025
encoder connector drive end RJ45, lexium, set of 5
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors. This accessory is a RJ45 connector for encoder cable on drive side (10-pole). It is a connector made to create power and control cordsets. It is used to create for creating control cordsets for SinCos Hiperface® encoders, to connect to servo drives. it is a RJ45 connector with 8 plus 2 contacts. It weighs 0.2kg. BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists. This connector complies with Reach regulation N° 1907/2006 and China RoHS declation. This connector is compatible with Lexium 32 servo drives. It is sold by 5 units. To create the cable, use a 10-pin RJ45 encoder connector crimping tool (provided directly by the manufacturer) such as Yamaichi Y-Con Tool-11-20-30. Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination servo drive
Range compatibility Lexium 32
Product compatibility LXM32
Connector type RJ45
Product or component type connector
Accessory / separate part category connection accessory
Range of product Lexium
Complementary
Quantity per set set of 5
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.9 cm
Package 1 Width 7.1 cm
Package 1 Length 11.4 cm
Package 1 Weight 34.0 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.043 kg
