SKU:

VW3A95814

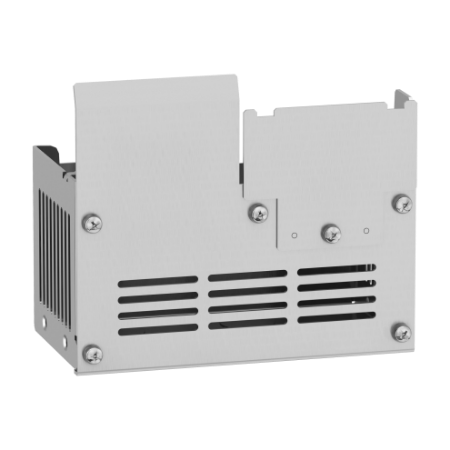

kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S3C

$121.63
Available for Shipping : 05-Nov-2024

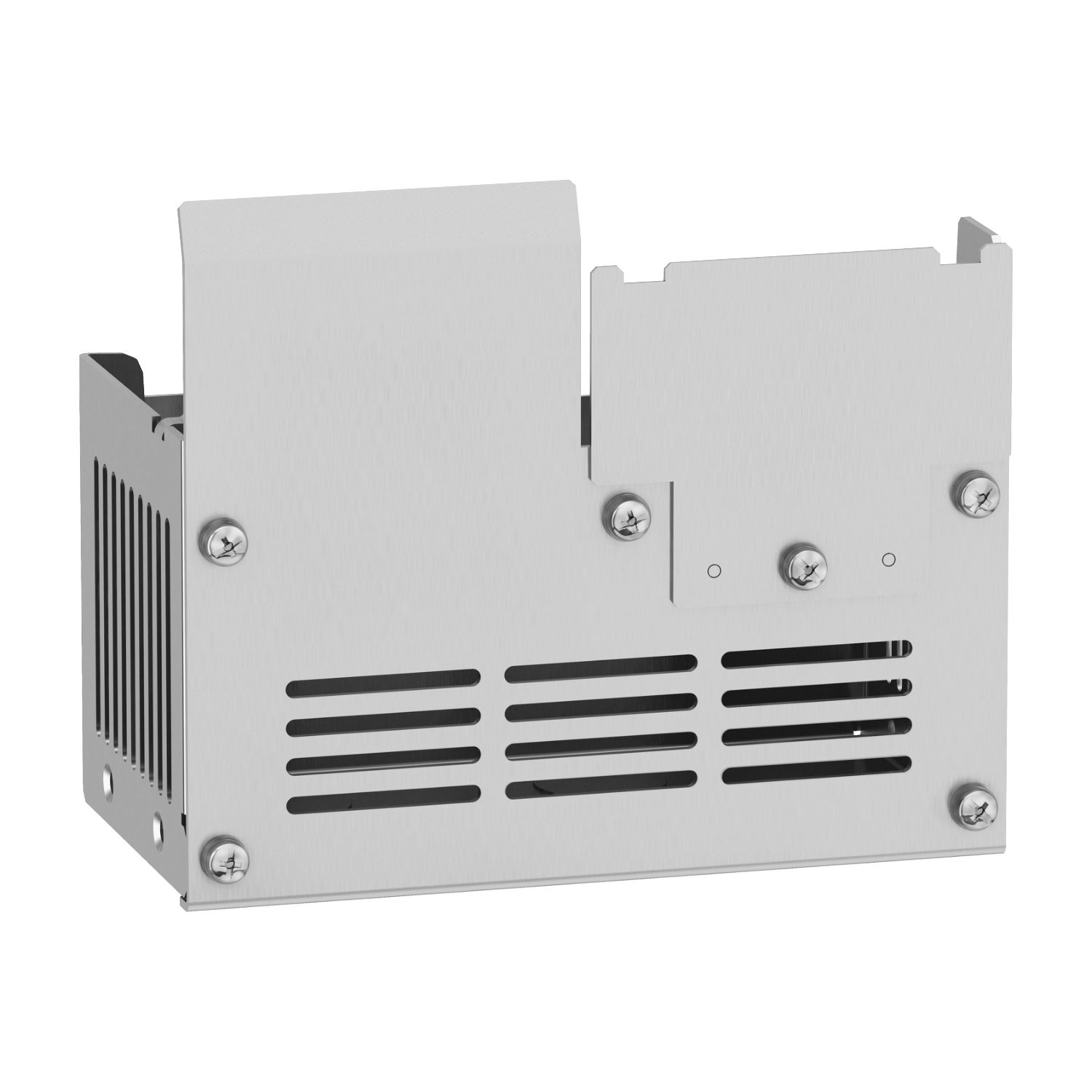

kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S3C
Manufacturer: Schneider Electric
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 3C (140mm/5.5in wide x 118mm/4.64in high, and 74mm/2.9in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320-C drives, rated at 2.2kW, 3kW, or 4kW to feed 3-phase motors rated 380V to 500V or 525V to 600V. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
Accessory / separate part type kit for UL type 1 conformity
Accessory / separate part category mounting and fixing accessories

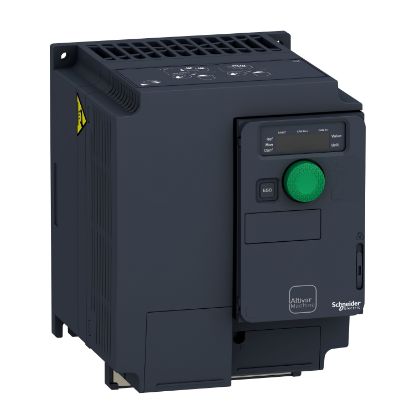

Product compatibility variable speed drive ATV320...C at 4 kW, 525...600 V, three phase, variable speed drive ATV320...C at 2.2 kW, 525...600 V, three phase, variable speed drive ATV320...C at 4 kW, 380...500 V, three phase, variable speed drive ATV320...C at 3 kW, 380...500 V, three phase, variable speed drive ATV320...C at 2.2 kW, 380...500 V, three phase
Range of product Altivar
Complementary
Kit composition mechanical device
Range compatibility Altivar Machine ATV320
Mounting location underside of drive
Environment
Standards UL Type 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 18.500 cm
Package 1 Length 18.500 cm
Package 1 Weight 886.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 38.500 kg
