SKU:

VW3A9212

kit for UL type 1 conformity, Altivar, for variable speed drive

$1,473.31
Available for Shipping : 25-Nov-2024
kit for UL type 1 conformity, Altivar, for variable speed drive
Manufacturer: Schneider Electric

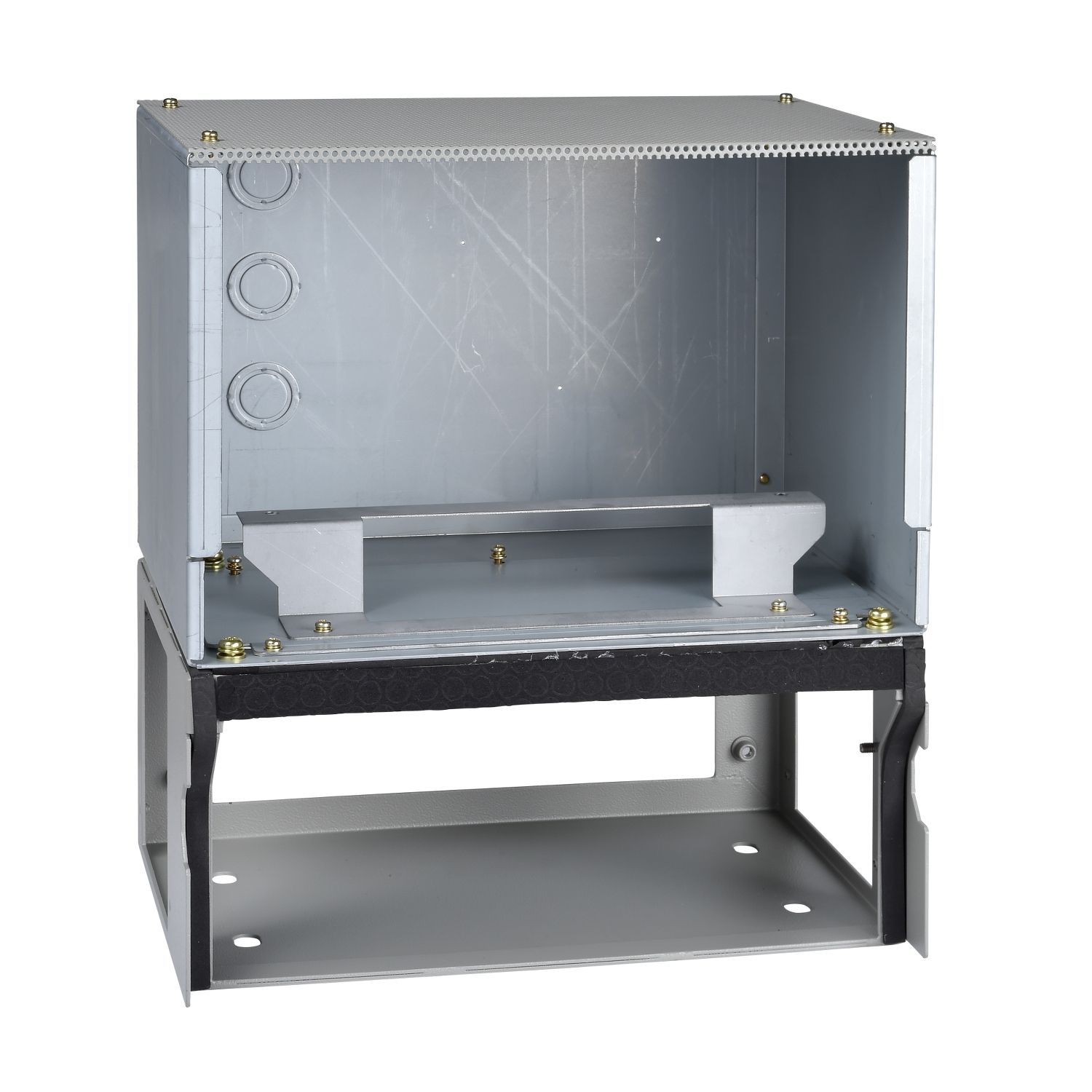

This conformity kit is an accessory for variable speed drives of the Altivar range. This kit is a mounting accessory for the variable speed drive. It is used to ensure UL Type 1 conformity. It weighs 14.6kg. The kit comprises a UL type 1 cover, an EMC plate, an IP54 casing, a pre-drilled plate, a manual, and fixing accessories.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
Degree of protection UL type 1
Accessory / separate part type conformity kit
Range compatibility Altivar 71, Altivar Process ATV900, Altivar Process ATV600, Altivar 61

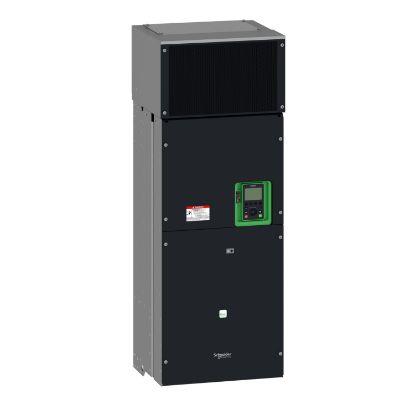

Product compatibility variable speed drive ATV930 wall mount motor at 160 kW, heavy duty 380...480 V, variable speed drive ATV930 wall mount motor at 220 kW, normal duty 380...480 V, variable speed drive ATV630 wall mount motor at 160 kW, heavy duty 380...480 V, variable speed drive ATV630 wall mount motor at 220 kW, normal duty 380...480 V, ATV71HC16N4D, ATV71HC16N4, ATV61HC22N4D, ATV61HC22N4
Accessory / separate part category mounting and fixing accessories
Complementary
Kit composition fixing accessories, 1 IP54 casing, 1 EMC plate, 1 UL type 1 cover, 1 pre-drilled plate for connecting the tubes, 1 manual
Net weight 14.6 kg
Environment
Standards UL Type 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 42.000 cm
Package 1 Width 51.000 cm
Package 1 Length 51.500 cm
Package 1 Weight 14.344 kg
