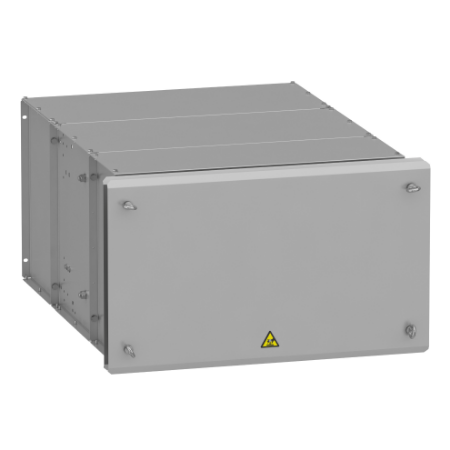

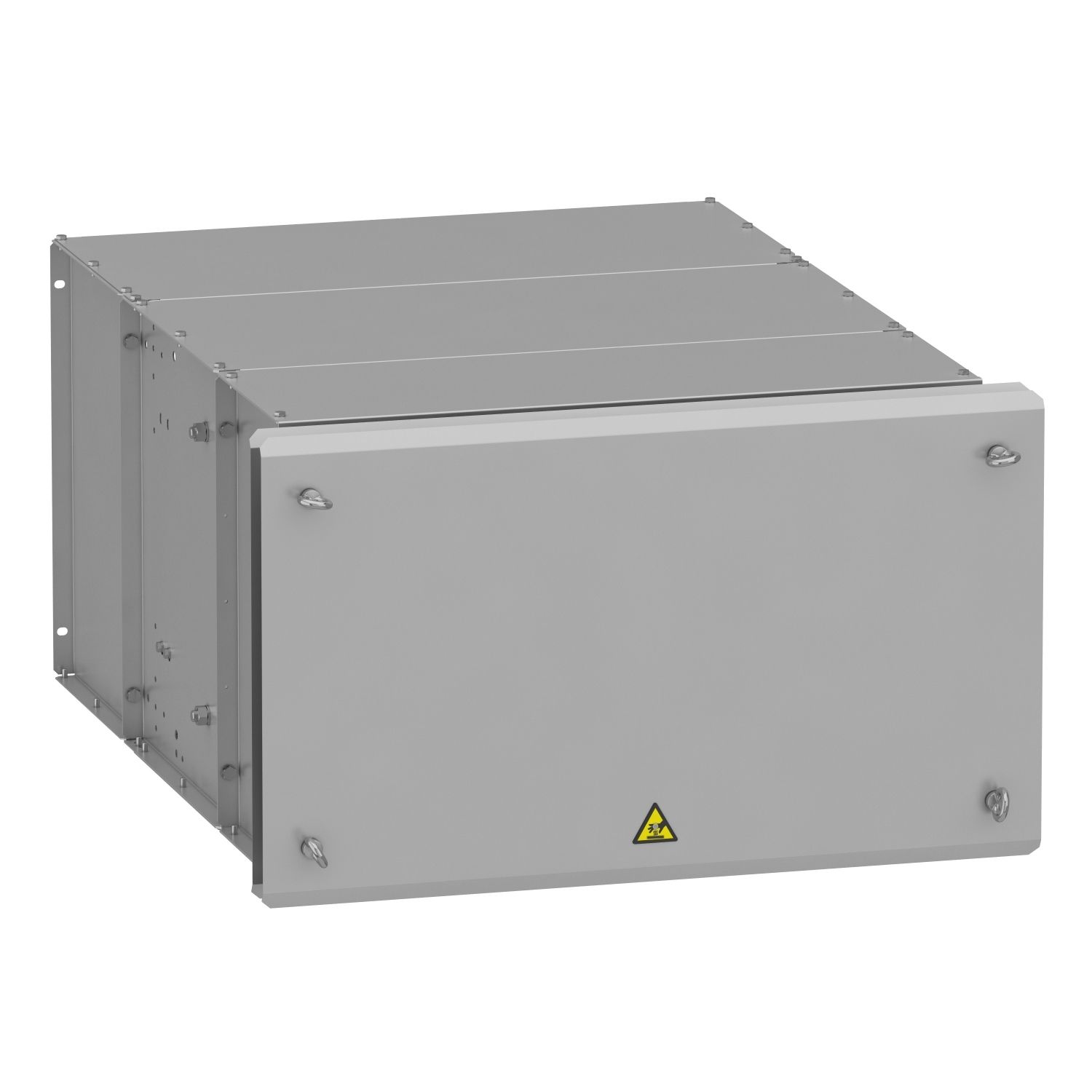

Picture of braking resistor, Altivar, 10Ohms, 19kW, IP23
SKU:

VW3A7754

braking resistor, Altivar, 10Ohms, 19kW, IP23

$6,450.97
Available for Shipping : 05-Nov-2024
Product Selector
braking resistor, Altivar, 10Ohms, 19kW, IP23
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 67kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV900, Altivar Machine ATV340
Product or component type braking resistor
[Ue] rated operational voltage 250 V AC, 24 V DC
Ohmic value 10 Ohm
Complementary
Average power available 19 kW at 50 °C
Depth 860 mm
Width 540 mm
Duty cycle severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle , severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle
Product compatibility variable speed drive ATV930 75 hp 600 V severe cycle, variable speed drive ATV930 60 hp 600 V severe cycle, variable speed drive ATV930 55 kW 500...690 V severe cycle, variable speed drive ATV930 45 kW 500...690 V severe cycle, variable speed drive ATV340 75 kW 380...480 V severe cycle 2 per drive, variable speed drive ATV340 37 kW 380...480 V severe cycle, variable speed drive ATV340 30 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 90 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 45 kW 380...480 V severe cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 90 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V severe cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V severe cycle
Electrical connection M12 bar wire for drive,  terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch
Net weight 71 kg
Protection type thermal protection via drive or temperature control switch at 120 °C
Height 1035 mm
Environment
IP degree of protection IP23
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 80.0 cm
Package 1 Width 120.0 cm
Package 1 Length 152.0 cm
Package 1 Weight 94.5 kg
