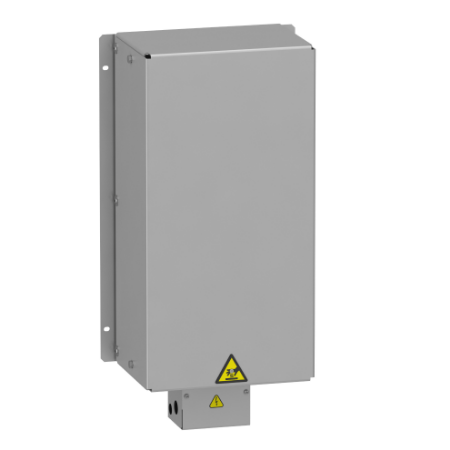

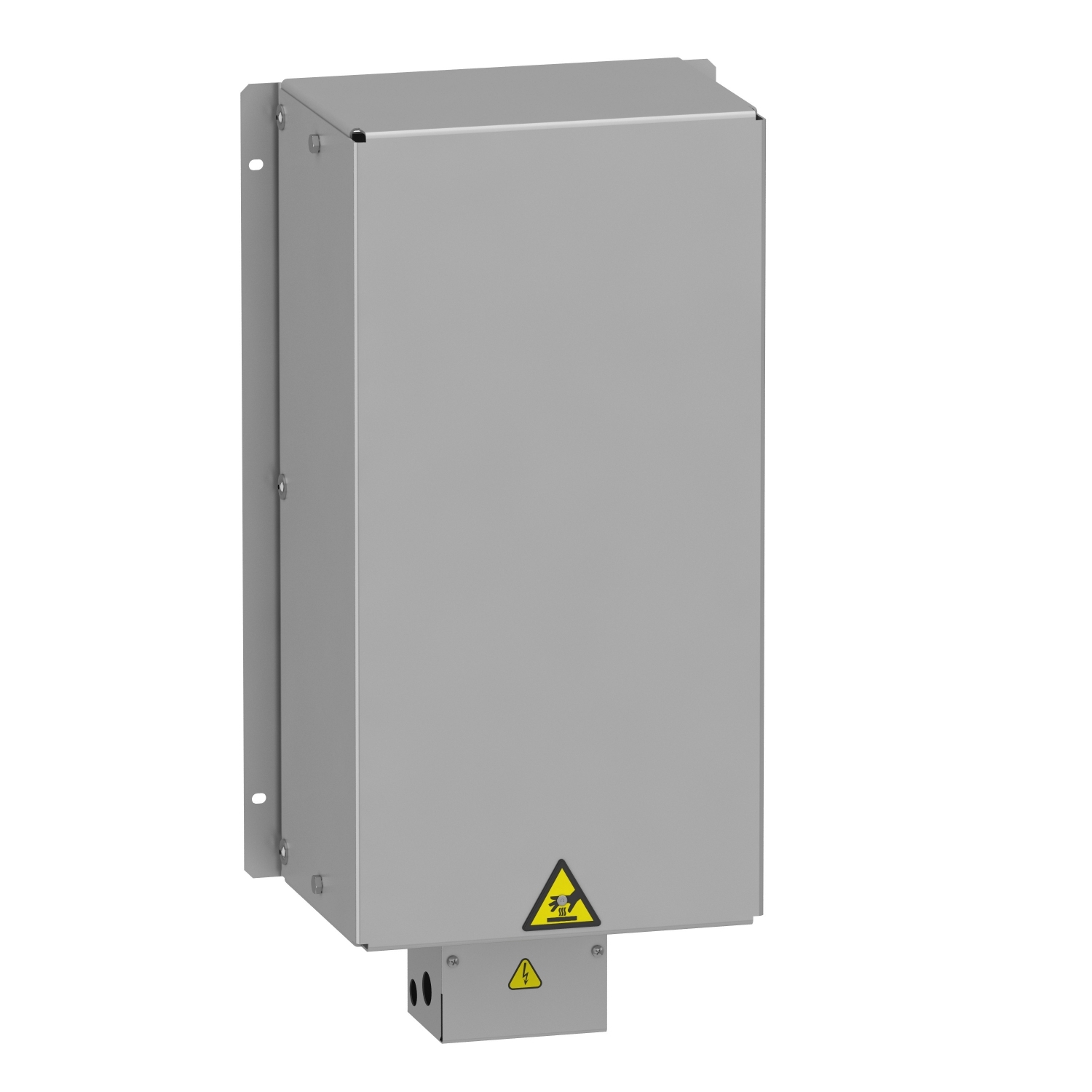

Picture of braking resistor, Altivar, 16Ohms, 1.9kW, IP20
SKU:

VW3A7743

braking resistor, Altivar, 16Ohms, 1.9kW, IP20

$1,995.60
Available for Shipping : 05-Nov-2024
Product Selector
braking resistor, Altivar, 16Ohms, 1.9kW, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 7kg. This resistor is designed to be mounted on the outside of the enclosure.

Products specifications

Attribute name Attribute value
Main
Range compatibility Easy Altivar 310, Altivar Process ATV900, Altivar Machine ATV340
Product or component type braking resistor
[Ue] rated operational voltage 250 V AC, 24 V DC
Ohmic value 16 Ohm
Complementary
Average power available 1.9 kW at 50 °C
Depth 180 mm
Width 290 mm
Duty cycle severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle , medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle
Product compatibility variable speed drive ATV930 50 hp 600 V medium cycle, variable speed drive ATV930 40 hp 600 V medium cycle, variable speed drive ATV930 32 hp 600 V medium cycle, variable speed drive ATV930 37 kW 500...690 V medium cycle, variable speed drive ATV930 30 kW 500...690 V medium cycle, variable speed drive ATV930 22 kW 500...690 V medium cycle, variable speed drive ATV340 22 kW 380...480 V medium cycle, variable speed drive ATV340 18 kW 380...480 V medium cycle, variable speed drive ATV340 15 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V severe cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V medium cycle
Electrical connection terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch,  terminal, connection capacity: <= 10 mm² / AWG 8 for drive
Net weight 6.4 kg
Protection type thermal protection via drive or temperature control switch at 120 °C
Height 570 mm
Environment
IP degree of protection IP20
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.500 cm
Package 1 Width 58.000 cm
Package 1 Length 30.500 cm
Package 1 Weight 7.211 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 37.632 kg

Related products

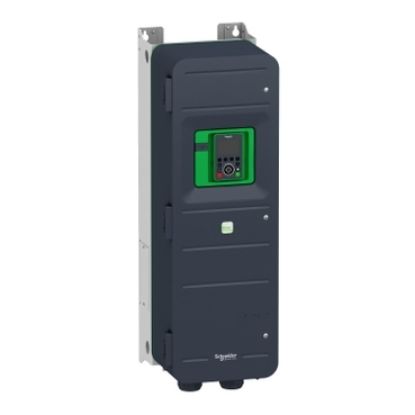

Picture of variable speed drive, Altivar Process ATV900, ATV950, 30kW, 400 to 480V, with braking unit, IP55
