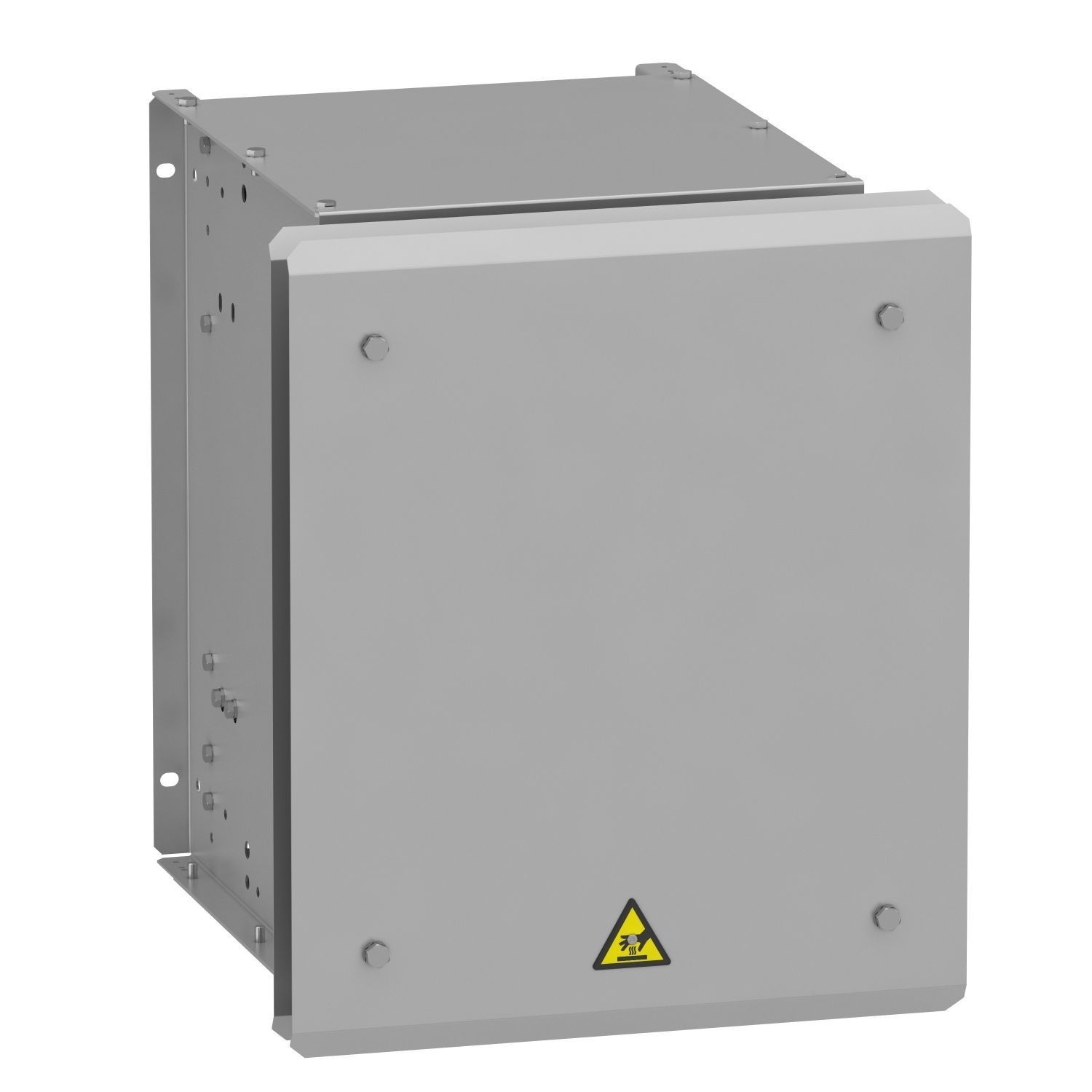

Picture of braking resistor, Altivar, 2.5Ohms, 3.2kW, IP23
SKU:

VW3A7737

braking resistor, Altivar, 2.5Ohms, 3.2kW, IP23

$4,028.50 INC GST
Available for Shipping : 21-Jan-2025
Product Selector
braking resistor, Altivar, 2.5Ohms, 3.2kW, IP23
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 2.5Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP23. It weighs 18kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV900
Product or component type braking resistor
[Ue] rated operational voltage 250 V AC, 24 V DC
Ohmic value 2.5 Ohm
Complementary
Average power available 3.2 kW at 50 °C
Depth 450 mm
Width 540 mm
Duty cycle medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle , light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
Product compatibility variable speed drive ATV930 wall mount 310 kW 380...480 V light cycle 2 per drive, variable speed drive ATV930 wall mount 45 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 37 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 30 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 45 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 37 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 30 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 160 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 132 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 110 kW 380...480 V light cycle
Electrical connection M12 bar wire for drive,  terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch
Net weight 21 kg
Protection type thermal protection via drive or temperature control switch at 120 °C
Height 485 mm
Environment
IP degree of protection IP23
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 48.500 cm
Package 1 Width 54.000 cm
Package 1 Length 45.000 cm
Package 1 Weight 34.000 kg

Related products

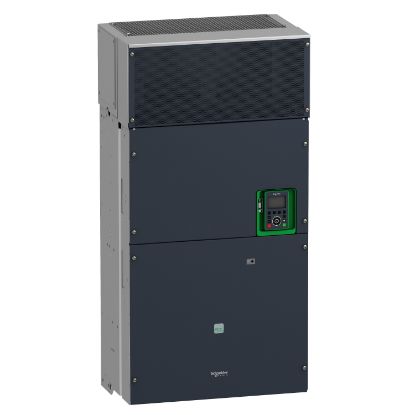

Picture of variable speed drive, Altivar Process ATV900, ATV930, 315kW, 400 to 480V, without braking unit, IP00
