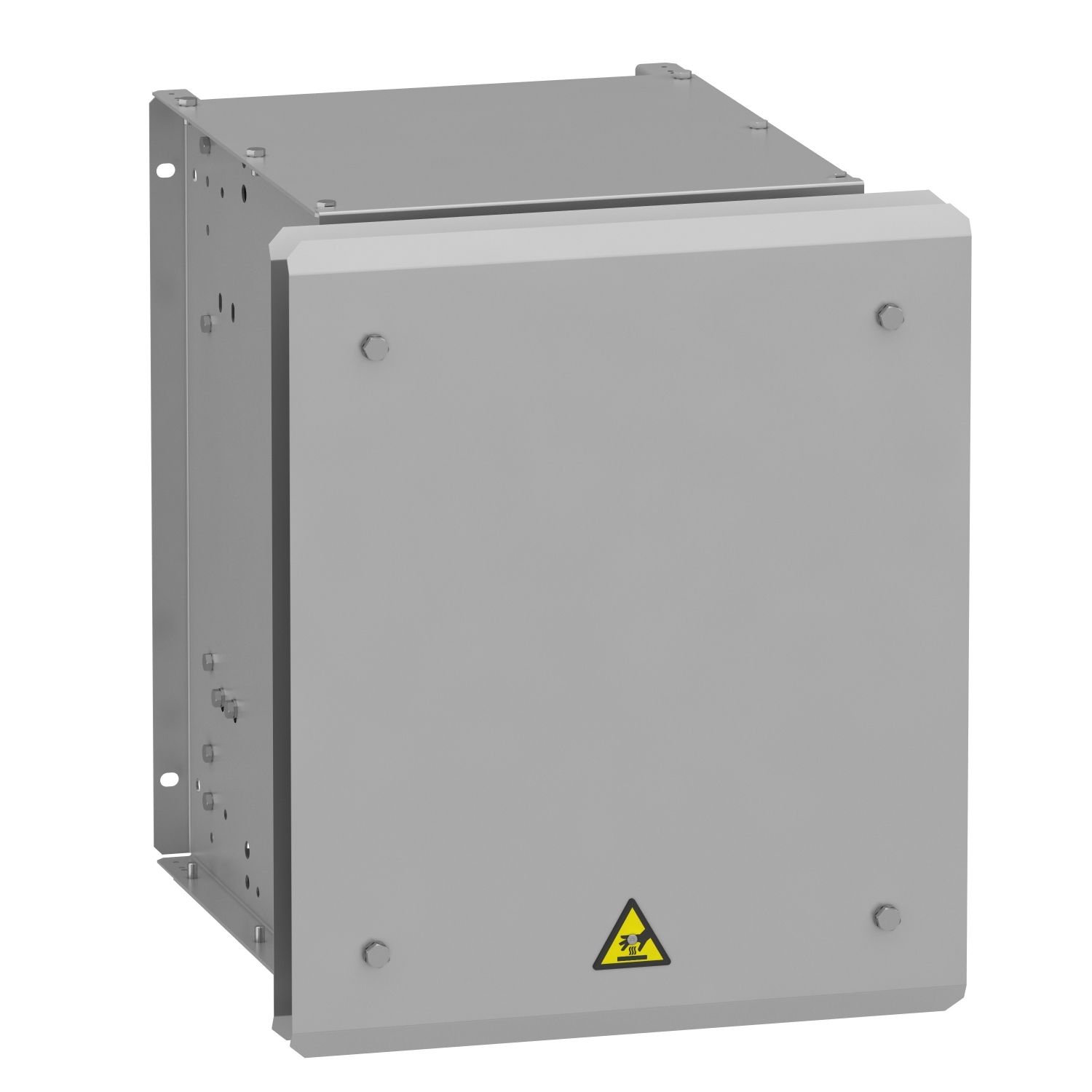

Picture of braking resistor, Altivar, 5Ohms, 1.9kW, IP23
SKU:

VW3A7736

braking resistor, Altivar, 5Ohms, 1.9kW, IP23

$2,168.81 INC GST
Available for Shipping : 21-Jan-2025
Product Selector
braking resistor, Altivar, 5Ohms, 1.9kW, IP23
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This braking resistor is an option for variable speed drives of the Altivar range. It has an Ohmic value of 5Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill by dissipating the braking energy and enabling maximum transient braking torque. Its protection index is IP23. It weighs 21kg. This resistor is designed to be mounted on the outside of the enclosure but should not inhibit natural cooling; air inlets and outlets must not be obstructed in any way.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Machine ATV340, Altivar Process ATV900, Altivar Machine ATV320
Product or component type braking resistor
[Ue] rated operational voltage 250 V AC, 24 V DC
Ohmic value 5 Ohm
Complementary
Average power available 1.9 kW at 50 °C
Depth 450 mm
Width 540 mm
Duty cycle medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle , light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
Product compatibility variable speed drive ATV930 100 hp 600 V light cycle, variable speed drive ATV930 90 kW 500...690 V light cycle, variable speed drive ATV930 75 kW 500...690 V light cycle, variable speed drive ATV320 15 kW 200...240 V, variable speed drive ATV340 75 kW 380...480 V light cycle, variable speed drive ATV340 55 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 18.5 kW 200...240 V medium cycle, variable speed drive ATV950 wall mount 90 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 22 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 18.5 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 90 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 75 kW 380...480 V light cycle
Electrical connection M10 bar wire for drive,  terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch
Net weight 18 kg
Protection type thermal protection via drive or temperature control switch at 120 °C
Height 485 mm
Environment
IP degree of protection IP23
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 48.500 cm
Package 1 Width 54.000 cm
Package 1 Length 45.000 cm
Package 1 Weight 31.000 kg

Related products

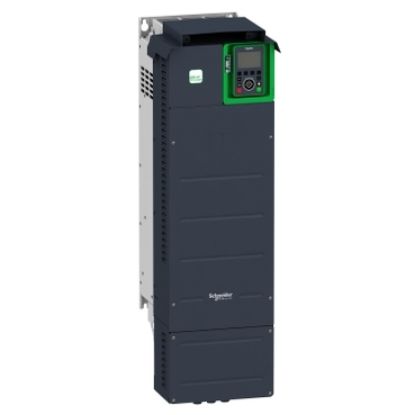

variable speed drive, Altivar Process ATV900, ATV930, 75kW, 400 to 480V, with braking unit, IP21
