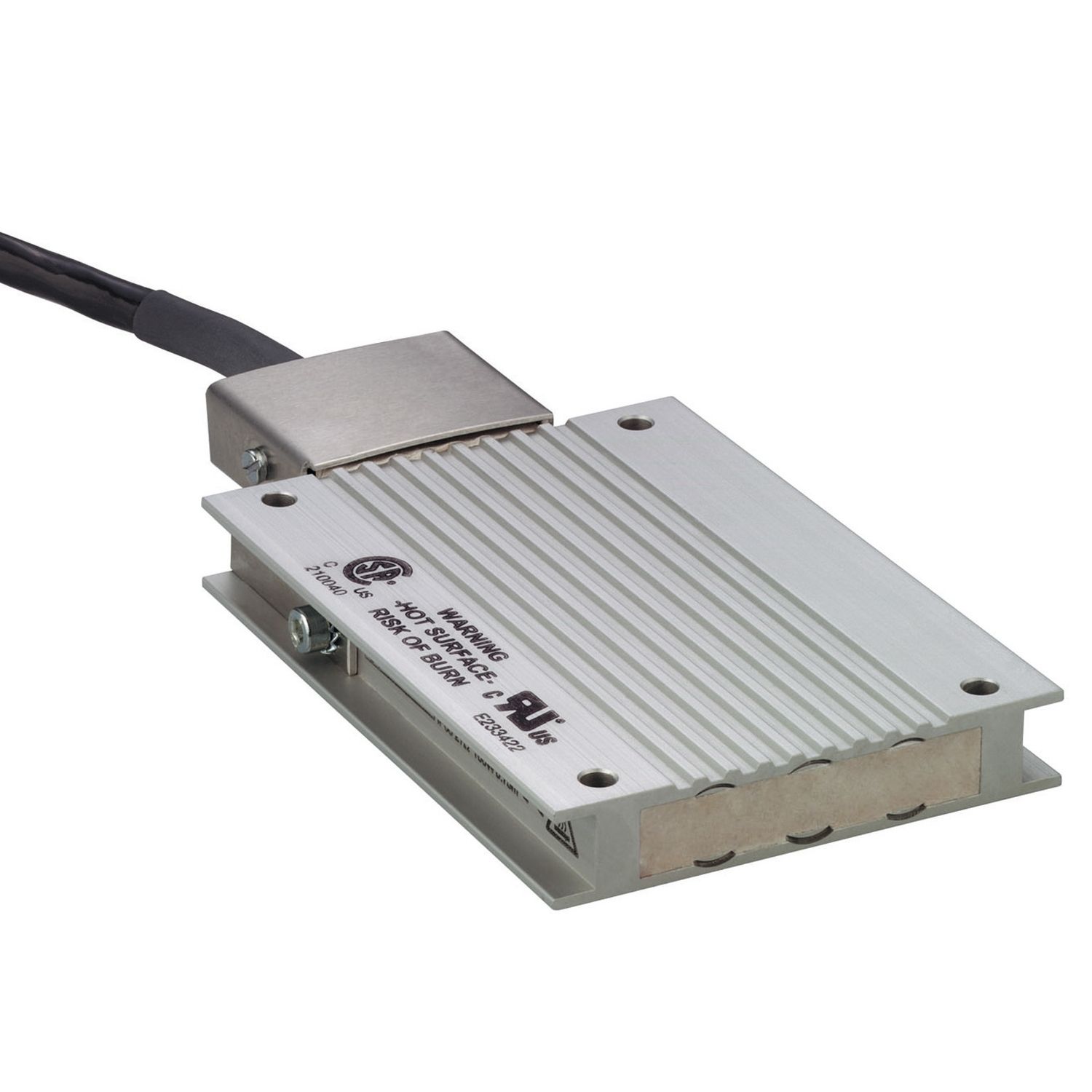

Picture of braking resistor - 27 ohm - 400 W - cable 3 m - IP65
SKU:

VW3A7604R30

braking resistor - 27 ohm - 400 W - cable 3 m - IP65

$820.49
Available for Shipping : 19-Nov-2024
Product Selector
braking resistor - 27 ohm - 400 W - cable 3 m - IP65
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It dissipates the braking energy, and enables maximum transient braking torque. It has anohmic value of 27Ohms and a cable lenght of 3m. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. Its protection index is IP65. The operating temperature around the unit can be between 0degrecentigrade and plus 50degrecentigrade. It weighs 1.620kg. The external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. This external braking resistor is compatible with Easy Lexium 16 servo drives. It is sold by one piece. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.

Products specifications

Attribute name Attribute value
Main
Range compatibility Easy Lexium 16, Lexium 32, Altivar Machine ATV320, Lexium 15, Altivar 32, Lexium 52, Lexium 32i, Lexium 28, Lexium 05
Product or component type braking resistor
Product compatibility motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase, motion servo drive LXM16D at 1 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase, variable speed drive ATV320 at 7.5 kW, 525...600 V, three phase, variable speed drive ATV320 at 5.5 kW, 525...600 V, three phase, variable speed drive ATV320 at 7.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 5.5 kW, 380...500 V, three phase, ATV32HU75N4, ATV32HU55N4
Range of product Altivar, Lexium
Ohmic value 27 Ohm
Complementary
Average power available 100 W at 50 °C
Energy peak 25500 J at 115 V, 18100 J at 230 V, 11400 J at 400 V, 10500 J at 480 V
Protection type thermal protection via the servo drive
Net weight 1.62 kg
Cable length 3 m
Continuous power 400 W
Environment
IP degree of protection IP65
Ambient air temperature for storage -25-85 °C
Ambient air temperature for operation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 13.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 1.725 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.273 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 73.500 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 96.472 kg
