SKU:

VW3A7106

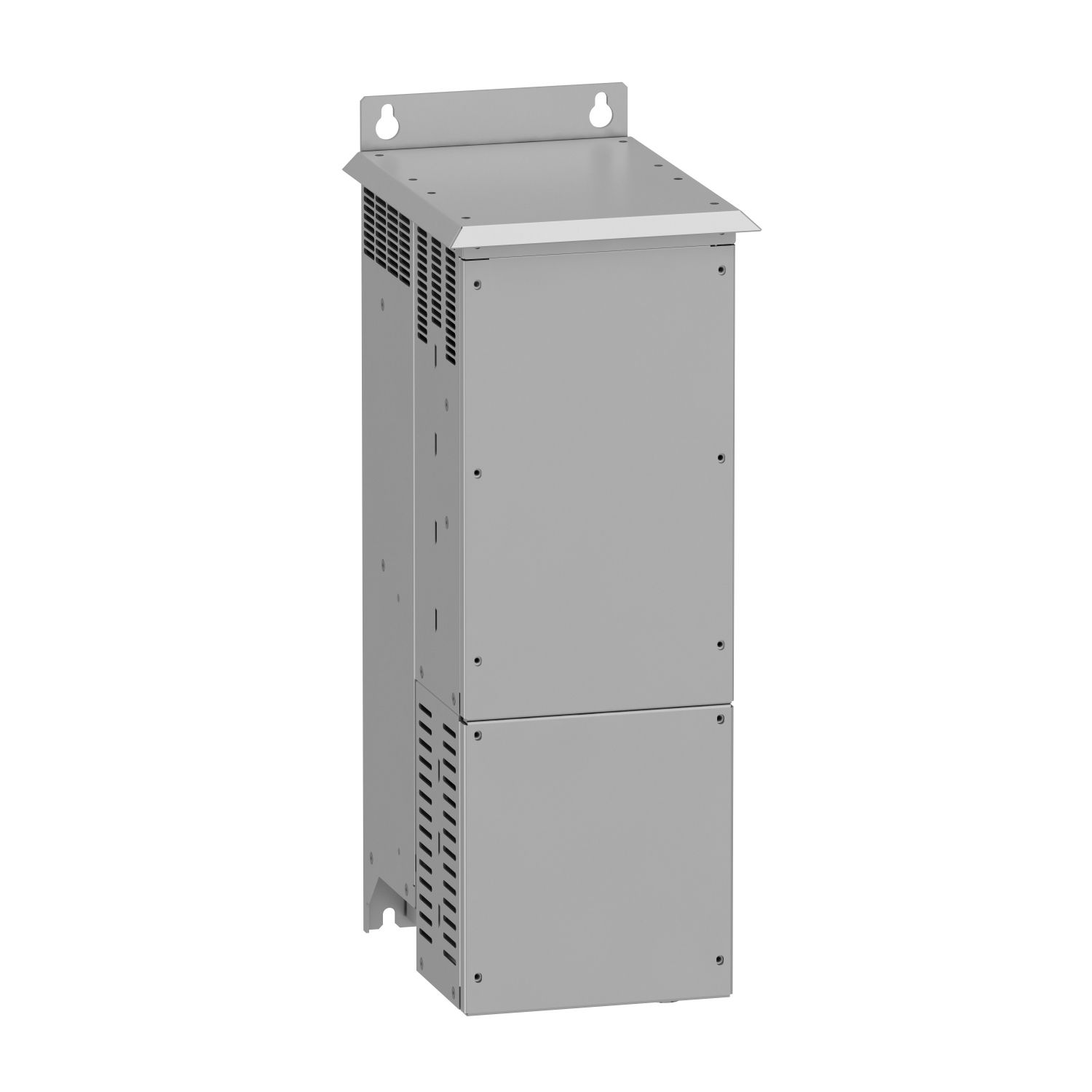

braking unit, Altivar, 60kW, 200/240V, for variable speed drive

$6,555.96

Qty:

Available for Shipping : 03-Apr-2025

braking unit, Altivar, 60kW, 200/240V, for variable speed drive

Manufacturer: Schneider Electric

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Protection type	integrated thermal protection by thermal probe
Range compatibility	Altivar Process ATV900
Product compatibility	variable speed drive ATV930 without braking chopper 75 kW 200...240 V, variable speed drive ATV930 without braking chopper 55 kW 200...240 V
Minimum resistor value to associate	1.4 Ohm
Thermal losses	400 W
Complementary
Depth	303 mm
Width	216 mm
Activation threshold	395 V DC +/- 1 %
Operating position	vertical +/- 10 degree
Load factor	1 for 75 kW at constant power and at engage threshold, 0.5 for 95 kW at constant power and at engage threshold, 0.15 for 120 kW at constant power and at engage threshold, 0.05 for 150 kW at constant power and at engage threshold
Maximum braking power	80 kW
Maximum DC bus voltage	450 V
Net weight	15.5 kg
Permanent braking power	60 kW (at constant power and at engage threshold)
Volume of cooling air	166 m3/h
Height	658 mm
Mechanical robustness	vibrations class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude	1000...4000 m with current derating 1 % per 100 m, <= 1000 m without derating
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP21 (on top), IP20
Ambient air temperature for operation	-10-50 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	26.4 cm
Package 1 Width	42.0 cm
Package 1 Length	62.0 cm
Package 1 Weight	21.5 kg
