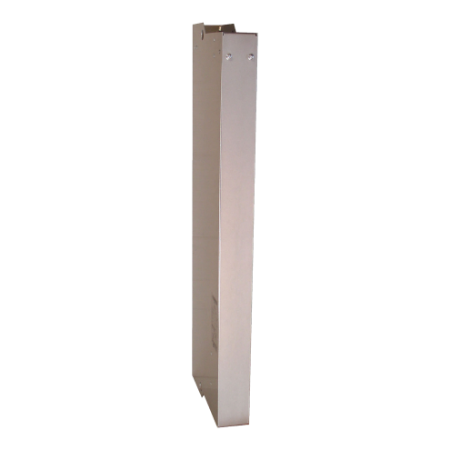

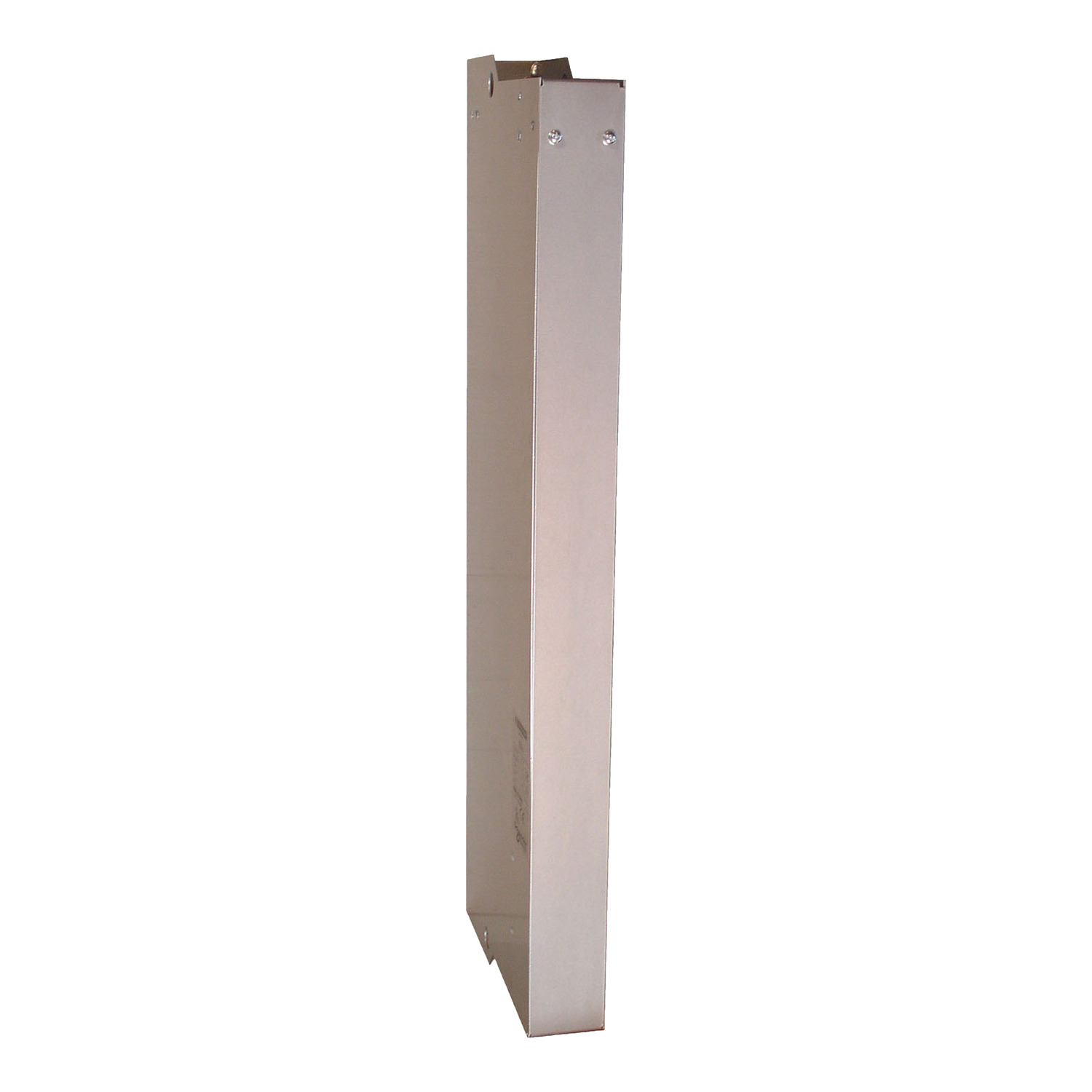

Picture of resistance braking unit - 200 kW - 400 V - for variable speed drive
SKU:

VW3A7101

resistance braking unit - 200 kW - 400 V - for variable speed drive

$10,237.55 INC GST
Available for Shipping : 10-Apr-2025
resistance braking unit - 200 kW - 400 V - for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 1Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 30kg.

Products specifications

Attribute name Attribute value
Main
Protection type integrated thermal protection by thermal probe
Range compatibility Altivar Process ATV900, Altivar 61, Altivar 71, Altivar 71Q, Altivar 61Q
Product compatibility variable speed drive ATV930 without braking chopper 315 kW 380...480 V, variable speed drive ATV930 without braking chopper 250 kW 380...480 V, ATV71QC25N4, ATV71QC20N4, ATV71QC16N4, ATV71HC28N4, ATV71HC25N4, ATV71HC20N4, ATV61QC31N4, ATV61QC25N4, ATV61QC20N4, ATV61HC31N4, ATV61HC25N4
Minimum resistor value to associate 1.05 Ohm
Thermal losses 550 W
Complementary
Operating position vertical
Maximum braking power 420 kW
Volume of cooling air 100 m3/h
Activation threshold 785 V DC +/- 1 %
Load factor 0.5 for 250 kW at constant power and at engage threshold, 0.15 for 320 kW at constant power and at engage threshold, 0.05 for 420 kW at constant power and at engage threshold
Maximum DC bus voltage 850 V
Net weight 30 kg
Permanent braking power 200 kW at 400 V (at constant power and at engage threshold)
Environment
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Vibration resistance 0.2 gn
IP degree of protection IP20
Ambient air temperature for operation -10-50 °C
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 37.000 cm
Package 1 Width 110.000 cm
Package 1 Length 49.000 cm
Package 1 Weight 48.000 kg
