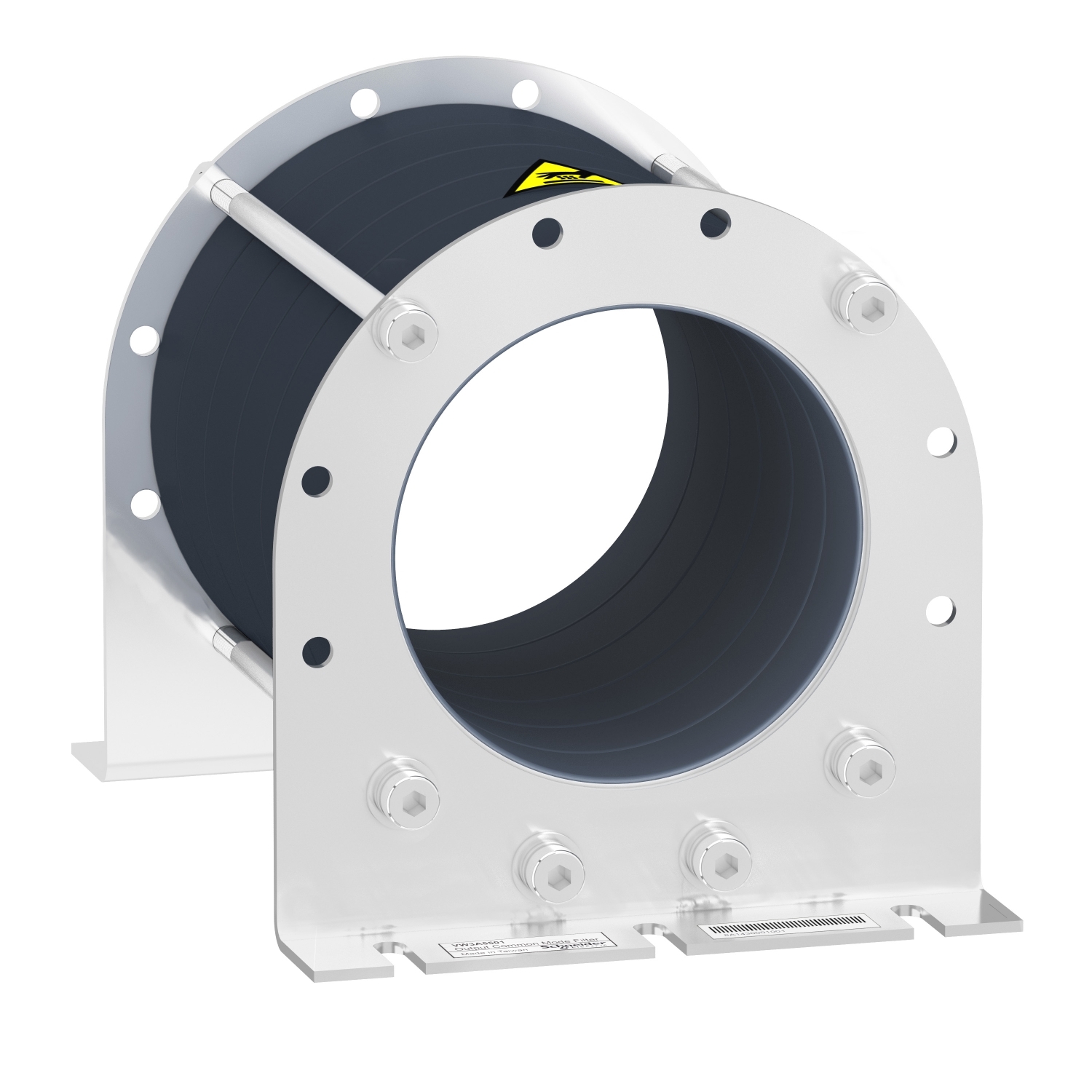

Picture of common mode filter for bearing current reduction - 274.8 µH
SKU:

VW3A5506

common mode filter for bearing current reduction - 274.8 µH

$3,638.75
Available for Shipping : 05-Nov-2024
Product Selector
common mode filter for bearing current reduction - 274.8 µH
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV900, Altivar Process ATV600
Product compatibility variable speed drive ATV930 wall mount, 55-75 kW, 380...480 V, variable speed drive ATV630 wall mount, 55-75 kW, 380...480 V, variable speed drive ATV950 wall mount, 110-160 kW, 380...480 V, variable speed drive ATV930 wall mount, 110-160 kW, 380...480 V, variable speed drive ATV650 wall mount, 110-160 kW, 380...480 V, variable speed drive ATV630 wall mount, 110-160 kW, 380...480 V
Value of inductance 274.8 µH
Product or component type common mode output filter
Complementary
Diameter 123.9 mm for PE cable outside, 123.9 mm for 3-phase cable inside
Depth 196 mm
Width 191 mm
Saturation current 3.6 A
Electrical insulation class class I
Net weight 8.3 kg
Maximum motor cable length 300 m(shielded cable) motor: 55-55 kW 200...240 V, with 1 filter, 300 m(unshielded cable) motor: 55-75 kW 200...240 V, with 1 filter, 150 m(shielded cable) motor: 75-75 kW 200...240 V, with 1 filter, 1000 m(unshielded cable) motor: 110-160 kW 380...480 V, with 2 filter, 500 m(shielded cable) motor: 130-160 kW 380...480 V, with 2 filter, 500 m(shielded cable) motor: 110-110 kW 380...480 V, with 1 filter + VW3A5505, 300 m(shielded cable) motor: 110-110 kW 380...480 V, with 1 filter, 300 m(unshielded cable) motor: 110-160 kW 380...480 V, with 1 filter, 1000 m(unshielded cable) motor: 55-75 kW 200...240 V, with 2 filter, 500 m(shielded cable) motor: 75-75 kW 200...240 V, with 2 filter, 500 m(shielded cable) motor: 55-55 kW 200...240 V, with 1 filter + VW3A5505, 150 m(shielded cable) motor: 130-160 kW 380...480 V, with 1 filter
Switching frequency <= 10 kHz
Height 256 mm
Maximum output frequency 100 Hz
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -15-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.500 cm
Package 1 Width 36.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 8.867 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 66.202 kg
