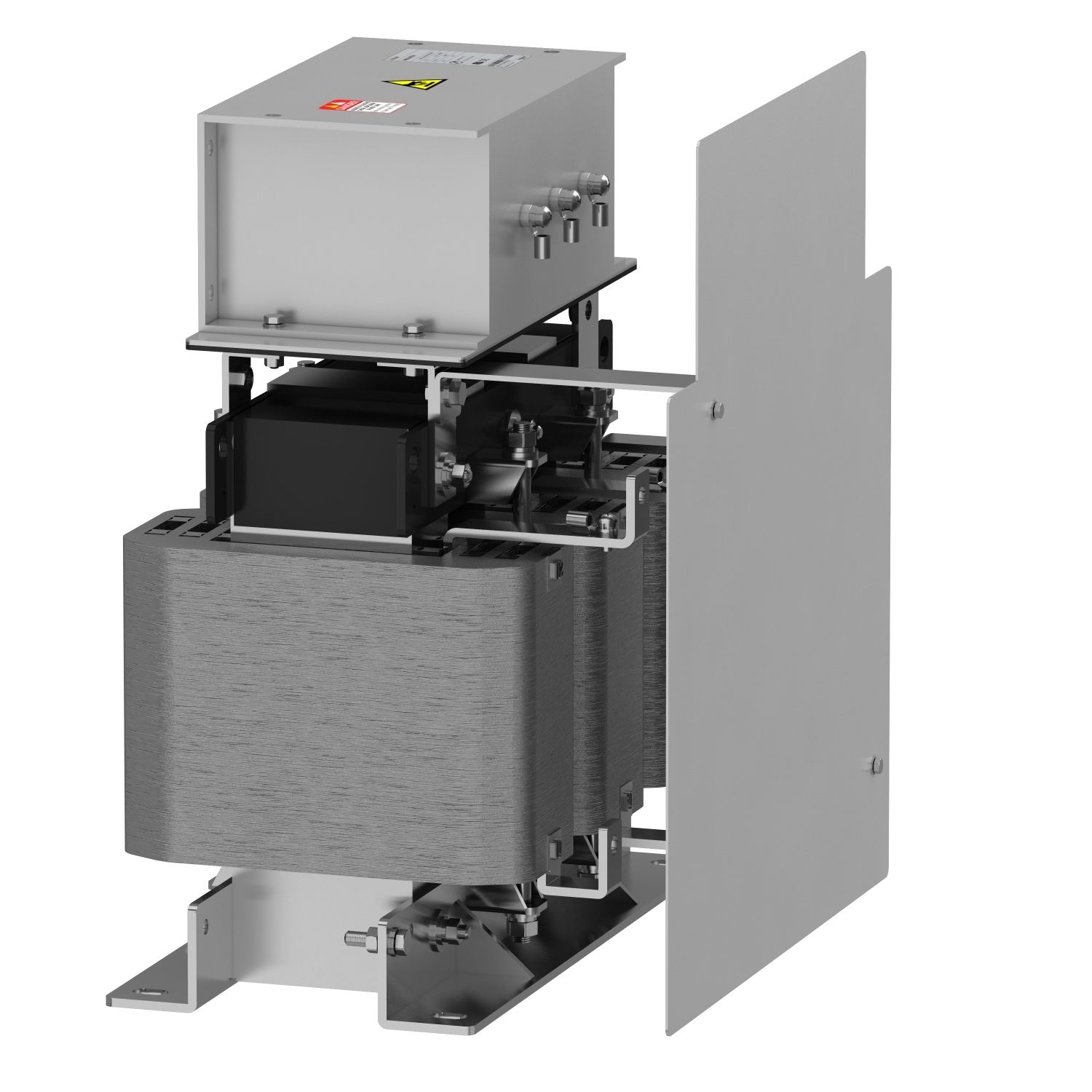

Picture of output sinus filter, Altivar, 180A, for variable speed drive
SKU:

VW3A5406

output sinus filter, Altivar, 180A, for variable speed drive

$6,022.58
Available for Shipping : 30-Oct-2024
Product Selector
output sinus filter, Altivar, 180A, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 180A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 90kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar Process ATV900
Product specific application output filter
Product or component type sinus filter
Complementary
Maximum voltage drop at rated load 8 %
Depth 495 mm
Width 430 mm
Thermal losses 411 W at 4 kHz
[In] rated current 180 A
Max current 1.20 x nominal current (duration = 60 s)
Operating altitude 1000...4000 m with current derating 1 % per 100 m, <= 1000 m without current derating
Electrical connection M10 copper bar, connection capacity: 120 mm² / AWG 4/0
Permissible voltage 480 V AC
Net weight 90 kg
Maximum motor cable length 500 m shielded cable, 1000 m unshielded cable
Product compatibility variable speed drive ATV950 wall mount, motor: 90 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 75 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 90 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 75 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 45 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 37 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 30 kW, 200...240 V, variable speed drive ATV650 wall mount, motor: 90 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 75 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 90 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 75 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 45 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 37 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 30 kW, 200...240 V
Switching frequency 2.5...6 kHz
Height 350 mm
Maximum output frequency 100 Hz
Environment
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to IEC 61800-5-1
IP degree of protection IP00
Environmental characteristic dust pollution resistance class 3S3 conforming to IEC 60721-3-3, chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, biological pollution resistance class 3B1 conforming to IEC 60721-3-3
Ambient air temperature for operation -15-50 °C (without current derating), 50-60 °C (with current derating 1.5 % per °C)
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 73.000 cm
Package 1 Width 45.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 98.000 kg

Related products

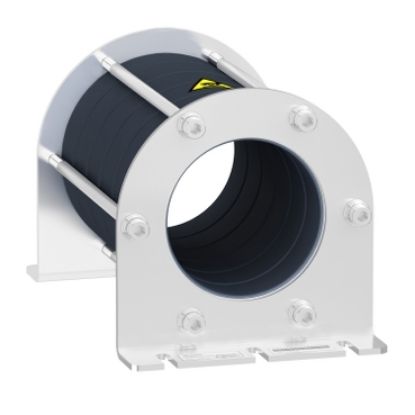

Picture of common mode filter for bearing current reduction, 180µH
