Picture of output dv dt filter, Altivar, for variable speed drive, 0.75 to 2.2kW, 6A, IP20
SKU:

VW3A5301

output dv dt filter, Altivar, for variable speed drive, 0.75 to 2.2kW, 6A, IP20

$500.63
Availability: Please contact our sales team on 1300 724 622.
Product Selector
output dv dt filter, Altivar, for variable speed drive, 0.75 to 2.2kW, 6A, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

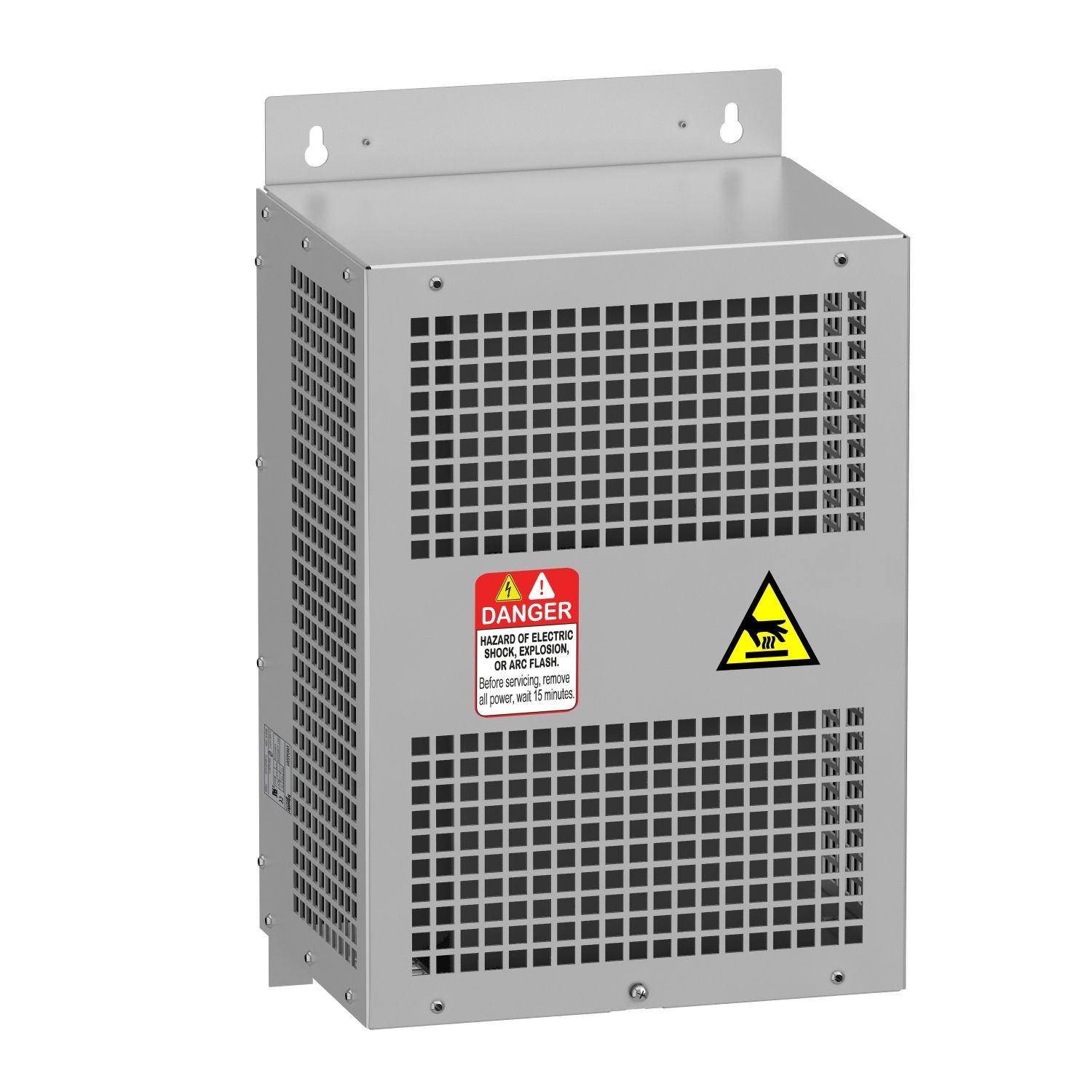

This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 6A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 11kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Machine ATV340, Easy Altivar 610, Altivar Process ATV900, Altivar Process ATV600
[In] rated current 6 A
Product specific application output filter
Product compatibility ATV950 variable speed drive wall mount - 2.2 kW, 380...480 V, ATV950 variable speed drive wall mount - 1.5 kW, 380...480 V, ATV950 variable speed drive wall mount - 0.75 kW, 380...480 V, ATV930 variable speed drive wall mount - 0.75 kW, 200...240 V, ATV930 variable speed drive wall mount - 2.2 kW, 380...480 V, ATV930 variable speed drive wall mount - 1.5 kW, 380...480 V, ATV930 variable speed drive wall mount - 0.75 kW, 380...480 V, ATV610 variable speed drive - 2.2 kW, 380...415 V, ATV610 variable speed drive - 1.5 kW, 380...415 V, ATV610 variable speed drive - 0.75 kW, 380...415 V, ATV650 variable speed drive wall mount - 2.2 kW, 380...480 V, ATV650 variable speed drive wall mount - 1.5 kW, 380...480 V, ATV650 variable speed drive wall mount - 0.75 kW, 380...480 V, ATV630 variable speed drive wall mount - 0.75 kW, 200...240 V, ATV630 variable speed drive wall mount - 2.2 kW, 380...480 V, ATV630 variable speed drive wall mount - 1.5 kW, 380...480 V, ATV630 variable speed drive wall mount - 0.75 kW, 380...480 V
Sale per indivisible quantity 1
Product or component type dv/dt filter
Electrical connection terminal block, connection capacity: 6 mm² / AWG 10
Complementary
Depth 215 mm
Width 295 mm
Thermal losses 16 W at 4 kHz
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
DV/dt 3000 V/µs max at 380...480 V, 3000 V/µs max at 200...240 V
Net weight 11 kg
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Maximum motor cable length 300 m shielded cable, 300 m unshielded cable
Height 535 mm
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP21 (with kit VW3A53902), IP20
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 52.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 38.000 kg
