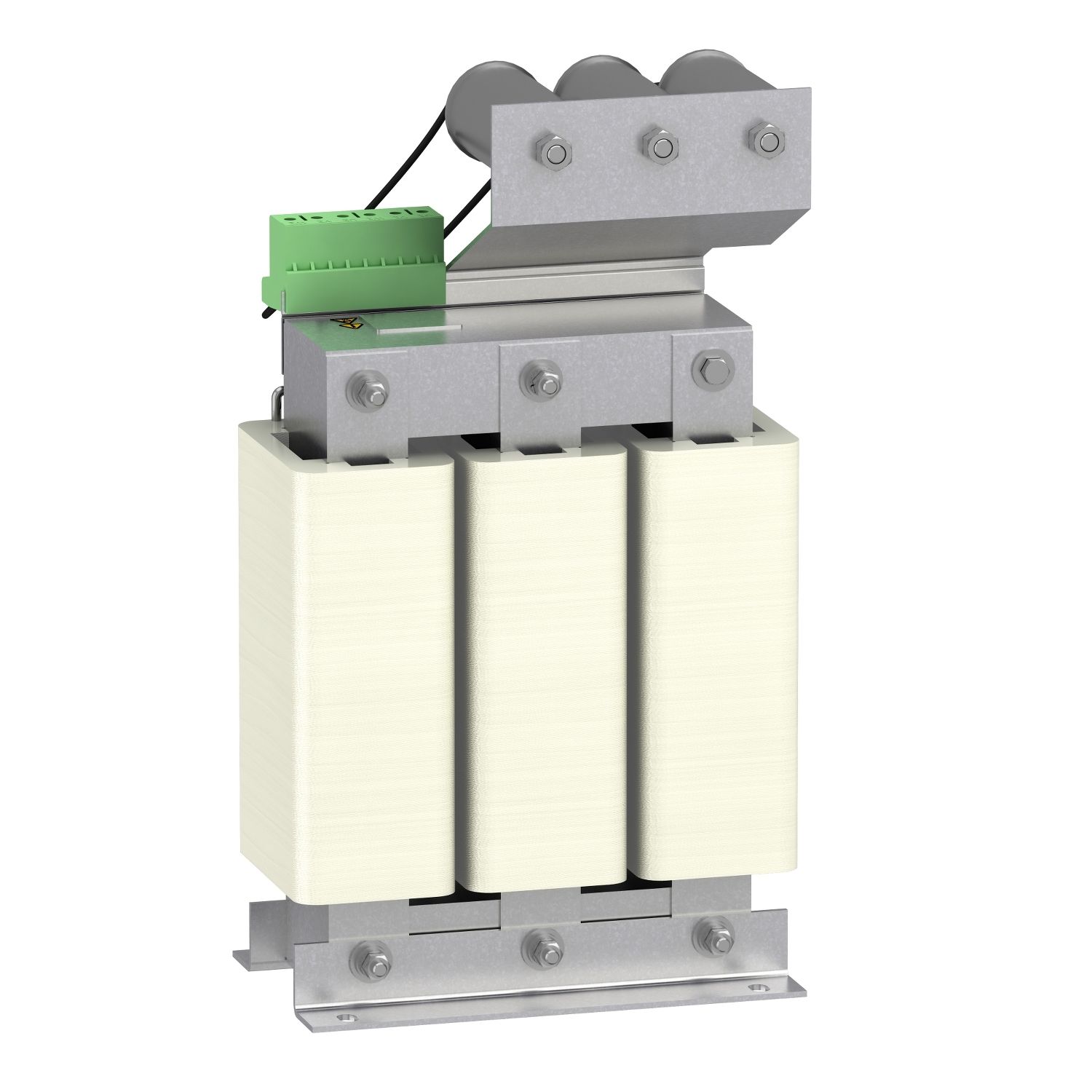

Picture of Sinus filter - 28 A - for Altivar Process variable speed drives
SKU:

VW3A5216

Sinus filter - 28 A - for Altivar Process variable speed drives

$2,934.85
Available for Shipping : 08-Jul-2025
Product Selector
Sinus filter - 28 A - for Altivar Process variable speed drives
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar Process ATV900
[In] rated current 28 A
Thermal losses 280 W, 115 °C
Product specific application output filter
Product compatibility ATV630 variable speed drive wall mount, 15 hp, 600 V three phase, ATV930 variable speed drive wall mount - 22 kW, 500...690 V three phase, ATV930 variable speed drive wall mount - 18.5 kW, 500...690 V three phase, ATV930 variable speed drive wall mount - 15 kW, 500...690 V three phase, ATV930 variable speed drive wall mount - 11 kW, 500...690 V three phase, ATV630 variable speed drive wall mount - 22 kW, 500...690 V three phase, ATV630 variable speed drive wall mount - 18.5 kW, 500...690 V three phase, ATV630 variable speed drive wall mount - 15 kW, 500...690 V three phase, ATV930 variable speed drive wall mount, 30 hp, 600 V three phase, ATV930 variable speed drive wall mount, 25 hp, 600 V three phase, ATV930 variable speed drive wall mount, 20 hp, 600 V three phase, ATV930 variable speed drive wall mount, 15 hp, 600 V three phase, ATV630 variable speed drive wall mount, 30 hp, 600 V three phase, ATV630 variable speed drive wall mount, 25 hp, 600 V three phase, ATV630 variable speed drive wall mount, 20 hp, 600 V three phase, ATV630 variable speed drive wall mount - 11 kW, 500...690 V three phase
Permissible voltage 690 V AC
Product or component type sinus filter
Switching frequency 2 kHz
Maximum output frequency 70 Hz
Complementary
Max current 1.5 x nominal current (duration = 60 s)
Electrical connection terminal
Net weight 25.4 kg
Environment
IP degree of protection IP00
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
Ambient air temperature for storage -40-65 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-45 °C
Standards UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 32.0 cm
Package 1 Width 42.0 cm
Package 1 Length 55.0 cm
Package 1 Weight 34.0 kg
