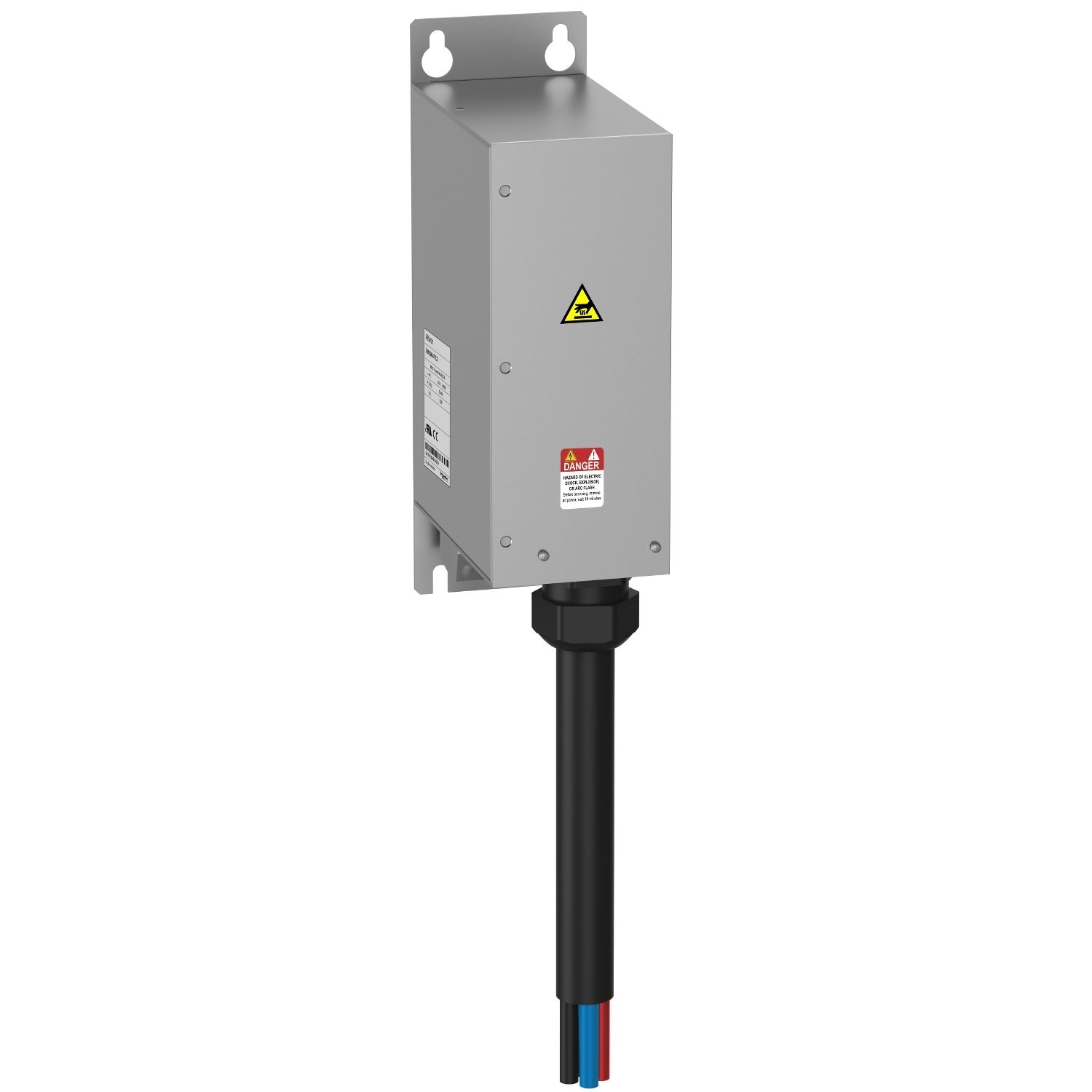

Picture of additionnal EMC filter - 70 A - IP20
SKU:

VW3A4712

additionnal EMC filter - 70 A - IP20

$1,800.00
Available for Shipping : 30-Oct-2024
Product Selector
additionnal EMC filter - 70 A - IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Thermal losses 10 W
Range compatibility Altivar Machine ATV340
[In] rated current 70 A
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV340 motor: 22 kW, 380...480 V, variable speed drive ATV340 motor: 18.5 kW, 380...480 V
Range of product Altivar
Complementary
Depth 180 mm
Width 100 mm
Electrical connection terminal 35 mm² AWG 3
Network rated voltage 380-480 V
Earth leakage current 3.98 mA at 400 V 50 Hz TN
Net weight 6.1 kg
Maximum motor cable length 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V, 100 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V
Tolerance 10 %
Height 330 mm
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
IP degree of protection IP20mounting side by side
Relative humidity 5-95 % without condensation conforming to IEC 61800-5-1
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 28.800 cm
Package 1 Width 37.500 cm
Package 1 Length 53.000 cm
Package 1 Weight 7.416 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 38.164 kg
