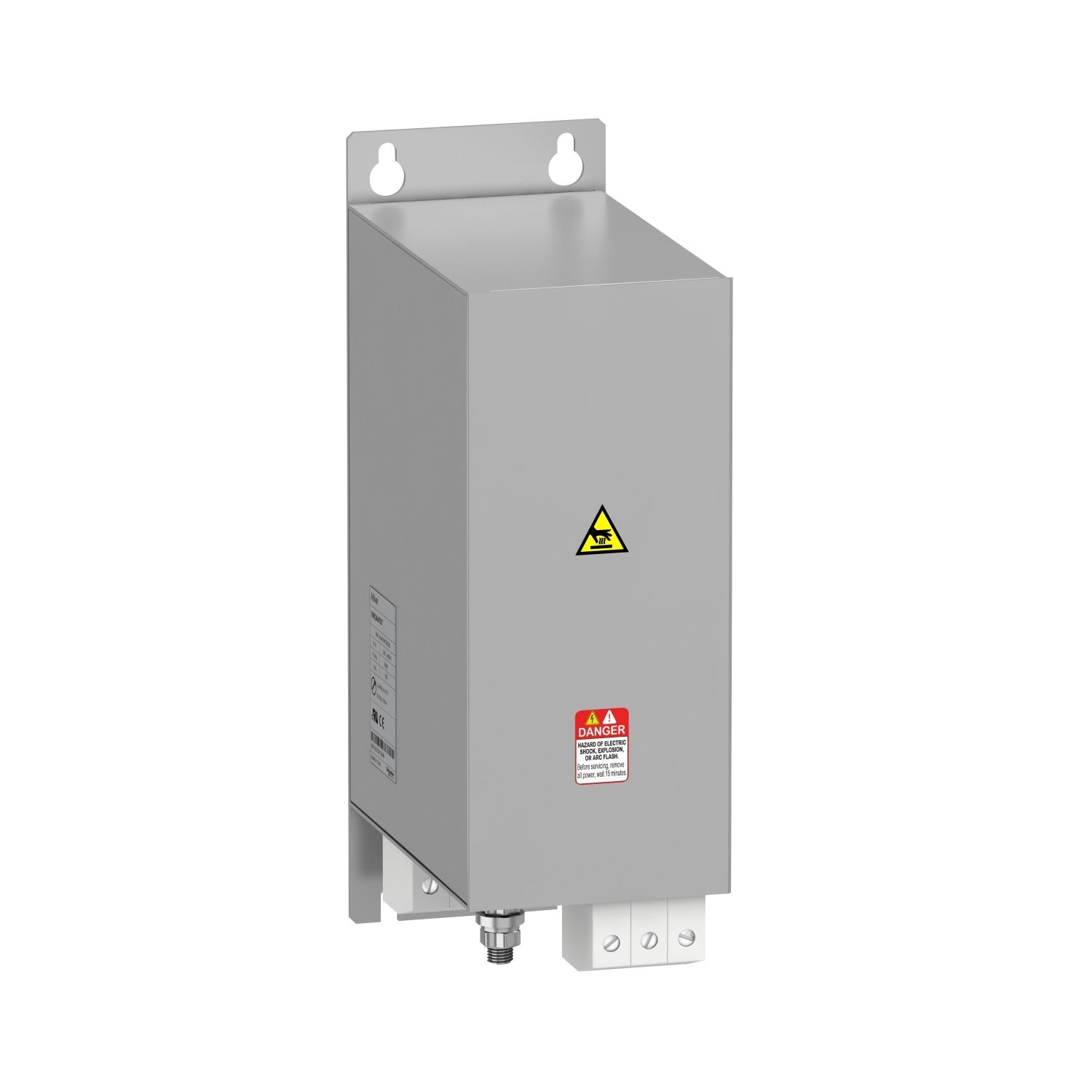

Picture of EMC radio interference input filter - for variable speed drive - 160 A
SKU:

VW3A4707

EMC radio interference input filter - for variable speed drive - 160 A

$2,496.40
Available for Shipping : 05-Nov-2024
Product Selector
EMC radio interference input filter - for variable speed drive - 160 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Thermal losses 25 W
Range compatibility Altivar Process ATV600, Altivar Machine ATV340, Altivar Process ATV900
[In] rated current 160 A
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV340 motor: 45 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 37 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 30 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 37 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 30 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V
Range of product Altivar
Complementary
Depth 240 mm
Width 130 mm
Electrical connection terminal 150 mm² 300 kcmil
Network rated voltage 380-480 V, 200-240 V
Earth leakage current 13.9 mA at 400 V 50 Hz TT, 13.9 mA at 400 V 50 Hz TN
Net weight 8.5 kg
Maximum motor cable length 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V, 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V
Tolerance 10 %
Height 395 mm
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
IP degree of protection IP21with kit VW3A47907, IP20mounting side by side
Relative humidity 5-95 % without condensation conforming to IEC 61800-5-1
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 29.500 cm
Package 1 Length 46.000 cm
Package 1 Weight 9.871 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 126.452 kg
