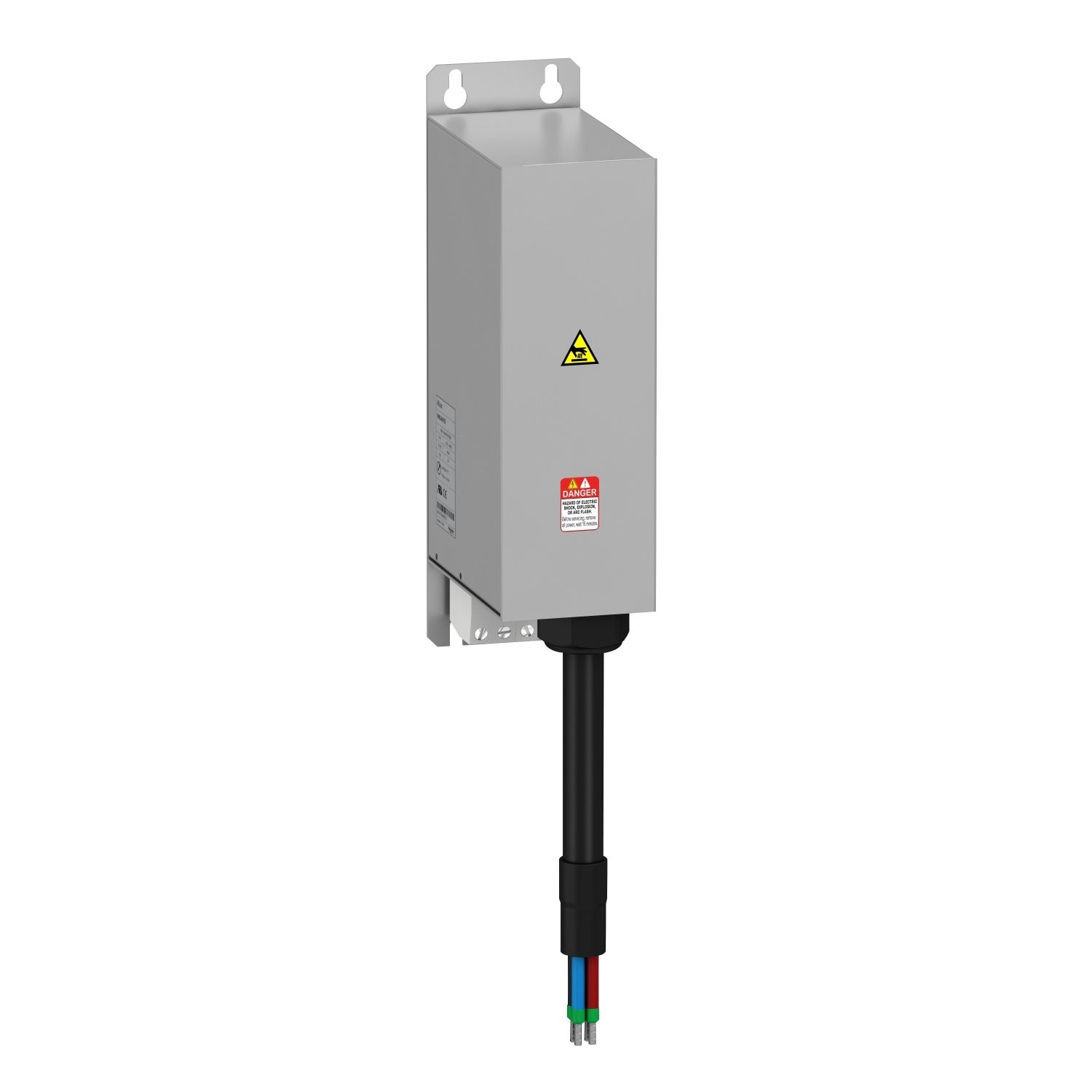

Picture of EMC radio interference input filter, for variable speed drive, 35A
SKU:

VW3A4703

EMC radio interference input filter, for variable speed drive, 35A

Old price: $1,042.80 INC GST
$797.74 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
EMC radio interference input filter, for variable speed drive, 35A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 35A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 4.1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

Products specifications

Attribute name Attribute value
Main
Thermal losses 4.8 W
Range compatibility Altivar Process ATV900, Altivar Process ATV600
[In] rated current 35 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV950 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 11 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 7.5 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 7.5 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 5.5 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 4 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 11 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 7.5 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 11 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 7.5 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 7.5 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 5.5 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 4 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 11 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 7.5 kW, 380...480 V
Range of product Altivar
Complementary
Depth 155 mm
Width 80 mm
Electrical connection terminal 6 mm² AWG 8
Network rated voltage 200-240 V, 380-480 V
Earth leakage current 7.6 mA at 400 V 50 Hz TT, 7.6 mA at 400 V 50 Hz TN
Net weight 4.1 kg
Maximum motor cable length 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V, 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V
Tolerance 10 %
Height 302 mm
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
IP degree of protection IP21with kit VW3A47903, IP20mounting side by side
Relative humidity 5-95 % without condensation conforming to IEC 61800-5-1
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 26.500 cm
Package 1 Length 42.500 cm
Package 1 Weight 4.402 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 95.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 56.500 kg
