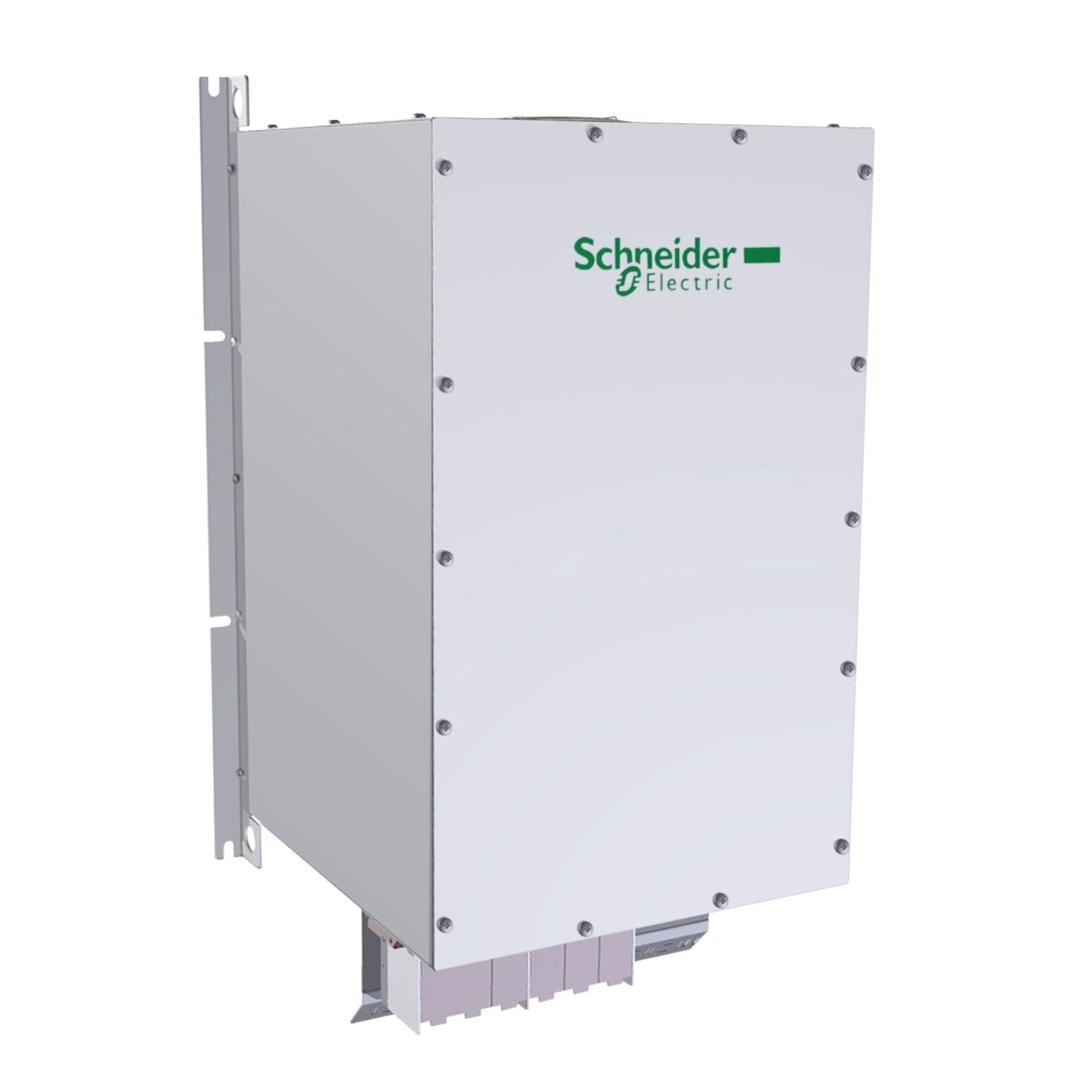

Picture of passive filter, Altivar, 190A, 460V, 60Hz, for variable speed drive
SKU:

VW3A46171

passive filter, Altivar, 190A, 460V, 60Hz, for variable speed drive

$27,954.20
Available for Shipping : 13-Feb-2025
Product Selector
passive filter, Altivar, 190A, 460V, 60Hz, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product specific application reduction of current harmonics
Product or component type passive filter
Complementary
Supply frequency 60 Hz +/- 2 %
Range compatibility Altivar Process ATV900, Altivar 71, Altivar Process ATV600, Altivar 61
Max current 1.5 x nominal current (duration = 60 s)
Quantity per drive 1 filter per drive for variable speed drive ATV930 wall mount, motor: 110 kW/150 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 110 kW/150 hp, 1 filter per drive for variable speed drive ATV71Q motor: 110 kW/150 hp, 1 filter per drive for variable speed drive ATV61Q motor: 110 kW/150 hp, 1 filter per drive for variable speed drive ATV71H motor: 110 kW/150 hp, 1 filter per drive for variable speed drive ATV61H motor: 110 kW/150 hp
[Us] rated supply voltage 480 V +/- 10 %
Electrical insulation class class F
Net weight 135 kg
Network number of phases 3 phases
Efficiency 98 %
THDI 5 % for variable speed drive ATV930 motor: 110 kW/150 hp, 5 % for variable speed drive ATV630 motor: 110 kW/150 hp, 5 % for variable speed drive ATV71Q motor: 110 kW/150 hp, 5 % for variable speed drive ATV61Q motor: 110 kW/150 hp, 5 % for variable speed drive ATV71H motor: 110 kW/150 hp, 5 % for variable speed drive ATV61H motor: 110 kW/150 hp
Thermal losses 1080 W
[In] rated current 190 A for output, 183 A for input
Electrical connection X1-1...X2-3 terminal, connection capacity: 2.5...90 mm², A, B terminal, connection capacity: 2.5 mm²
Cos phi 0.99-0.99 (100 % of line current), 0.85-0.85 (75 % of line current), 1-1 (150 % of line current)
Environment
Operating altitude > 1000...4000 m with current derating 5 % per 1000 m, <= 1000 m without current derating
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-65 °C during transport, -25-55 °C storage in original packaging
IP degree of protection IP55 (enclosure mounting), IP20
Vibration resistance 0.7 gn (f= 13.2-150 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 5-13.2 Hz) conforming to IEC 60068-2-6
Ambient air temperature for operation 5-45 °C (without current derating), 45-60 °C (with current derating 3 % per °C)
Standards IEC 61000-3-2, IEC 61000-2-2, IEC 61000-3-4, G5/4 engineering recommendation, IEC 61000-3-12, IEC 61000-2-4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 61.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 147.2 kg
