SKU:

VW3A46166

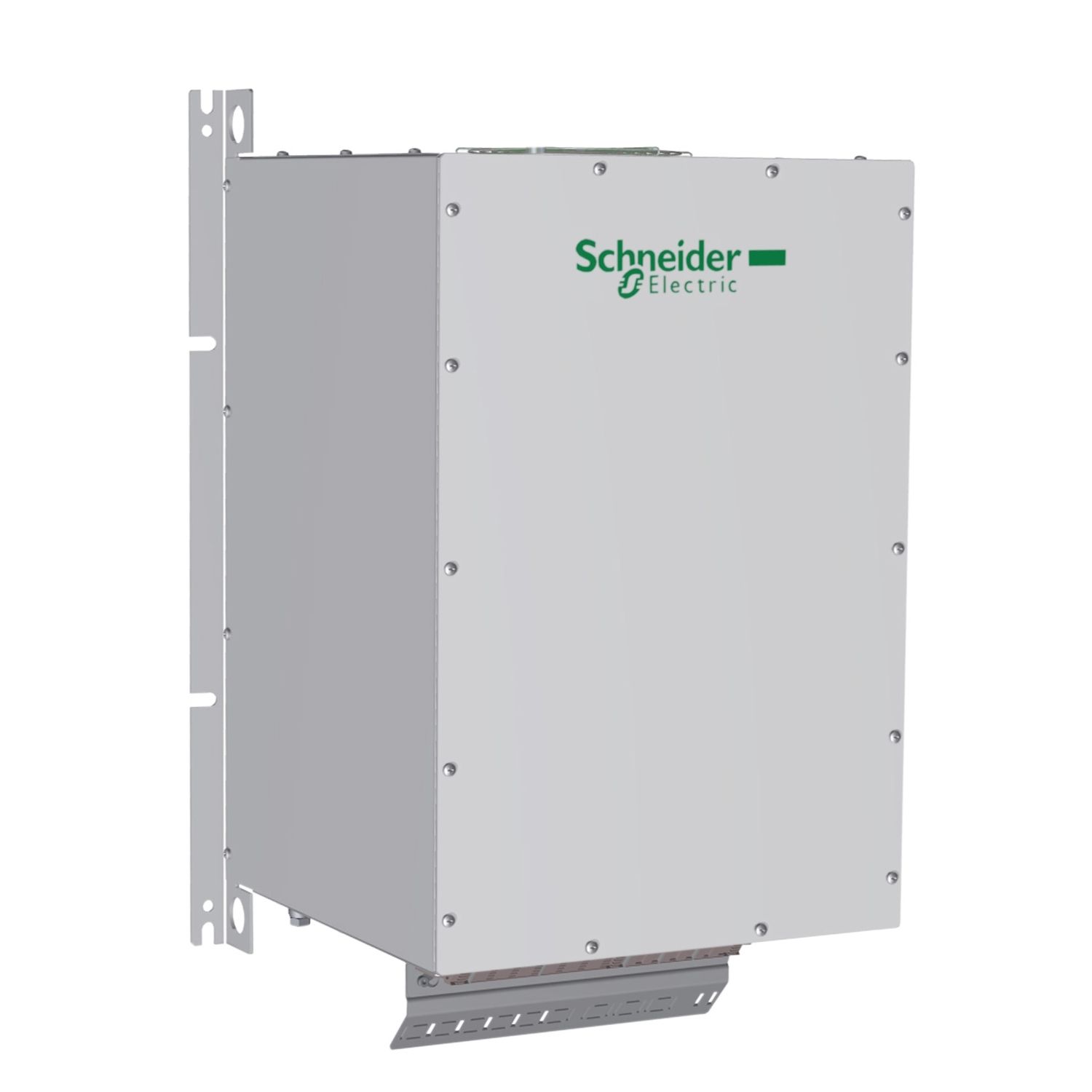

passive filter, Altivar, 62A, 460V, 60Hz, for variable speed drive

$14,573.48
Available for Shipping : 18-Mar-2025
passive filter, Altivar, 62A, 460V, 60Hz, for variable speed drive
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Product specific application reduction of current harmonics
Product or component type passive filter
Complementary
Supply frequency 60 Hz +/- 2 %
Range compatibility Altivar 71, Altivar 61, Altivar Process ATV900, Altivar Process ATV600
Max current 1.5 x nominal current (duration = 60 s)
Quantity per drive 1 filter per drive for variable speed drive ATV930 wall mount, motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV950 wall mount, motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV650 wall mount, motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV71W motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV71H motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV61H motor: 37 kW/50 hp, 1 filter per drive for variable speed drive ATV61W motor: 37 kW/50 hp
[Us] rated supply voltage 480 V +/- 10 %
Electrical insulation class class F
Net weight 76 kg
Network number of phases 3 phases
Efficiency 98 %
THDI 5 % for variable speed drive ATV930 motor: 37 kW/50 hp, 5 % for variable speed drive ATV950 motor: 37 kW/50 hp, 5 % for variable speed drive ATV630 motor: 37 kW/50 hp, 5 % for variable speed drive ATV650 motor: 37 kW/50 hp, 5 % for variable speed drive ATV61W motor: 37 kW/50 hp, 10 % for variable speed drive ATV71W motor: 37 kW/50 hp, 10 % for variable speed drive ATV71H motor: 37 kW/50 hp, 10 % for variable speed drive ATV61H motor: 37 kW/50 hp
Thermal losses 574 W
[In] rated current 62 A for output, 60 A for input
Electrical connection X1-1...X2-3 terminal, connection capacity: 2.5...50 mm², A, B terminal, connection capacity: 2.5 mm²
Cos phi 0.99-0.99 (100 % of line current), 0.85-0.85 (75 % of line current), 1-1 (150 % of line current)
Environment
Operating altitude > 1000...4000 m with current derating 5 % per 1000 m, <= 1000 m without current derating
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-65 °C during transport, -25-55 °C storage in original packaging
IP degree of protection IP55 (enclosure mounting), IP20
Vibration resistance 0.7 gn (f= 13.2-150 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 5-13.2 Hz) conforming to IEC 60068-2-6
Ambient air temperature for operation 5-45 °C (without current derating), 45-60 °C (with current derating 3 % per °C)
Standards IEC 61000-3-4, IEC 61000-3-2, G5/4 engineering recommendation, IEC 61000-3-12, IEC 61000-2-2, IEC 61000-2-4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 61.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 87.2 kg
