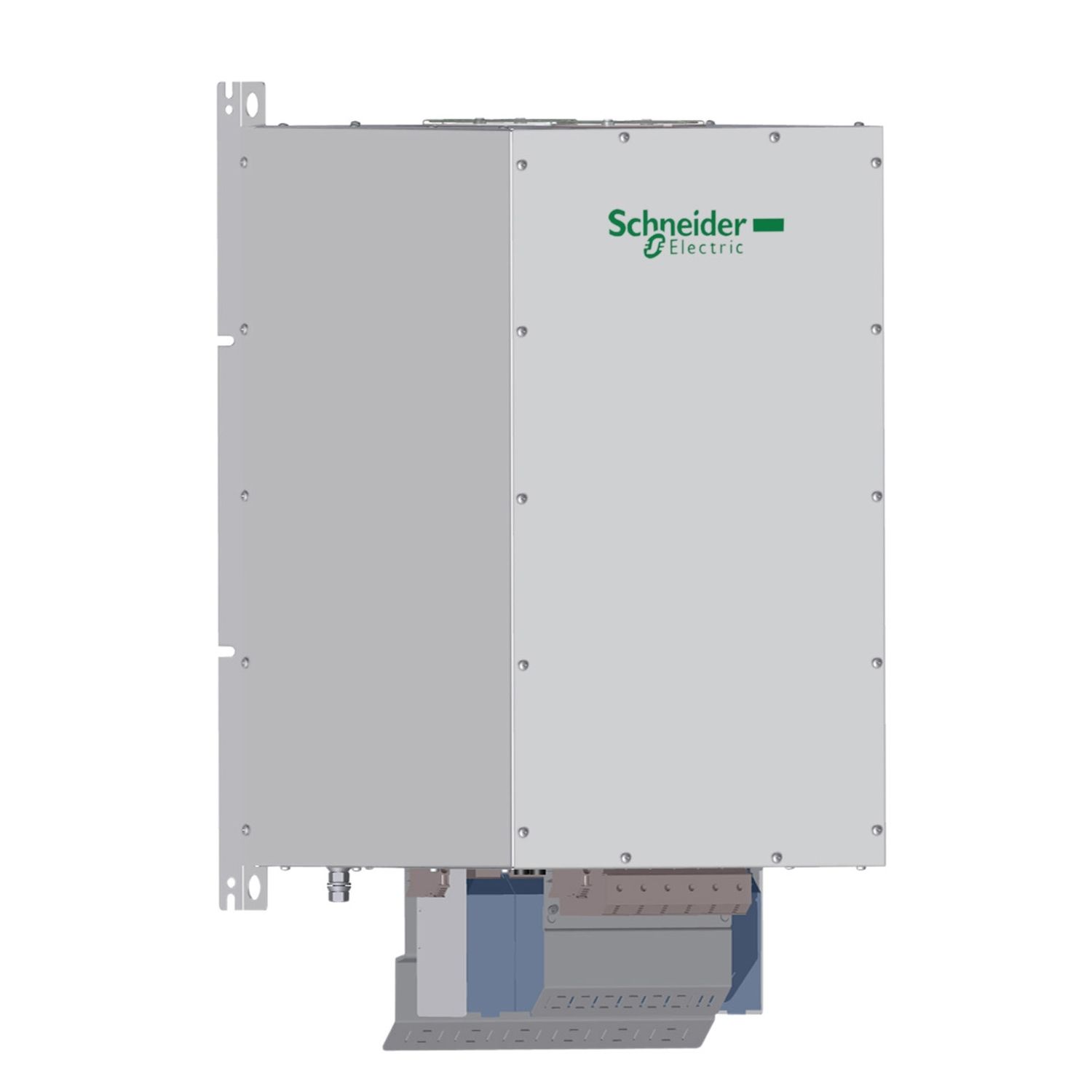

Picture of passive filter, Altivar, 450A, 400V, 50Hz, for variable speed drive
SKU:

VW3A46138

passive filter, Altivar, 450A, 400V, 50Hz, for variable speed drive

$24,361.64
Available for Shipping : 17-Feb-2025
Product Selector
passive filter, Altivar, 450A, 400V, 50Hz, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product specific application reduction of current harmonics
Product or component type passive filter
Complementary
Supply frequency 50 Hz +/- 2 %
Range compatibility Altivar Process ATV900, Altivar 71, Altivar 61, Altivar Process ATV600
Max current 1.5 x nominal current (duration = 60 s)
Quantity per drive 1 filter per drive for variable speed drive ATV930 wall mount, motor: 250 kW/400 hp, 1 filter per drive for variable speed drive ATV930 wall mount, motor: 220 kW/350 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 250 kW/400 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 220 kW/350 hp, 2 filters per drive for variable speed drive ATV71Q motor: 500 kW/700 hp, 2 filters per drive for variable speed drive ATV61Q motor: 500 kW/700 hp, 2 filters per drive for variable speed drive ATV71H motor: 500 kW/700 hp, 2 filters per drive for variable speed drive ATV61H motor: 500 kW/700 hp, 2 filters per drive for variable speed drive ATV61H motor: 250 kW/400 hp, 1 filter per drive for variable speed drive ATV71Q motor: 220 kW/350 hp, 1 filter per drive for variable speed drive ATV61Q motor: 220 kW/350 hp, 2 filters per drive for variable speed drive ATV71H motor: 250 kW/400 hp
[Us] rated supply voltage 400 V +/- 10 %
Electrical insulation class class F
Net weight 272 kg
Network number of phases 3 phases
Efficiency 98 %
THDI 5 % for variable speed drive ATV930 motor: 250 kW/400 hp, 5 % for variable speed drive ATV930 motor: 220 kW/350 hp, 5 % for variable speed drive ATV630 motor: 250 kW/400 hp, 5 % for variable speed drive ATV630 motor: 220 kW/350 hp, 5 % for variable speed drive ATV71Q motor: 500 kW/700 hp, 5 % for variable speed drive ATV61Q motor: 500 kW/700 hp, 5 % for variable speed drive ATV71H motor: 500 kW/700 hp, 5 % for variable speed drive ATV61H motor: 500 kW/700 hp, 5 % for variable speed drive ATV61H motor: 250 kW/400 hp, 5 % for variable speed drive ATV71Q motor: 220 kW/350 hp, 5 % for variable speed drive ATV61Q motor: 220 kW/350 hp, 5 % for variable speed drive ATV71H motor: 250 kW/400 hp
Thermal losses 1852 W
[In] rated current 450 A for output, 433 A for input
Electrical connection X1-1...X2-3 terminal, connection capacity: 25...300 mm², A, B terminal, connection capacity: 2.5 mm²
Cos phi 0.99-0.99 (100 % of line current), 0.85-0.85 (75 % of line current), 1-1 (150 % of line current)
Environment
Operating altitude > 1000...4000 m with current derating 5 % per 1000 m, <= 1000 m without current derating
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-65 °C during transport, -25-55 °C storage in original packaging
IP degree of protection IP55 (enclosure mounting), IP20
Vibration resistance 0.7 gn (f= 13.2-150 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 5-13.2 Hz) conforming to IEC 60068-2-6
Ambient air temperature for operation 5-45 °C (without current derating), 45-60 °C (with current derating 3 % per °C)
Standards IEC 61000-3-2, IEC 61000-2-4, IEC 61000-3-4, IEC 61000-3-12, IEC 61000-2-2, G5/4 engineering recommendation
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 71.000 cm
Package 1 Width 80.000 cm
Package 1 Length 120.000 cm
Package 1 Weight 302.6 kg
