Picture of Altivar 31, Line/motor choke, 0.5 mH, 60 A, 3 phases, 94 W, for variable speed drive
SKU:

VW3A4555

Altivar 31, Line/motor choke, 0.5 mH, 60 A, 3 phases, 94 W, for variable speed drive

$1,322.92
Available for Shipping : 30-Oct-2024
Product Selector
Altivar 31, Line/motor choke, 0.5 mH, 60 A, 3 phases, 94 W, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

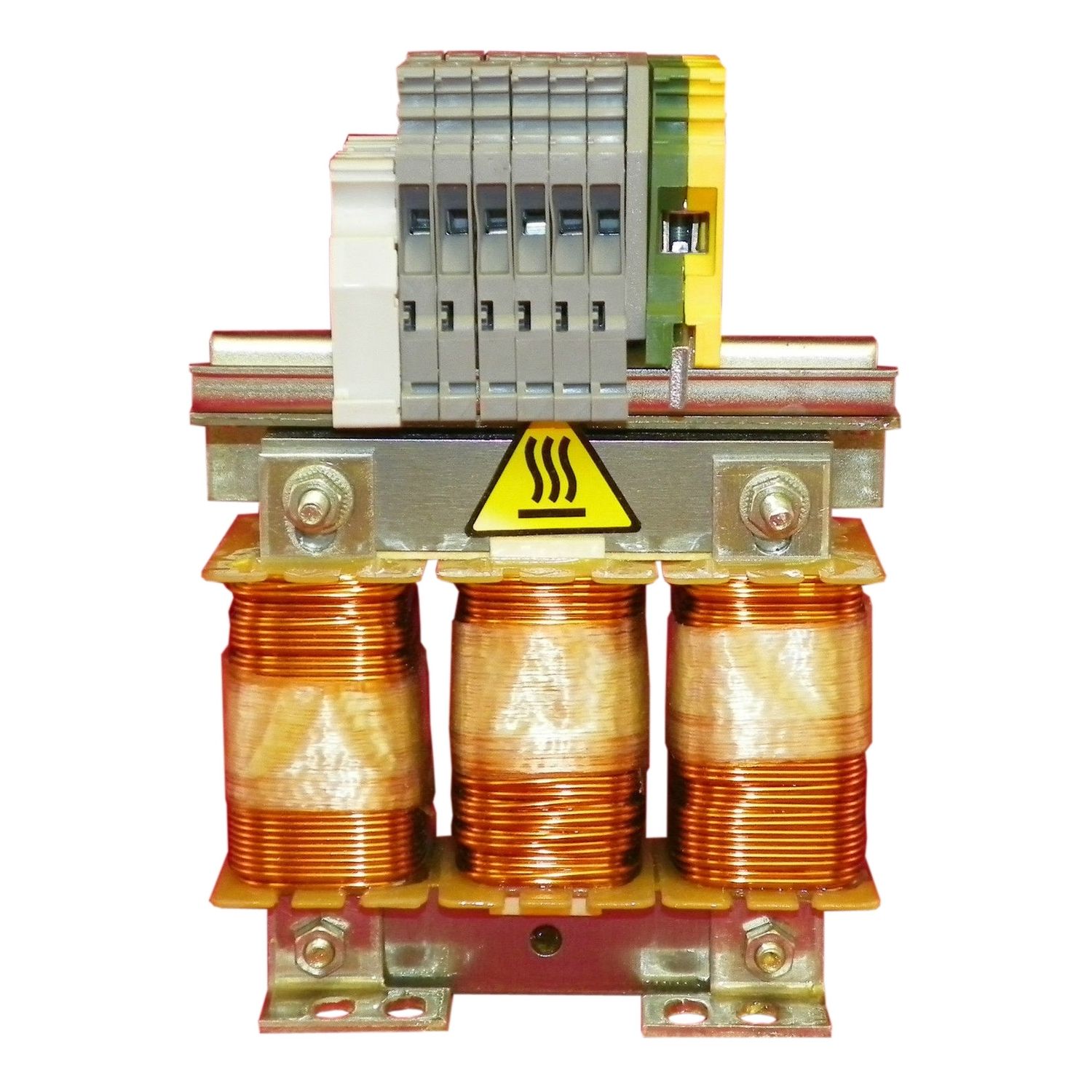

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.5mH. It weighs 11kg and its dimensions are, 180mm wide, 210mm high, 165mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of current harmonics, reduction of overvoltages at motor terminals
Range compatibility Easy Altivar 310, Lexium 32, Altivar 61, Altivar Process ATV600, Altivar Process ATV900, Altivar 312, Altivar Machine ATV320, Altivar 71, Lexium 62, Altivar Machine ATV340, Altivar 32
[In] rated current 60 A
Electrical connection terminal 35 mm² / AWG 0, 2.5-3 N.m
Product compatibility variable speed drive ATV930 motor: 600 V - three phase - line choke - 60 hp - 1 per drive, variable speed drive ATV930 motor: 600 V - three phase - line choke - 50 hp - 1 per drive, variable speed drive ATV930 motor: 600 V - three phase - line choke - 40 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 60 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 50 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 40 hp - 1 per drive, variable speed drive ATV930 motor: 45 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 37 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 30 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 45 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 37 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 30 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 15 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 11 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 15 kW 380...500 V - three phase - motor choke - 1 per drive, variable speed drive ATV340 motor: 22 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 motor: 18 kW 380...480 V - line choke - 1 per drive, ATV32HD15N4 - motor choke - 1 per drive, ATV312HD15M3 - line choke - 1 per drive, ATV312HD11M3 - line choke - 1 per drive, ATV71WD22N4 - line choke - 1 per drive, ATV71WD18N4 - line choke - 1 per drive, ATV71HU75M3 - line choke - 1 per drive, ATV71HD45Y - line choke - 1 per drive, ATV71HD37Y - line choke - 1 per drive, ATV71HD30Y - line choke - 1 per drive, ATV71HD22N4 - line choke - 1 per drive, ATV71HD18N4 - line choke - 1 per drive, ATV71HD11M3X - line choke - 1 per drive, ATV61WD22N4C - line choke - 1 per drive, ATV61WD22N4 - line choke - 1 per drive, ATV61WD18N4C - line choke - 1 per drive, ATV61WD18N4 - line choke - 1 per drive, ATV61KD15N4 - motor choke - 1 per drive, ATV61HU75M3 - line choke - 1 per drive, ATV61HD45Y - line choke - 1 per drive, ATV61HD37Y - line choke - 1 per drive, ATV61HD30Y - line choke - 1 per drive, ATV61HD22N4 - line choke - 1 per drive, ATV61HD18N4 - line choke - 1 per drive, ATV61HD15N4 - motor choke - 1 per drive, ATV61HD11M3X - line choke - 1 per drive, ATV61CD15N4 - motor choke - 1 per drive, variable speed drive ATV340 motor: 15 kW 380...480 V - line choke - 1 per drive, LXM32MC10N4 - line choke - 1 per drive, LXM32MD85N4 - line choke - 1 per drive
Value of inductance 0.5 mH
Network number of phases three phase
Product or component type line/motor choke
Range of product Altivar
Thermal losses 94 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 165 mm
Width 180 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 11 kg
Height 210 mm
Environment
Operating altitude <= 1000 m without derating, <= 1000 m without current derating
IP degree of protection terminals: IP10, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards VDE 0160 level 1, IEC 60076 (with HD398), EN 50178
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.600 cm
Package 1 Width 28.400 cm
Package 1 Length 32.800 cm
Package 1 Weight 11.062 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 105.160 kg
