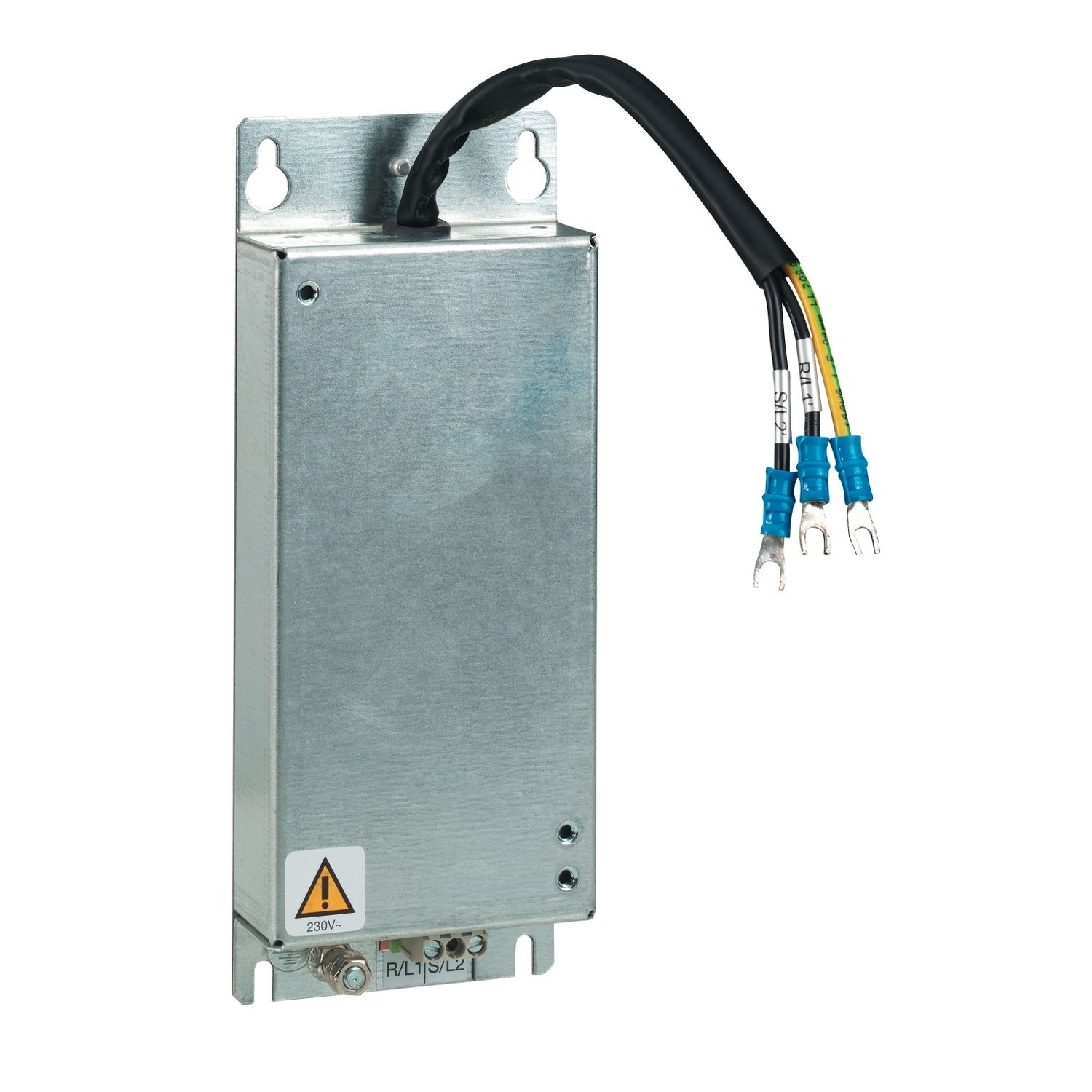

Picture of EMC radio interference input filter - for variable speed drive
SKU:

VW3A4417

EMC radio interference input filter - for variable speed drive

$519.98
Available for Shipping : 05-Nov-2024
Product Selector
EMC radio interference input filter - for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This EMC input filter is an option for variable speed drives of Altivar 12 range. This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. Its dimensions are 117mm wide, 184mm high, and 40mm deep. It provides extra protection against electromagnetic emissions. The choice of the filter depends on the drive rating. It weighs 1.455kg. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). Choosing the proper EMC filter on the drive rating. The product is delivered in one package. The drive is fixed onto the filter with 2 screws. The ATV12 range meets basic machine requirements united with simplicity.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar 12
Product specific application radio interference input filter
Product or component type EMC input filter
Product compatibility ATV12HU22M2, ATV12HU15M2, ATV12H075F1
Range of product Altivar
Complementary
Net weight 1.455 kg
Environment
Standards environment 2 category C3 IEC 61800-3, environment 1 category C3 IEC 61800-3, environment 1 category C2 IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 38.500 cm
Package 1 Length 19.000 cm
Package 1 Weight 990.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 32.500 kg
