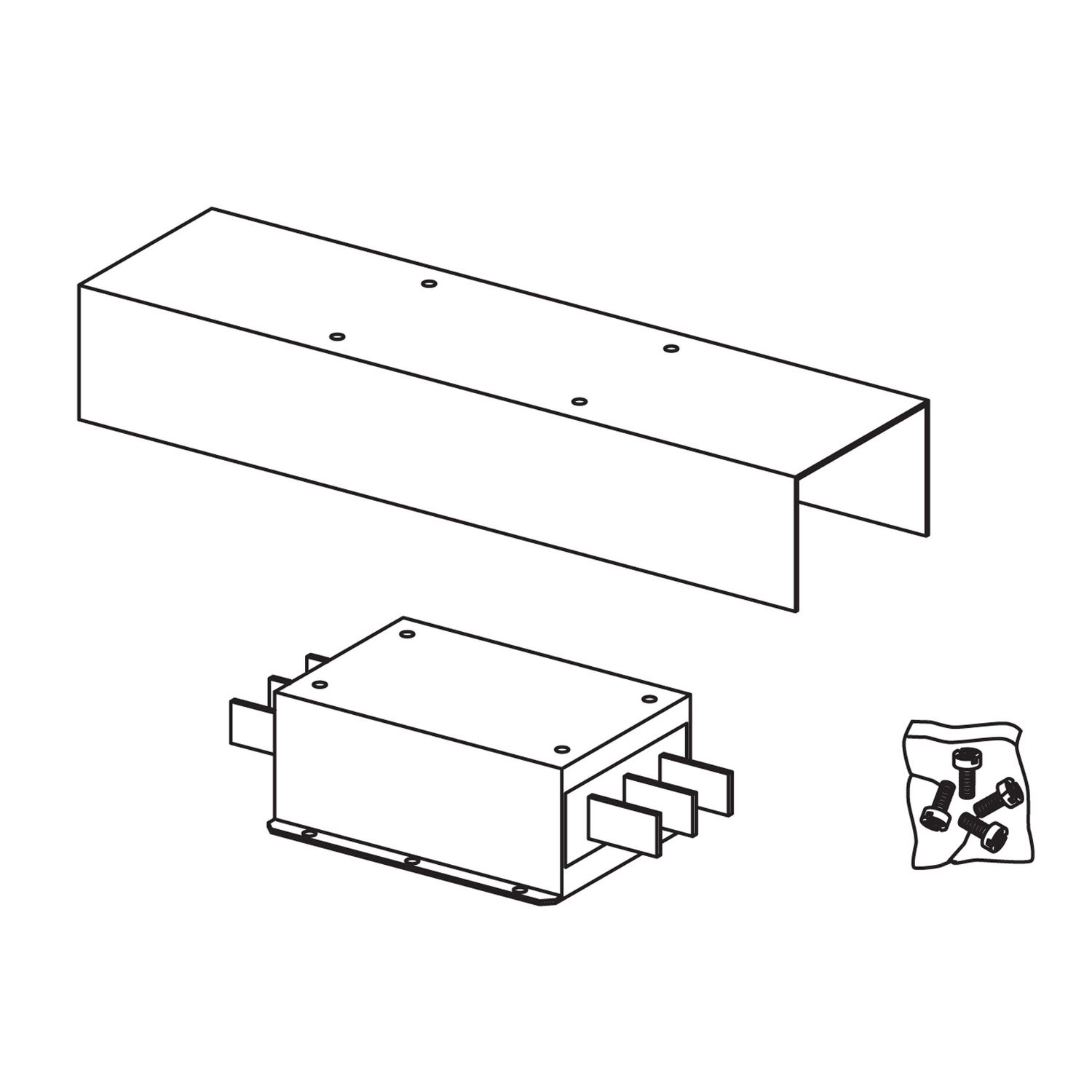

Picture of EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply
SKU:

VW3A4411

EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply

$4,184.74 INC GST
Available for Shipping : 09-Feb-2025
Product Selector
EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Thermal losses 125 W
Range compatibility Altivar 61, Altivar 61Q, Altivar 71Q, Altivar Process ATV600, Altivar 71, Altivar Process ATV900
[In] rated current 336 A, 546 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV930 wall mount, motor: 315 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 250 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 220 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 315 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 250 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 220 kW, 380...480 V, ATV71QC25N4, ATV71QC20N4, ATV71QC16N4, ATV71HC28N4, ATV71HC25N4, ATV71HC20N4, ATV71HC16N4, ATV61QC31N4, ATV61QC25N4, ATV61QC20N4, ATV61HD90M3X, ATV61HC31N4, ATV61HC25N4, ATV61HC22N4
Range of product Altivar
Complementary
Electrical connection M10 bars
Network rated voltage 380-500 V, 200-240 V
Earth leakage current 500 mA at 400 V 50 Hz
Net weight 22 kg, 25 kg
Maximum motor cable length 50 m shielded motor cable conforming to IEC 61800-3 category C1, 300 m shielded motor cable conforming to IEC 61800-3 category C2
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP30with kits VW3A9601, 602, IP00
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-85 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -25-45 °C
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 50.0 cm
Package 1 Width 80.0 cm
Package 1 Length 120.0 cm
Package 1 Weight 68.0 kg
