Picture of additionnal EMC input filter - 3-phase supply - 180 A
SKU:

VW3A4408

additionnal EMC input filter - 3-phase supply - 180 A

$2,901.34 EXCL GST
Available for Shipping : 16-Feb-2025
Product Selector
additionnal EMC input filter - 3-phase supply - 180 A
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

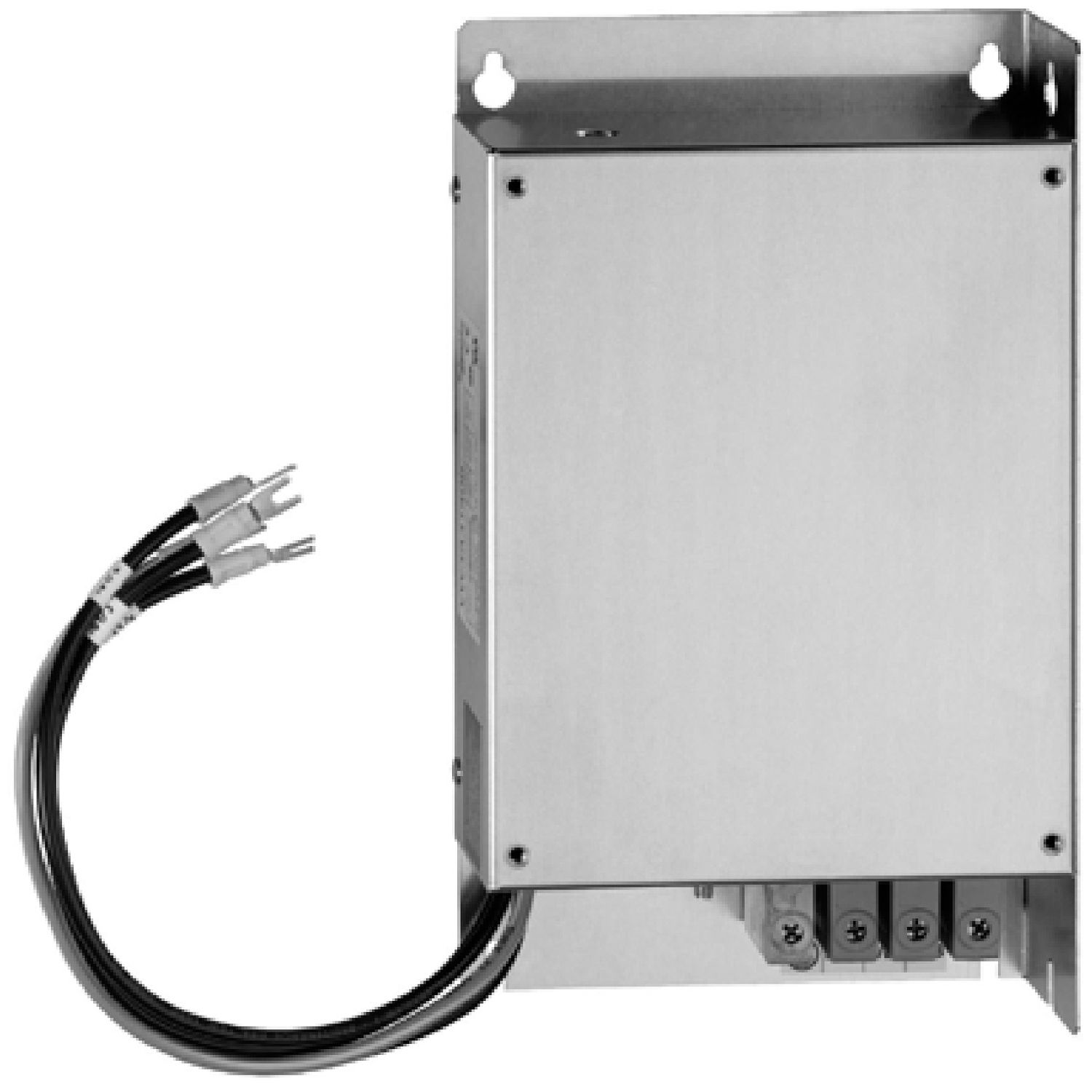

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 180A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 40kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

Products specifications

Attribute name Attribute value
Main
Thermal losses 58 W for ATV61/ATV71 variable speed drives, 23.1 W for ATV21HD30M3X, 34 W for ATV21HD75N4, 18 W for ATV21HD55N4
Range compatibility Altivar 212, Altivar 71, Altivar 61
[In] rated current 180 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility ATV71WD75N4, ATV71WD55N4, ATV71WD45N4, ATV71HD75N4, ATV71HD55N4, ATV71HD45N4, ATV71HD45M3X, ATV71HD37M3X, ATV71HD30M3X, ATV61HD75N4, ATV61HD55N4, ATV61HD45N4, ATV61HD45M3X, ATV61HD37M3X, ATV61HD30M3X, ATV212HD75N4, ATV212HD55N4, ATV212HD30M3X
Range of product Altivar
Complementary
Electrical connection terminal 150 mm² 300 kcmil
Tightening torque 25 N.m
Network rated voltage 200-240 V, 380-500 V
Earth leakage current 86.3 mA at 480 V 60 Hz, 80 mA at 400 V 50 Hz, 193 mA at 480 V 60 Hz, 140 mA at 400 V 50 Hz
Net weight 40 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -40-65 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards EN 133200
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.5 cm
Package 1 Width 56.0 cm
Package 1 Length 105.0 cm
Package 1 Weight 30.0 kg
Unit Type of Package 2 2
Number of Units in Package 2 1
Package 2 Height 150 cm
Package 2 Width 80 cm
Package 2 Length 120 cm
Package 2 Weight 42 kg
Unit Type of Package 3 3
Package 3 Height 150 cm
