Picture of communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20
SKU:

VW3A3725

communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20

$534.22
Available for Shipping : 05-Nov-2024
Product Selector
communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
User guide
Product Page Link
Product Data Sheet

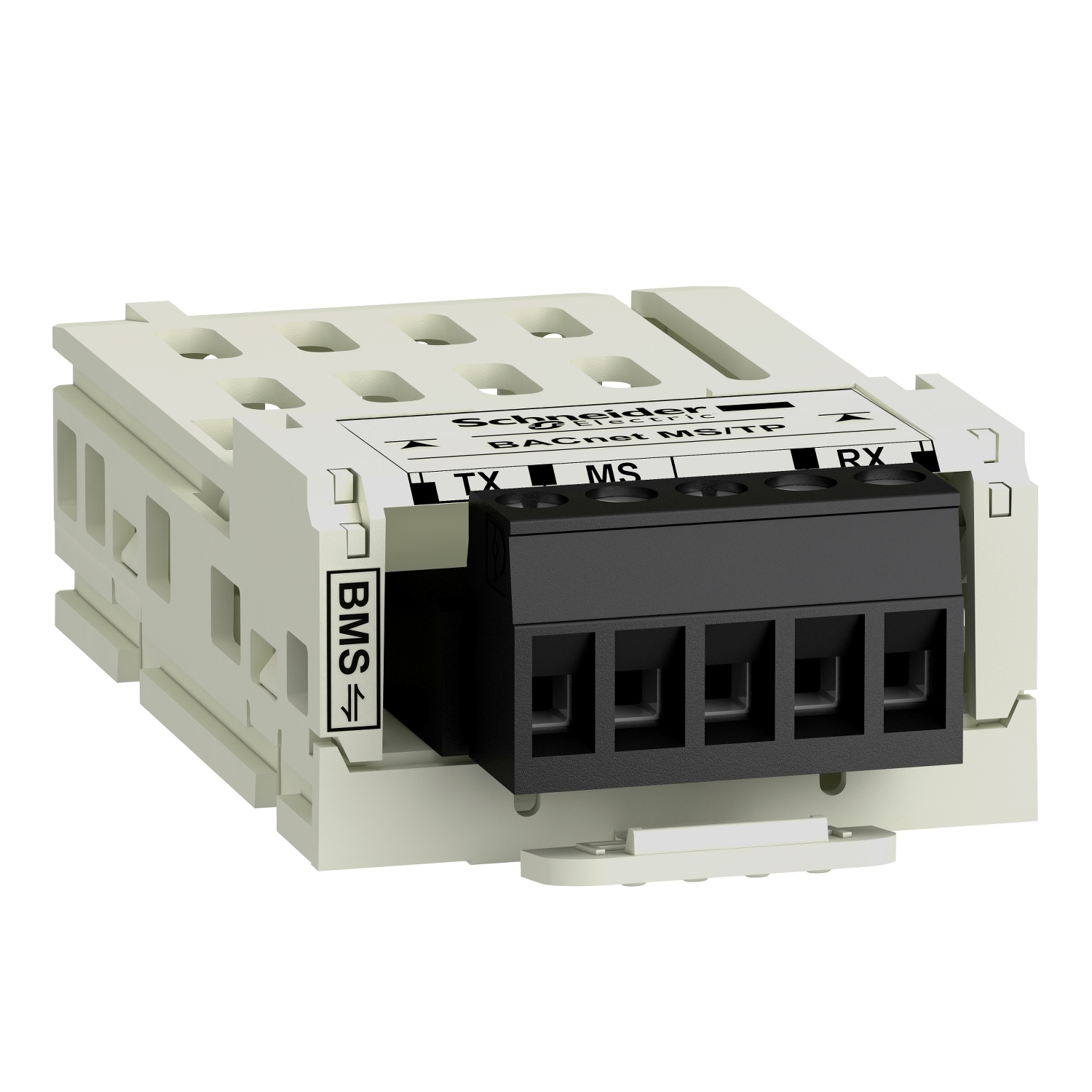

This BACnet MS/TP communication module is an option for variable speed drives of the Altivar range. It is equipped with an RS485 5-pin removable terminal block. It is compatible with Altivar Process drives. This module allows AV, BV, MSV BACnet MS/TP, and COV notification communication services. The transmission rate is up to 76.8kbit/s. It has 4 LEDs: one showing error, one transmission activity, one reception activity (RX), and one module status. It weighs 0.035kg. It enables integration of your variable speed drive in your process control network. Its protection index is IP20, and it conforms to BTL, CSA, IEC 61000 (4-2, 4-3, 4-4, 4-5, 4-6, 6-1, and 6-3), IEC 60730-1, UL508, and UL 873 standards.

Products specifications

Attribute name Attribute value
Main
Product or component type communication module
Range of product Altivar
Complementary
Product compatibility ATV600
Transmission rate 9.6, 19.2, 38.4, 76.8 kbit/s
Range compatibility Altivar Process ATV600, Altivar Process Modular
Display type 1 LED for module status, 1 LED for reception activity (RX), 1 LED for transmission activity, 1 LED for error
Communication port protocol BACnet MS/TP
Communication service COV notification, AV, BV, MSV for BACnet MS/TP
Net weight 0.035 kg
Transmission support medium 2 twisted pairs
Electrical connection screw terminal block 5-pin removable terminal block, BACnet MS/TP
Communication network type RS485
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 15 gn for 11 ms
Vibration resistance 2 gn (f = 13-150 Hz), 1 mm (f = 13-23 Hz), 1.5 mm (f = 3-13 Hz)
Electromagnetic compatibility conducted EMC conforming to IEC 61000-6-3, conducted EMC level 2 conforming to IEC 60730-1, conducted RF disturbances level 3A conforming to IEC 61000-4-6, surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4, radiated RF fields level 3A conforming to IEC 61000-4-3, electrostatic discharge level 3B conforming to IEC 61000-4-2, EMC immunity level 2 conforming to IEC 60730-1, EMC immunity conforming to IEC 61000-6-1
Storage altitude 0-3048 m
Product certifications UL 873, UL 508, CSA, BTL
Ambient air temperature for operation -20-65 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 6.2 cm
Package 1 Length 8.8 cm
Package 1 Weight 64.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.871 kg

Related products

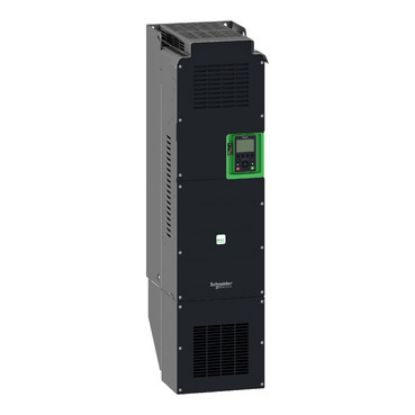

variable speed drive, Altivar Process ATV600, ATV630, 130kW, 380 to 480V, IP00
