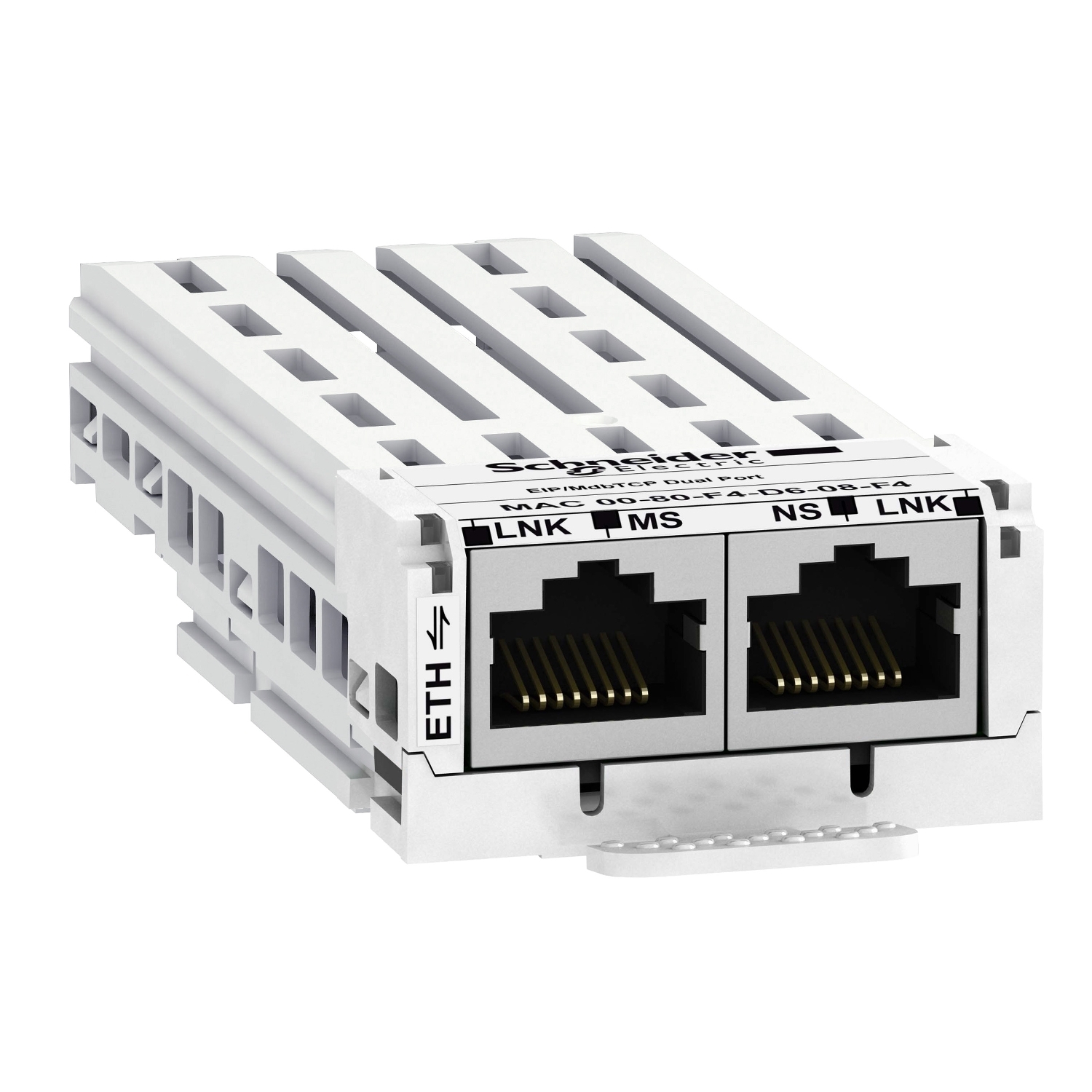

Picture of communication module EtherNet IP ModbusTCP MultiDrive Link , Altivar, 10 or 100Mbps, 2 x RJ45 connectors
SKU:

VW3A3721

communication module EtherNet IP ModbusTCP MultiDrive Link , Altivar, 10 or 100Mbps, 2 x RJ45 connectors

$642.58
Available for Shipping : 16-Oct-2024
communication module EtherNet IP ModbusTCP MultiDrive Link , Altivar, 10 or 100Mbps, 2 x RJ45 connectors
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This EtherNet/IP, Modbus TCP, and MD-Link dual port module communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 20g.

Products specifications

Attribute name Attribute value
Main
Range of product Altivar
Product or component type communication module
Complementary
Web server embedded HTTP server
Range compatibility Altivar Process Modular, Altivar Process ATV600
Web services drive setting and diagnostic, drive monitor, upgrade drive firmware, pump function setting and monitoring, Ethernet setting and diagnostic, save/restore drive configuration, customizable home page, energy monitoring, widgets (ID, control, data table, diagnostic, charts)
Display type 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status)
Topology daisy chain
Exchange mode half duplex and full duplex
Transmission rate 10/100 Mbps
Time synchronisation protocol SNTP
Communication port protocol Modbus TCP, EtherNet/IP, MD-Link
Communication service FDR for Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP, auto-MDIX for Ethernet IP/Modbus TCP, ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP, FTP for Ethernet IP, RSTP support for Ethernet IP, Ethernet/IP adapter for Ethernet IP, Modbus TCP server for Ethernet IP/Modbus TCP, SNMP agent for Ethernet IP
Net weight 0.2 kg
Electrical connection 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link
Bus profile CiA 402, CIP AC Drive
Communication network type IPv6 (internet protocol)
Environment
Product certifications Achilles: level 2, ODVA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 151.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.917 kg
