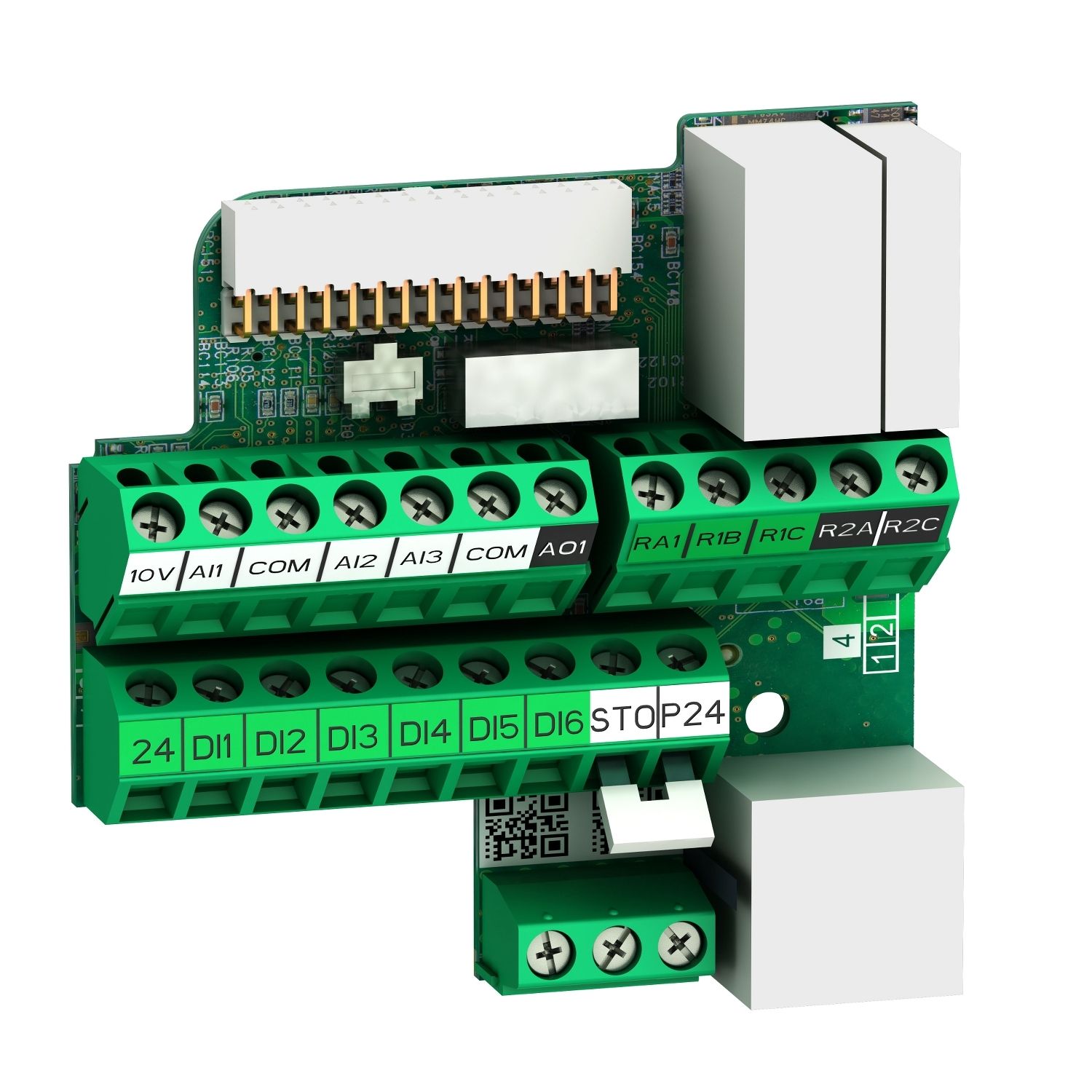

Picture of I/O control card for ATV320 Compact Control - ware part
SKU:

VW3A36201

I/O control card for ATV320 Compact Control - ware part

$194.04 INC GST
Available for Shipping : 14-Apr-2026
I/O control card for ATV320 Compact Control - ware part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026
Catalog
Product Page Link
Product Data Sheet
This IO control card is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This electronic board is a replacement part to be purchased separately. It features 4 analog inputs, 2 relay outputs, and 6 logic inputs. Altivar products are a long-term solution thanks to the possibility to replace them. It weighs 0.2kg. This card is used if it is found that terminals are damaged on the control terminal board. Is is compatible with ATV320-C, ATV320-W, and ATV320-WS drives. The product is delivered in one package. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
Accessory / separate part type control I/O card
Input/output number DI1...DI6: 6 logic input, R1, R2: 2 relay output, AQ1: 1 analog output, Al1, Al2, Al3: 3 analog input
Range compatibility Altivar Machine ATV320
Accessory / separate part category replacement part
Product compatibility variable speed drive ATV320...W/ATV320...WS, variable speed drive ATV320...C
Range of product Altivar
Complementary
Net weight 0.2 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.800 cm
Package 1 Width 13.000 cm
Package 1 Length 18.900 cm
Package 1 Weight 156.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 15.113 kg
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 50.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 123.700 kg
