SKU:

VW3A3620

speed monitoring module, Altivar, 5V

$553.76 INC GST
Available for Shipping : 10-Apr-2025
speed monitoring module, Altivar, 5V
Manufacturer: Schneider Electric

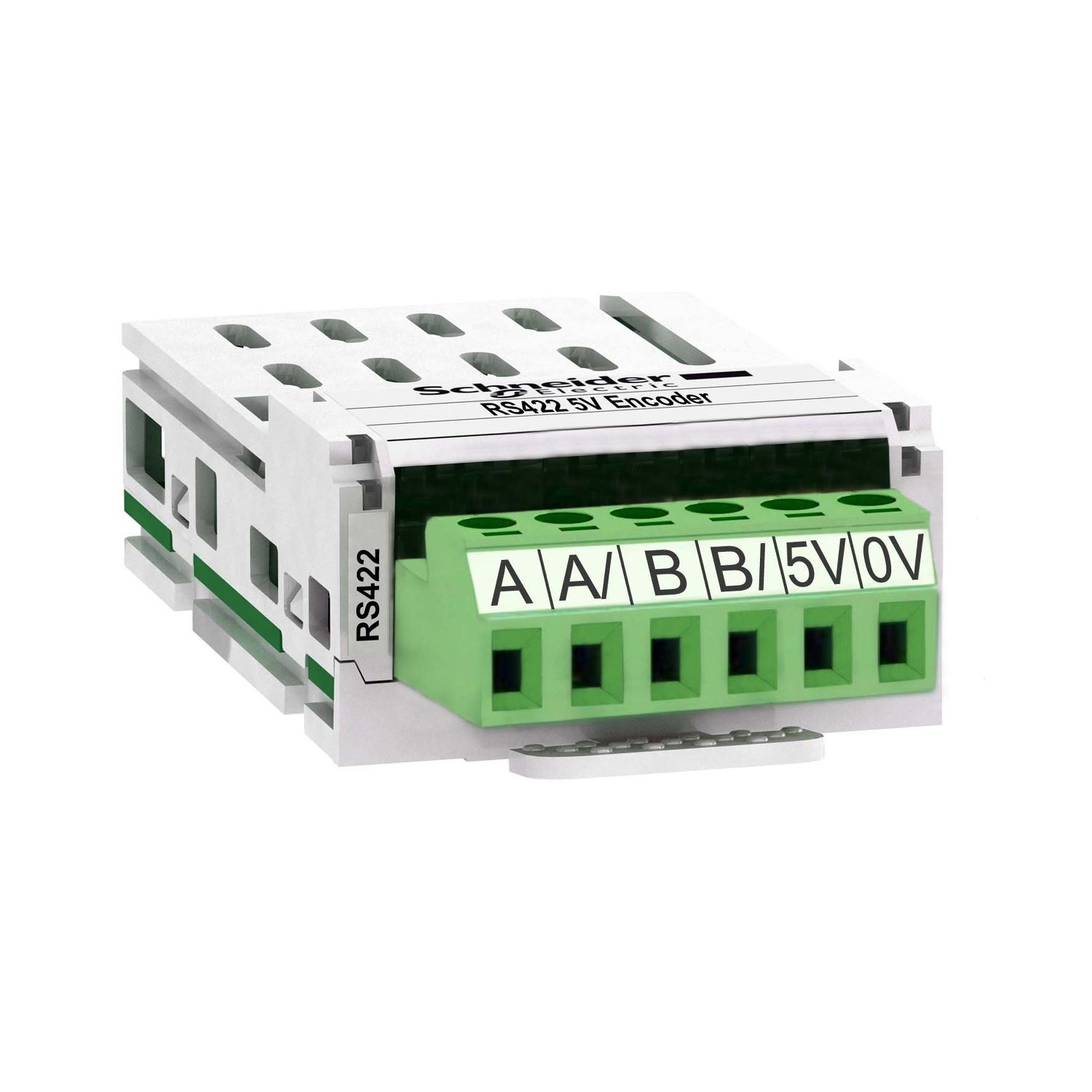

This speed monitoring module is an option for variable speed drives of the Altivar range. This option module features four functions: load slip frequency threshold, load slip detection level, load slip direction check, and load slip detection duration. This module helps to detect undesired load slip on hoisting applications using an external encoder. The speed monitoring module helps to ensure that the actual motor speed is within the acceptable threshold settings and that movement is in the desired direction. It has one 6-way screw connector port. Its input nominal voltage is 5V. It weighs 0.3kg. It is recommended for hoisting applications in OPEN loop control. This product is compliant with RS422 standard. To use with ATV320 drives with a compact control block, an option module adapter is required.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 5 V (voltage limits: 5-5.5 V)
Range compatibility Altivar Machine ATV320, Altivar 32
Product or component type encoder interface module
Number of pulses per revolution 3600 for ATV32
Range of product Altivar
Complementary
Maximum operating frequency 250 kHz
Input signal TTL
Protection type short-circuit protection,  overload protection
Product compatibility ATV32 (>= V1.8)
Net weight 0.3 kg
Electrical connection terminal, connection capacity: 1.5 mm² (AWG 16), encoder, 200 mA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.700 cm
Package 1 Width 6.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 55.000 g
Unit Type of Package 2 2
Number of Units in Package 2 96
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.071 kg
