SKU:

VW3A3601

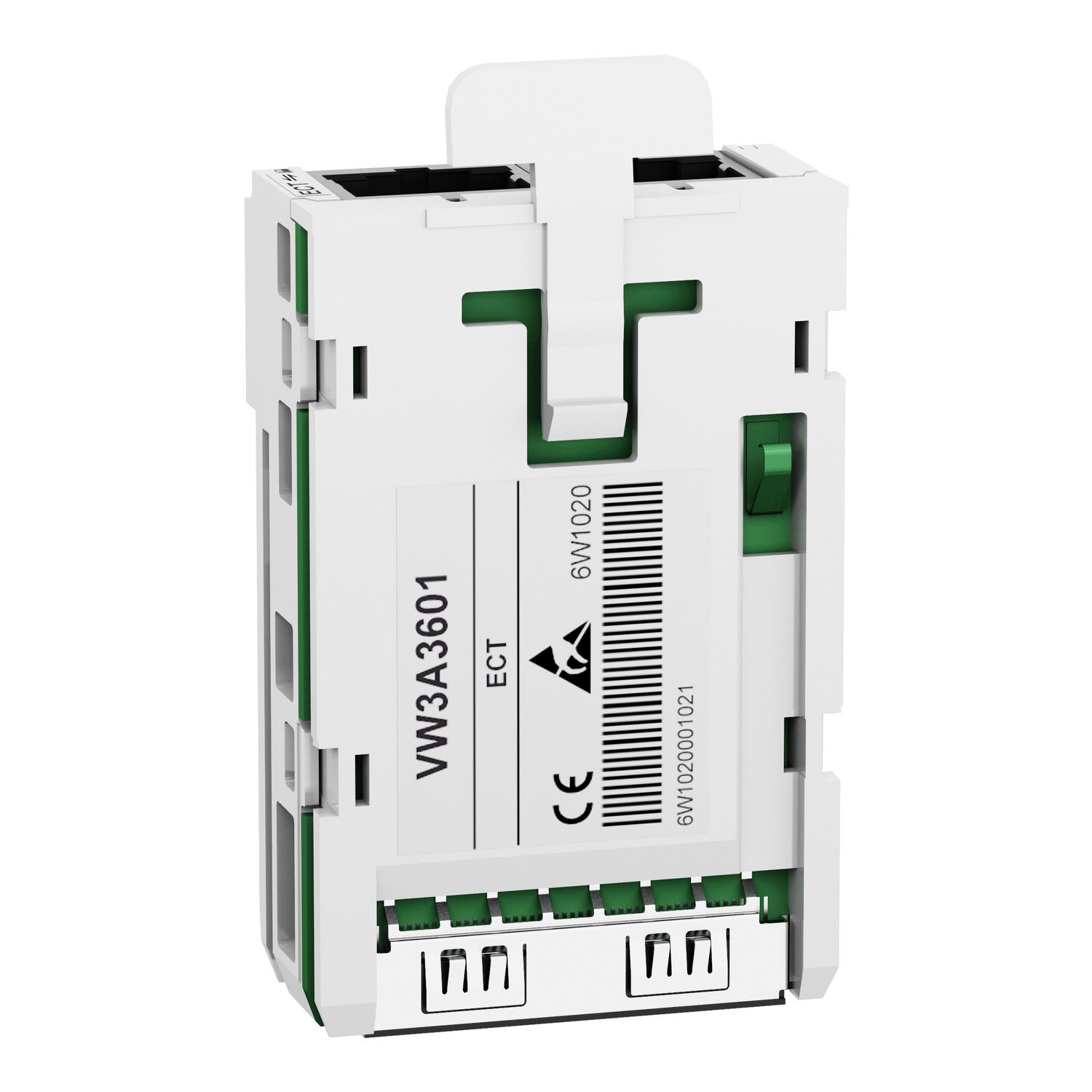

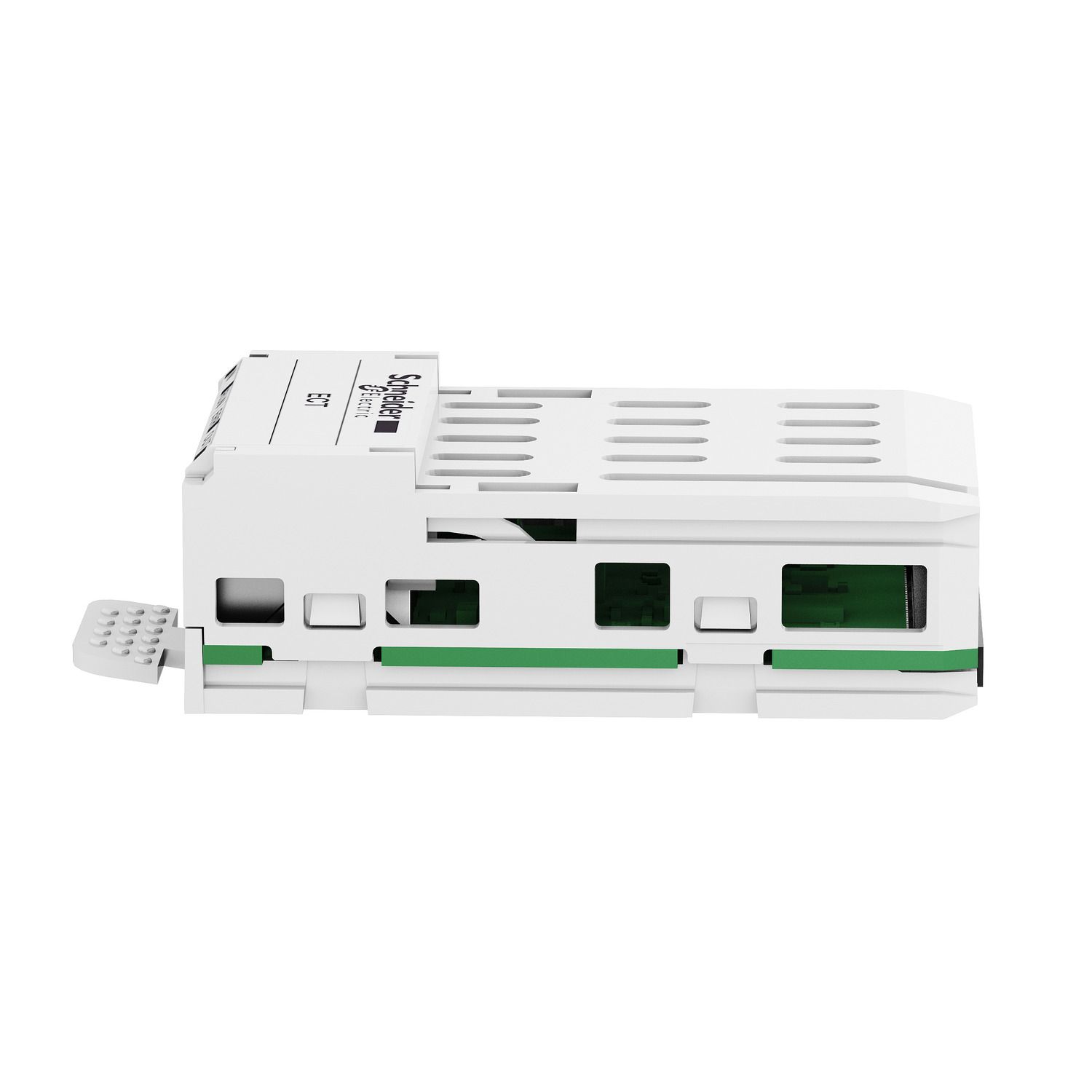

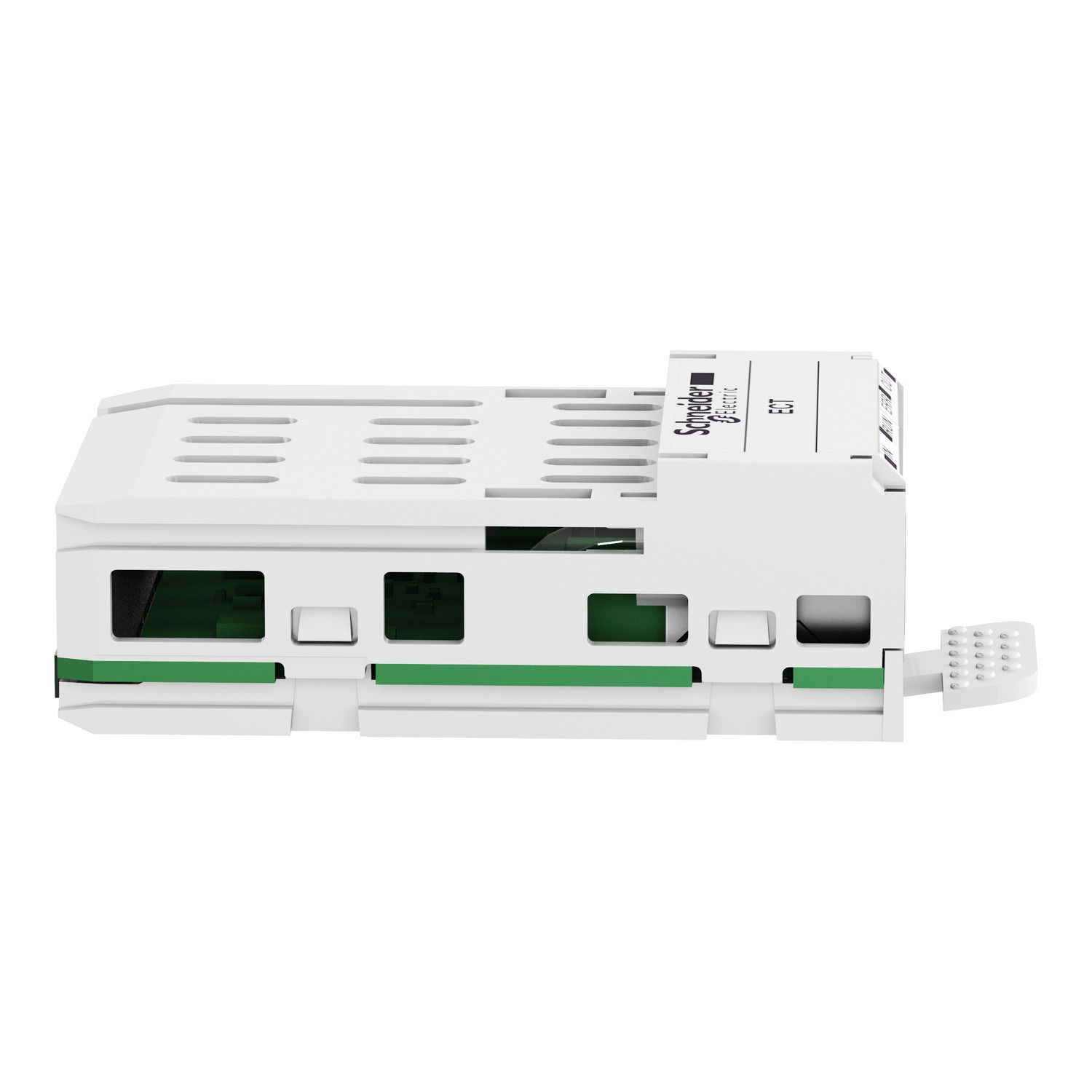

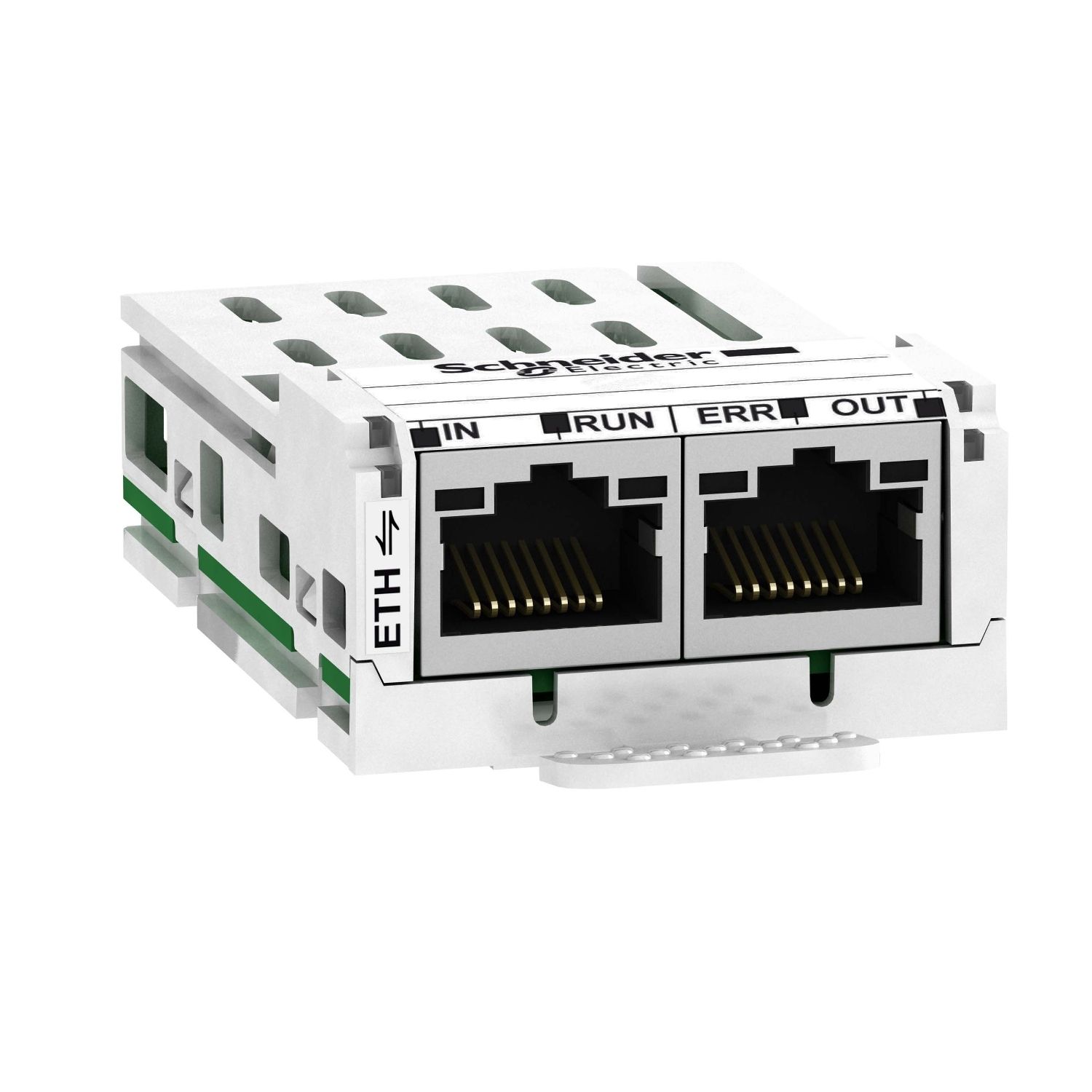

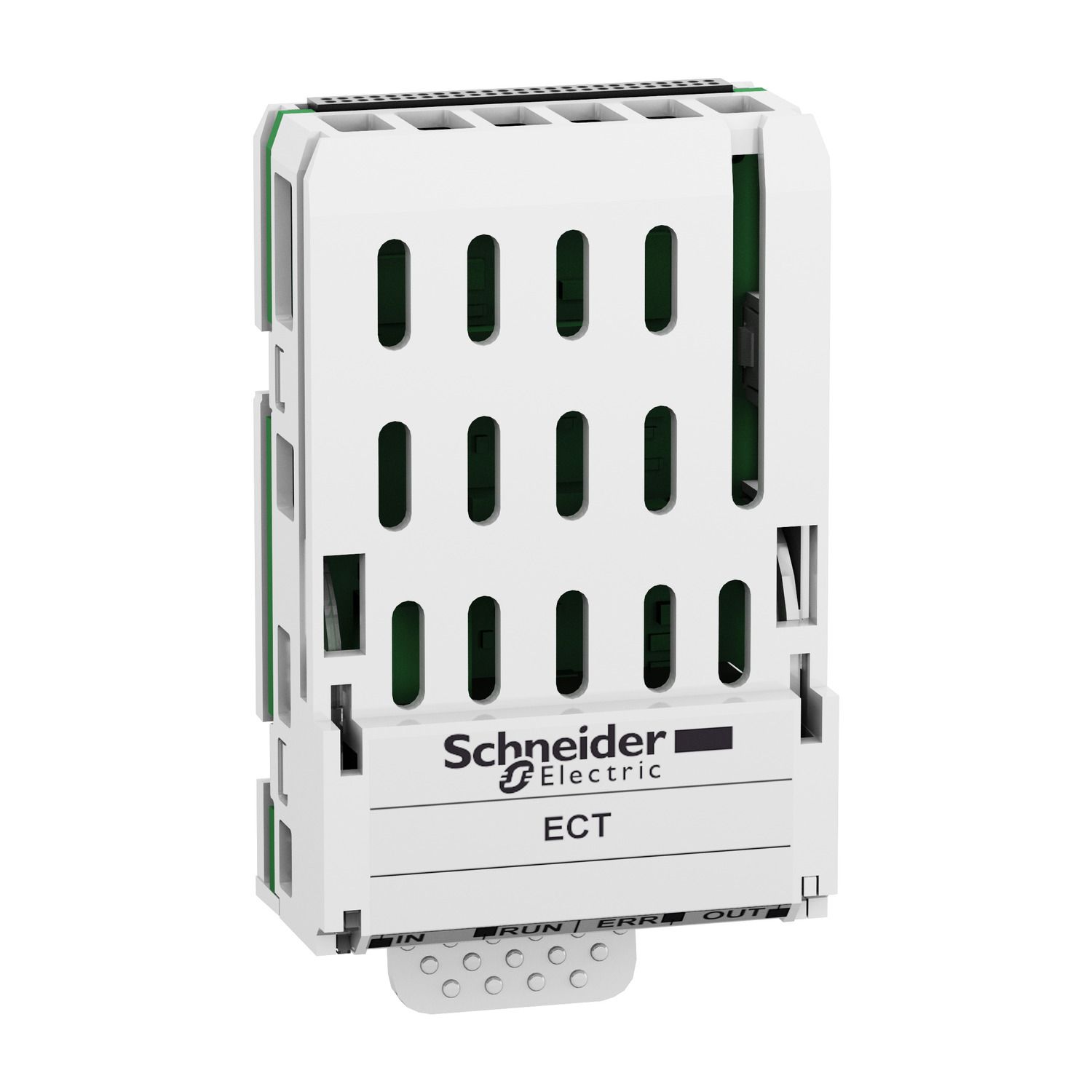

Lexium 32, Ethercat 2 x RJ45 communication module

$476.27
Available for Shipping : 30-Oct-2024
Lexium 32, Ethercat 2 x RJ45 communication module
Manufacturer: Schneider Electric
This EtherCAT communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 0.29kg.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part category communication accessories
Range of product Altivar
Product or component type communication module
Complementary
Product compatibility Lexium 32M
Range compatibility Lexium 32, Altivar 32, Altivar Process ATV900, Altivar Machine ATV320, Altivar Machine ATV340 except Sercos drives, Altivar Process Modular
Display type 1 LED for output status, 1 LED for error, 1 LED for RUN, 1 LED for input status
Maximum cable distance between devices 100 m for 100 Mbps
Addressing position addressing, node addressing, logical addressing
Transmission rate 100 Mbps
Communication port protocol EtherCAT
Communication service CANopen over EtherCAT (CoE), drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402), PDO and SDO support

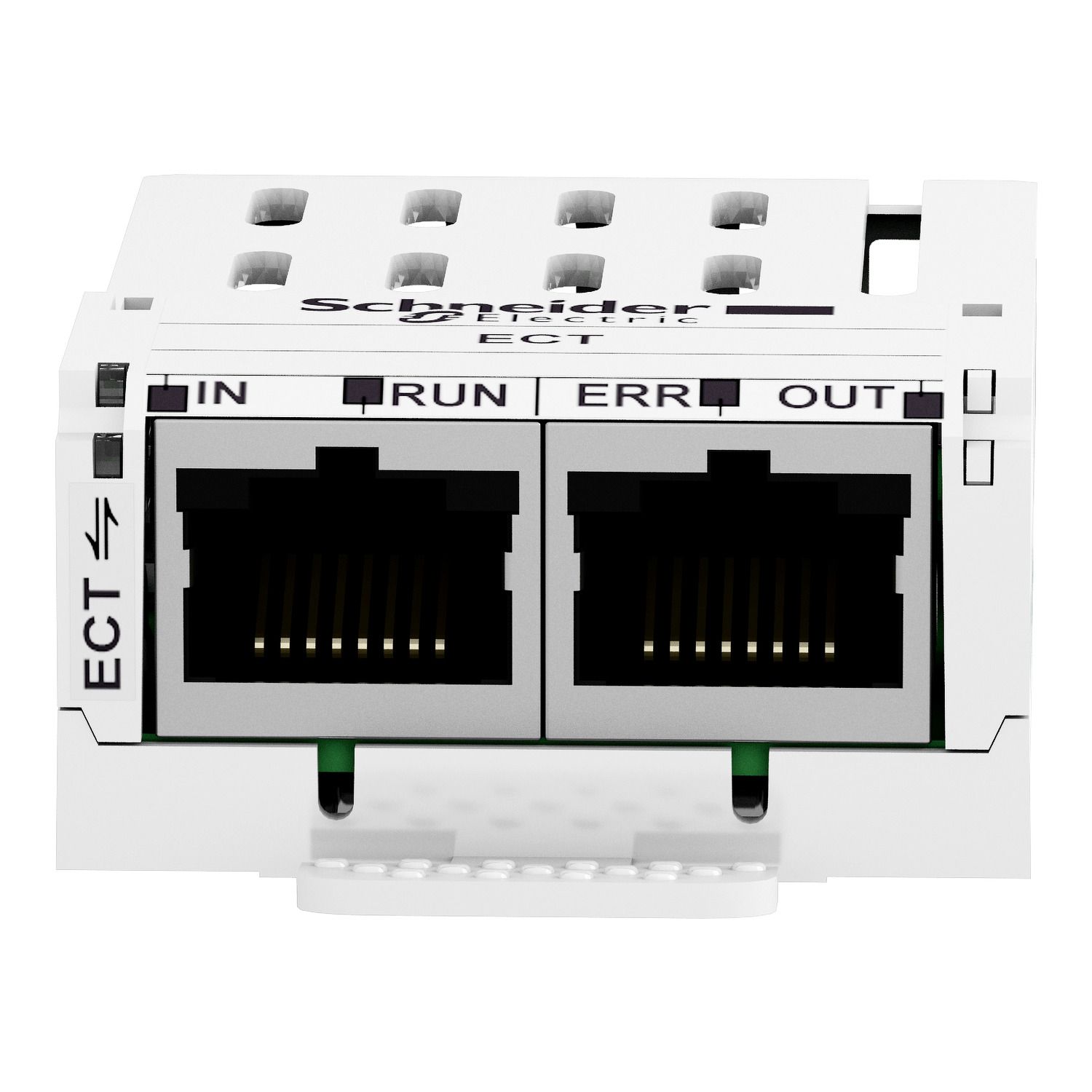

Electrical connection 2 connectors RJ45
Environment
Standards IEC 61800-7-201 (CiA 402)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.300 cm
Package 1 Width 4.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 61.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.580 kg
