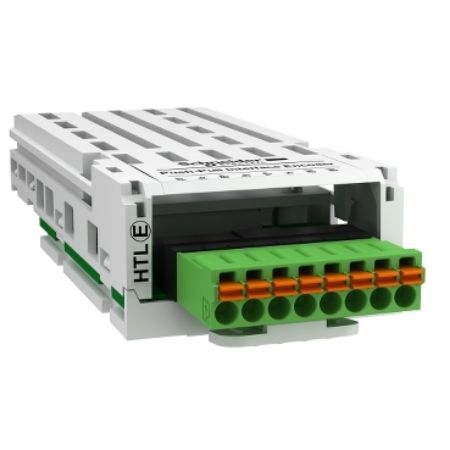

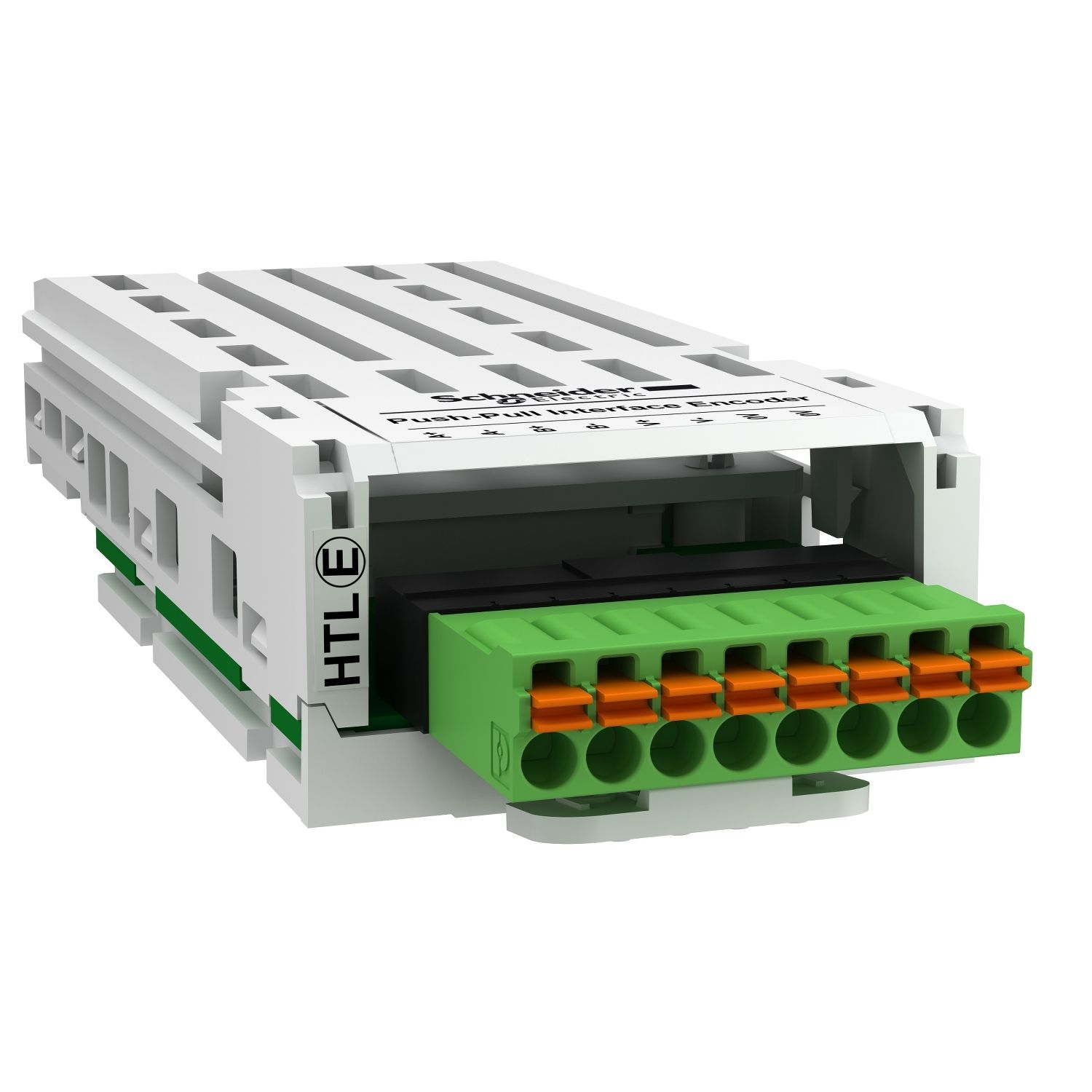

Picture of High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector
SKU:

VW3A3424

High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector

$335.63
Available for Shipping : 10-Oct-2024
Product Selector
High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This HTL encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V DC, 15 V DC, 12 V DC
Range compatibility Altivar Machine ATV340, Altivar Process Modular, Altivar Process ATV900
Encoder type high threshold logic (HTL)
Product or component type encoder interface module
Range of product Altivar
Complementary
Maximum operating frequency 300 kHz
Input signal open collector NPN: A, open collector PNP: A, open collector NPN: AB, open collector PNP: AB, open collector differential: A/AB/B, push-pull single ended: A, push-pull single ended: AB, push-pull differential: A/AB/B
Protection type overload protection, short-circuit protection
Maximum supply current 0.1 A at 24 V DC, 0.175 A at 15 V DC, 0.2 A at 12 V DC
Net weight 0.15 kg
Connector type 1 removable spring connector
Maximum cable distance between devices 500 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 12.8 cm
Package 1 Length 19.0 cm
Package 1 Weight 144.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.052 kg
