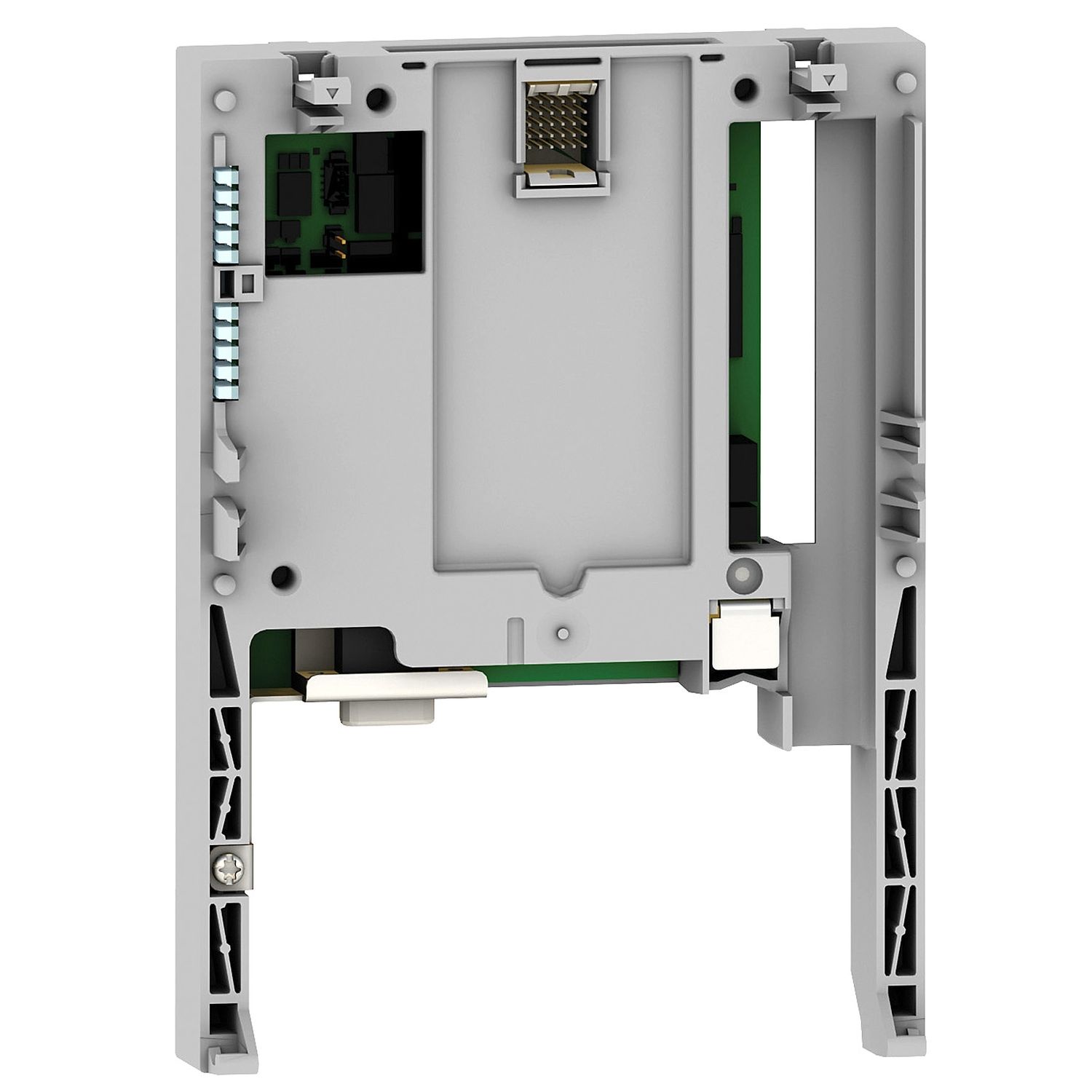

Picture of Profinet communication card, Altivar, 100Mbits, 2 x RJ45 connectors
SKU:

VW3A3327

Profinet communication card, Altivar, 100Mbits, 2 x RJ45 connectors

$736.66 INC GST
Available for Shipping : 18-Feb-2025
Profinet communication card, Altivar, 100Mbits, 2 x RJ45 connectors
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
User guide
Product Page Link
Product Data Sheet
This Profinet communication card is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 300g.

Products specifications

Attribute name Attribute value
Main
Web services Ethernet statistics, drive monitor, save/restore drive configuration, FDR Agent, iPar client settings, drive parameters, multi-language services, data editor, Ethernet/IP setup, security, drive recorder
Connector type 2 RJ45 connectors
Transmission rate 100 Mbits
Range compatibility Altivar 61, Altivar 71
Communication port protocol PROFINET, MRP (Media Redundancy Protocol)
Product or component type communication card
Physical interface RJ45 for PROFINET
Complementary
Web server embedded
Display type 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status), 1 LED for Link (Link Status)
Communication network type Ethernet PROFIdrive, Ethernet CiA 402 conforming to IEC 61800-7-201
Exchange mode full duplex
Addressing IP addressing manual, DHCP or DCP
Communication transport type RT (real-time), UDP PROFIdrive, TCP CiA 402 conforming to IEC 61800-7-201
Communication data link LLC : IEEE 802.2, MAC : IEEE 802.3
Communication service iPar-server, FTP
Net weight 0.287 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.200 cm
Package 1 Width 17.000 cm
Package 1 Length 23.300 cm
Package 1 Weight 275.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.419 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 30.276 kg
