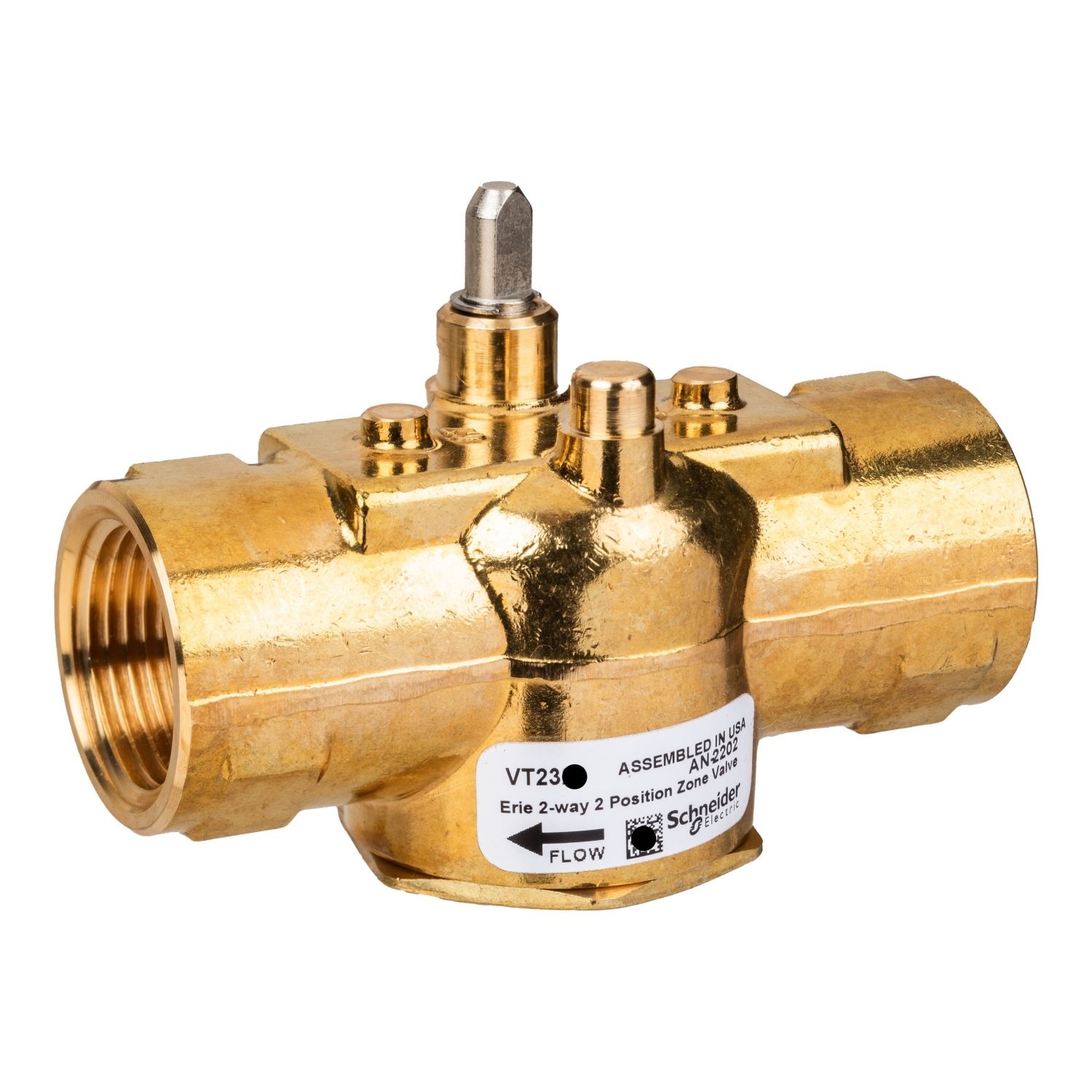

Picture of Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 6.5 m³/h (Cv 7.5), Pop-Top Actuator Connection, Brass Body.
SKU:

VT2337

Erie Zone Valve, 2-Way, PN16, DN20 (3/4"), Rp Thread, Kvs 6.5 m³/h (Cv 7.5), Pop-Top Actuator Connection, Brass Body.

$86.38 EXCL GST
Available for Shipping : 30-Apr-2025
Erie Zone Valve (VT2337)
  • Offers a 2-way configuration for versatile control.
  • Designed for PN16 pressure rating and DN20 (3/4") pipe size compatibility.
  • Comes with an Rp Thread for secure connections.
  • Provides a flow capacity of Kvs 6.5 m³/h (Cv 7.5) for efficient operation.
  • Has an easy Pop-Top Actuator Connection for quick and easy assembly.
  • Made with a durable brass body for long-lasting performance.
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet

The Erie Zone valve works perfectly for turning hot or chilled water on and off in terminal unit setups. Its paddle design allows for high flow capacity. The easy ‘pop-top’ actuator connection makes installation super quick and hassle-free.

This valve comes in size DN20 with a Rp 3/4 thread and offers a flow capacity (Kvs) of 6.5 m³/h. It has a pressure class of PN20 and handles temperatures ranging from 0 °C to 93 °C.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature 0-93 °C
Body material brass
Seat leakage Port A: Class IV (0.01 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Seat material Port A: brass
Valve product range Erie PopTop
Pressure allowable static 300 psi
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product series VT2
Paddle material Buna N
Flow coefficient 6.49 kvs, 7.5 cv
Valve configuration 2-Way
Stem movement rotary
Pressure fluid max delta P normal life 20 psi
Valve type zone
Valve connection type Rp Internal
Stem seal material FKM
Flow characteristic uncharacterized
Trim material brass
Stem material nickel plated brass
Pipe size DN20
Pressure class PN20, PN16
Body size 20 mm (3/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.08 cm
Package 1 Width 7.62 cm
Package 1 Length 7.62 cm
Package 1 Weight 410.0 g
