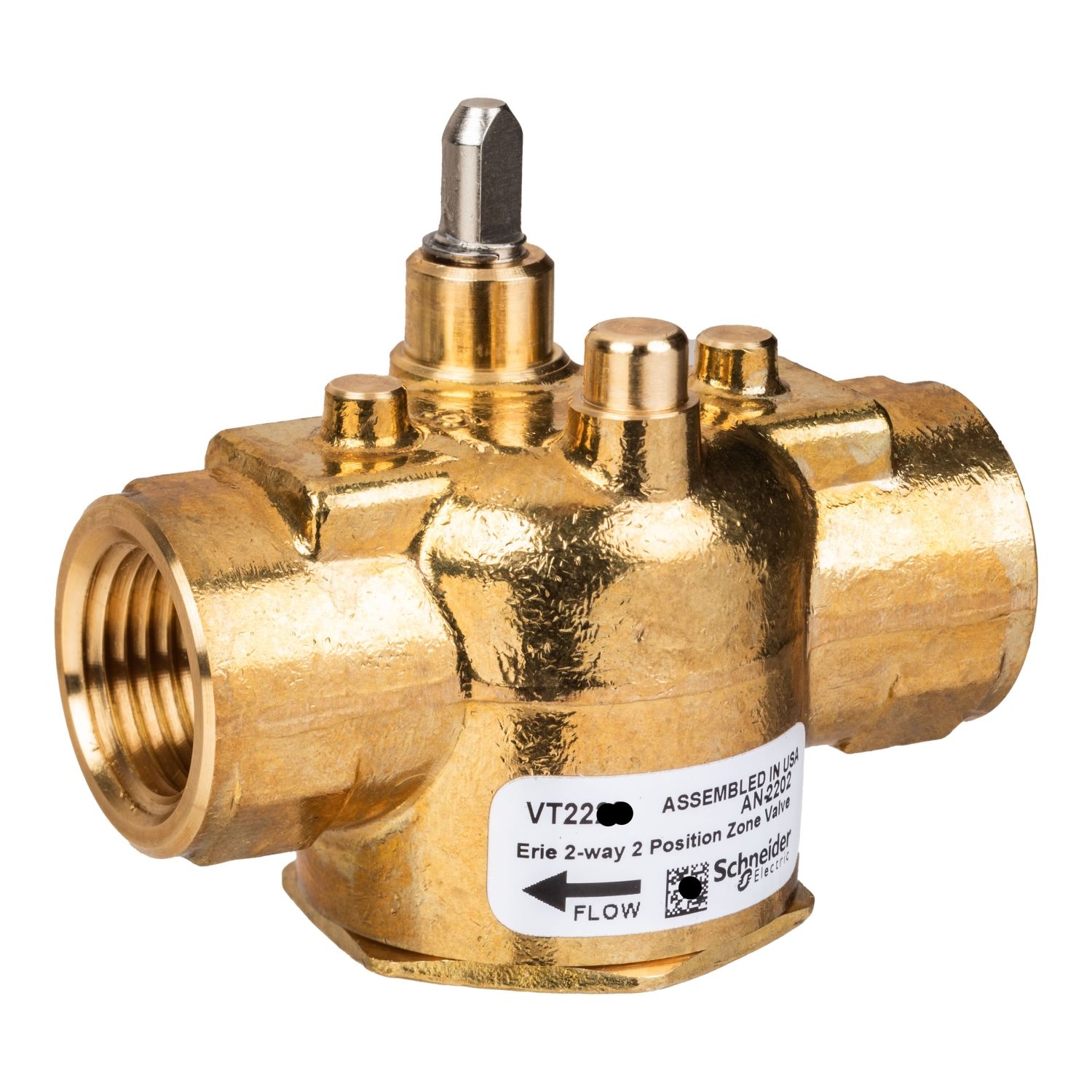

Picture of Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.
SKU:

VT2232

Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.

$104.23 INC GST
Available for Shipping : 09-Apr-2025
Erie Zone Valve, 2-Way, PN16, DN15 (1/2"), Rp Thread, Kvs 2.2 m³/h (Cv 2.5), Pop-Top Actuator Connection, Brass Body.
  • Pop-Top Connection, Quick, simple and toolless actuator and valve assembly.
  • Normally Open or Normally Closed function is defined by actuator selection
  • Forged Brass and FKM seals for long service life
  • Low seat leakage
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
The industry leading Erie Zone valve is suitable for on/off control of hot and chilled water in terminal unit applications. High flow capacity paddle design and the unique ‘pop-top’ actuator connection allows for a quick and simple installation. Valve size: DN15, Rp 1/2 thread, Flow capacity, Kvs: 2.2 m³/h. Pressure class PN20. The valve provide a working temperature range of 0 °C to 93 °C.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature 0-93 °C
Body material brass
Seat leakage Port A: Class IV (0.01 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Seat material Port A: brass
Valve product range Erie PopTop
Pressure allowable static 300 psi
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product series VT2
Paddle material Buna N
Flow coefficient 2.16 kvs, 2.5 cv
Valve configuration 2-Way
Stem movement rotary
Pressure fluid max delta P normal life 50 psi
Valve type zone
Valve connection type Rp Internal
Stem seal material FKM
Flow characteristic uncharacterized
Trim material brass
Stem material nickel plated brass
Pipe size DN15
Pressure class PN20, PN16
Body size 15 mm (1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.08 cm
Package 1 Width 7.62 cm
Package 1 Length 7.62 cm
Package 1 Weight 360.0 g
