SKU:

VT2223

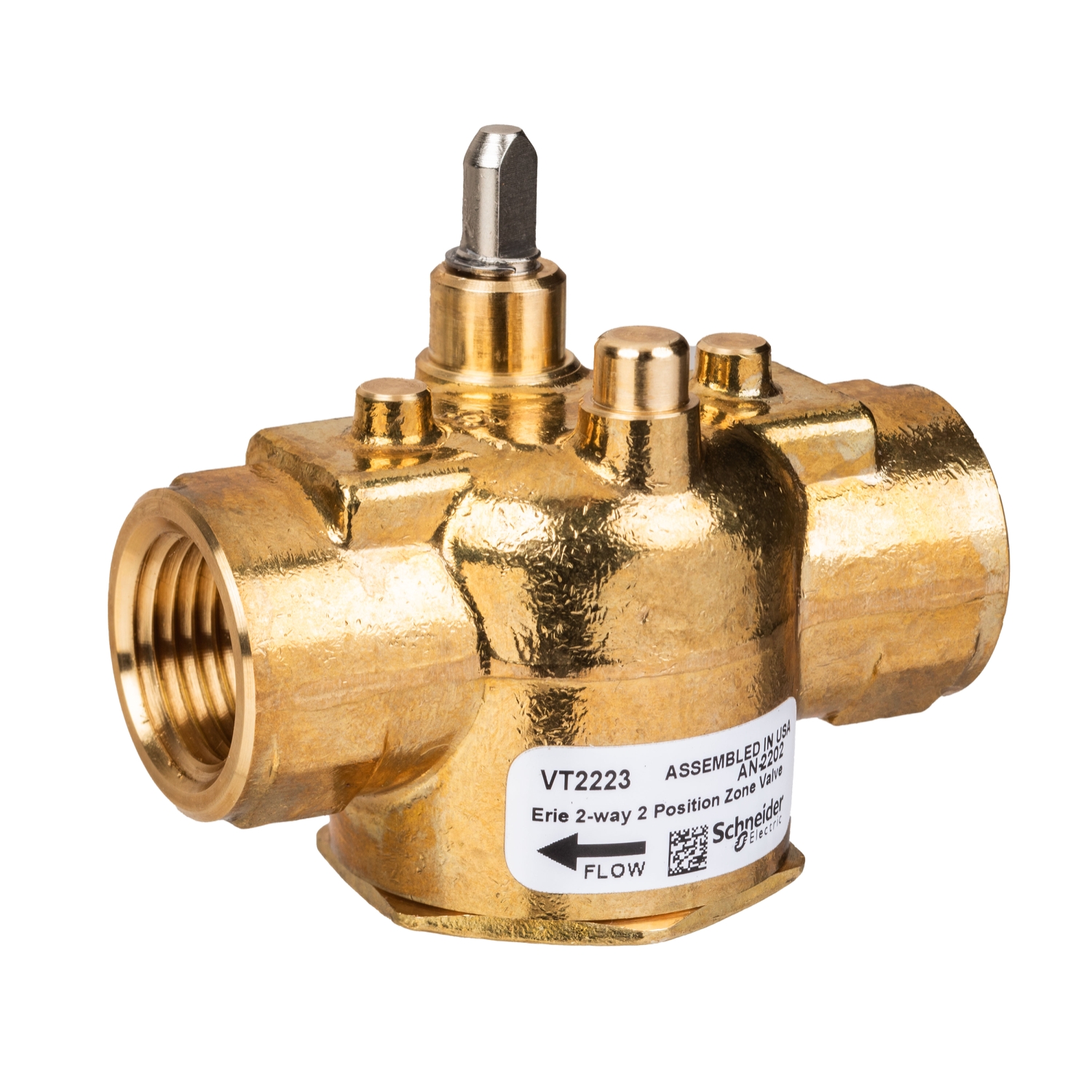

VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

$104.23 INC GST

Qty:

Available for Shipping : 30-Sep-2025

VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

Manufacturer: Schneider Electric

Product environmental

End of life manual

Product Page Link

Product Data Sheet

VB: 1/2 in, 2W, Zone, NPT, BR, 3.5 cv, Erie PopTop, No Steam

Attribute name	Attribute value
Main
Operating fluid temperature	0-93 °C
Body material	forged brass
Seat leakage	Port A: Class IV (0.01 %)
Product or component type	valve
Targeted region	North America.
Seat material	Port A: brass

Valve product range	Erie PopTop
Pressure allowable static	400 psi
Medium compatibility	Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product series	VT2
Paddle material	Buna N
Flow coefficient	3.03 kvs, 3.5 cv
Valve configuration	2-Way
Stem movement	rotary
Valve type	zone
Valve connection type	NPT
Flow characteristic	quick open
Trim material	brass
Stem material	nickel plated brass
Pipe size	1/2 in
Pressure class	ANSI class 400
Body size	15 mm (1/2 in)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.300 cm
Package 1 Width	8.300 cm
Package 1 Length	9.500 cm
Package 1 Weight	348.000 g
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	15 cm
Package 2 Width	15 cm
Package 2 Length	40 cm
Package 2 Weight	2.984 kg
Unit Type of Package 3	3
Number of Units in Package 3	256
Package 3 Height	75.000 cm
Package 3 Width	80.000 cm
Package 3 Length	60.000 cm
Package 3 Weight	103.488 kg
