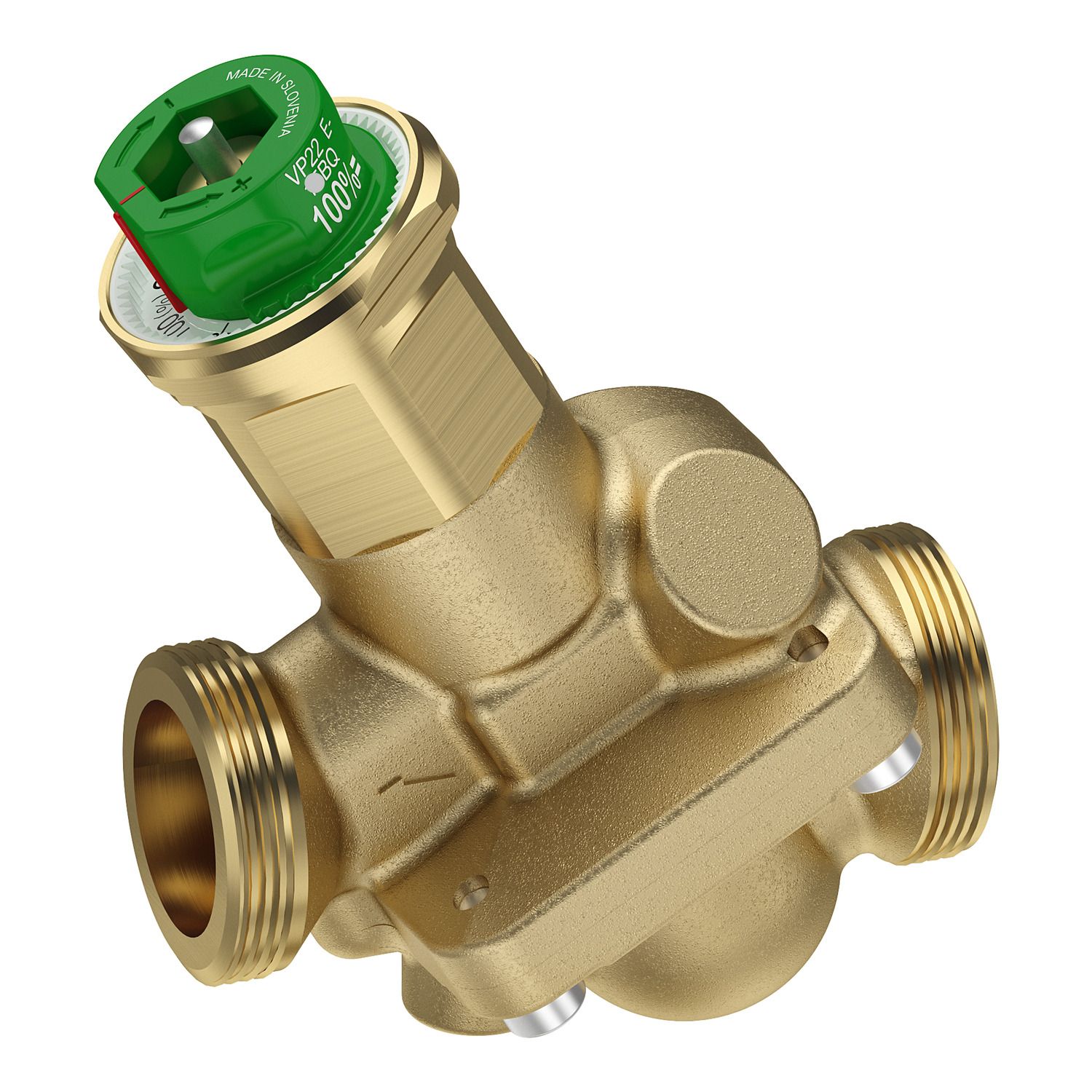

Picture of SpaceLogic VP229E PIBCV (PICV), 2-Way, PN16, DN20, G1 Ext. Thread, High Flow: 0.34…1.7 m³/h (...0.47 l/s), No PT plugs.
SKU:

VP229E-20BQHNT

SpaceLogic VP229E PIBCV (PICV), 2-Way, PN16, DN20, G1 Ext. Thread, High Flow: 0.34…1.7 m³/h (...0.47 l/s), No PT plugs.

$377.76 INC GST
Available for Shipping : 13-Feb-2025
SpaceLogic VP229E PIBCV (PICV), 2-Way, PN16, DN20, G1 Ext. Thread, High Flow: 0.34…1.7 m³/h (...0.47 l/s), No PT plugs.
  • PIBCV provide best in class energy saving potential
  • Fully adjustable maximum flow rate to a simple % flow setting scale
  • Simple percentage (%) scale used in setting the flow rate
  • Precise and stable hydronic control, providing exceptional low flow control.
  • Mounts to the MP130, MP120, SP90, MP300 actuators platforms
  • This version without test plugs should not be mounted in the index circuit
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
The VP229E is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. DN2 , Threaded Valve G 1A. High Flow.

Products specifications

Attribute name Attribute value
Main
Device application terminal unit, radiation panel, fan coil unit
Operating fluid temperature -10-120 °C
Body material CW602N brass
Seat leakage Port A: Class IV (0.01 %)
Product or component type valve
Close-off pressure 1600 kPa, 232 psi
Targeted region Australia., North America., Asia Pacific., Europe
Valve connection size G 1A
Seat material Port A: brass
Valve product range SpaceLogic
Pressure allowable static 16 bar, 200 psi up to 150 °F
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability 1000:1
Accuracy setting knob 5 %
Flow rate minimum (m³/h) 0.34 m³/h
Valve product series VP229E
Material diaphragm EPDM (ethylene propylene diene monomer)
Pressure differential maximum (psi) 87 psi
Pressure differential minimum (psi) 5.08 psi
Valve configuration 2-Way
Stem movement linear
Flow rate nominal (lps) 0.47 l/s
Flow rate minimum (lph) 340 l/h
Pressure fluid max delta P normal life 58 psi
Flow rate nominal (lph) 1700 l/h
Flow rate minimum (lps) 0.094 l/s
Flow rate maximum (m³/h) 1.87 m³/h
Flow rate maximum (gpm) 8.25 gal(US)/min
Valve type pressure independent
Valve connection type G External
Flow rate minimum (gpm) 1.5 gal(US)/min
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic linear
Stem material stainless steel
Flow rate nominal (gpm) 7.5 gal(US)/min
Pipe size 20 mm
Pressure differential minimum (kPa) 35 kPa
Flow rate maximum (lph) 1872 l/h
Flow rate nominal (m³/h) 1.70 m³/h
Flow rate maximum (lps) 0.52 l/s
Pressure class ANSI class 125, PN16
Pressure differential maximum (kPa) 600 kPa
Body size 20 mm (3/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.7 cm
Package 1 Width 9.4 cm
Package 1 Length 14.0 cm
Package 1 Weight 650.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.045 kg

Related products

Picture of MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 230Vac, 120N, IP44

MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 230Vac, 120N, IP44

MP120NC-230T
$67.07 INC GST
View Detail
Picture of MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 24Vac, 120N, IP45

MP120NC Thermal PIBCV Actuator, 2-Position (or Modulate under PWM), Normally closed, 24Vac, 120N, IP45

MP120NC-24T
$67.30 INC GST
View Detail

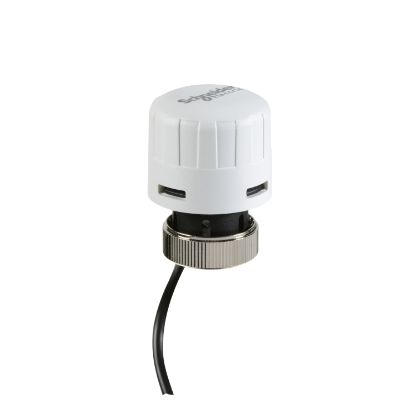

Picture of MP140NO Thermal actuator, 2 position, 110V to 230VAC, 140N, IP44

MP140NO Thermal actuator, 2 position, 110V to 230VAC, 140N, IP44

MP140NO-230T
$99.43 INC GST
View Detail

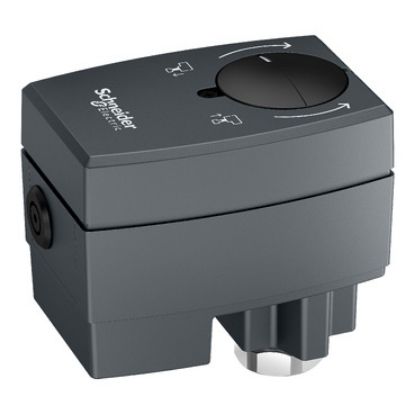

Picture of SpaceLogic MP300-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Open valve), 24 Vac, 300 N.
