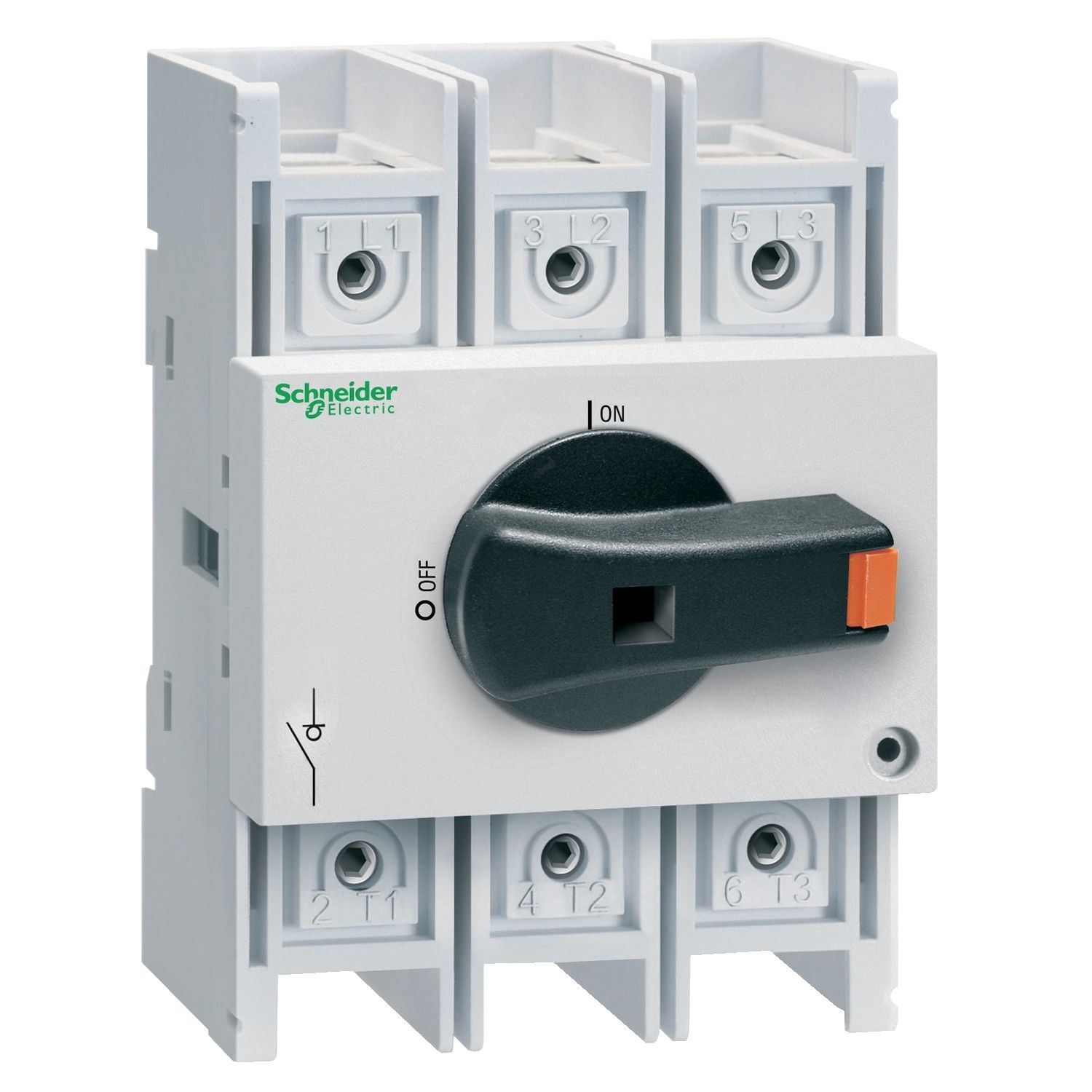

Picture of Disconnect switch, TeSys VLS, body switch, 125A, 60HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount
SKU:

VLS3P125R2

Disconnect switch, TeSys VLS, body switch, 125A, 60HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount

$297.07 INC GST
Available for Shipping : 24-Mar-2025
Disconnect switch, TeSys VLS, body switch, 125A, 60HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 125A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 7.5 HP rating at 120 VAC and a 10 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 30 HP rating at 200 to 208 VAC and 240 VAC, a 60 HP rating at 480 VAC and 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 55 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept from 12 AWG to 1 AWG wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.

Products specifications

Attribute name Attribute value
Main
Device short name VLS3P
Range TeSys
Product name TeSys VARIO LS
Product or component type switch body
Complementary
[Icw] rated short-time withstand current 2500 A at 690 V duration: 1 s
Rated conditional short-circuit current 50 kA at 400 V - associated fuse 125 A gG
Rated operational power in W 45 kW at 690 V (AC-23A), 45 kW at 500 V (AC-23A), 55 kW at 400 V (AC-23A)
Breaking capacity 1000 A at 690 V (AC-23A), 375 A at 690 V (AC-22A), 187.5 A at 690 V (AC-21A)
Device composition handle, switch
Depth 100 mm
Tightening torque power circuit: 5-6 N.m - on screw clamp terminals
Width 70 mm
Colour grey
Poles description 3P
Mechanical durability 30000 cycles
Mounting support back: DIN rail
[Ie] rated operational current 47 A AC-23A Ue: 690 V, 100 A AC-23A Ue: 500 V, 125 A AC-23A Ue: 400 V, 125 A AC-22A Ue: 690 V, 125 A AC-22A Ue: 500 V, 125 A AC-22A Ue: 400 V, 125 A AC-21A Ue: 690 V, 125 A AC-21A Ue: 500 V, 125 A AC-21A Ue: 400 V, 100 A Ue: 600 V conforming to UL98
Suitability for isolation yes
Electrical durability 30000 cycles AC-21
[Icm] rated short-circuit making capacity 3550 A at 690 V
Contacts type and composition 3 NO
Connections - terminals power circuit: screw clamp terminals70-70 mm² - flexible - without cable end, power circuit: screw clamp terminals50-50 mm² - solid
Control type rotary handle
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 1250 A at 690 V AC-23A, 375 A at 690 V AC-22A, 187.5 A at 690 V AC-21A
Performance level high performance
Net weight 0.365 kg
Marking 0 - 1
Handle colour black
[Ithe] conventional enclosed thermal current 100 A
Fixing mode by clips for back
Handle front plate colour grey
Network type AC
[Ith] conventional free air thermal current 125 A (at 55 °C)
Intermittent duty class class 120 - 60 %
Height 75 mm
[Ue] rated operational voltage 690 V AC 50/60 Hz, 600 V AC 50/60 Hz conforming to UL 508
Rotary handle mounting style direct
Rotary handle padlocking 1 padlock 4-4 mm
Network frequency 50/60 Hz
Environment
Fire resistance 960 °C conforming to IEC 60695-2-11
Mechanical robustness shocks 11 ms Ea (15 gn) conforming to IEC 60068-2-27, vibrations 2...100 Hz Fc (0.7 g) conforming to IEC 60068-2-6
Compatibility code VLS
IP degree of protection IP20 conforming to IEC 60529
Standards IEC 60947-3, CSA C22.2 No 4, UL98
Ambient air temperature for operation -25-55 °C
Product certifications GL, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 8.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 410.000 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.490 kg

Related products

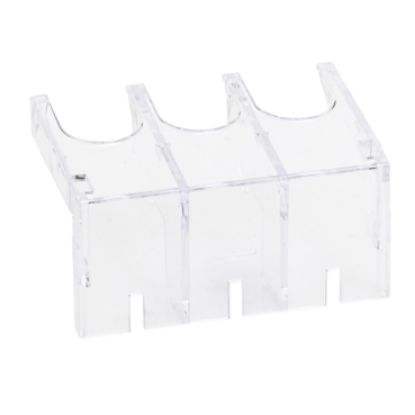

Picture of Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 30A to 125A devices
