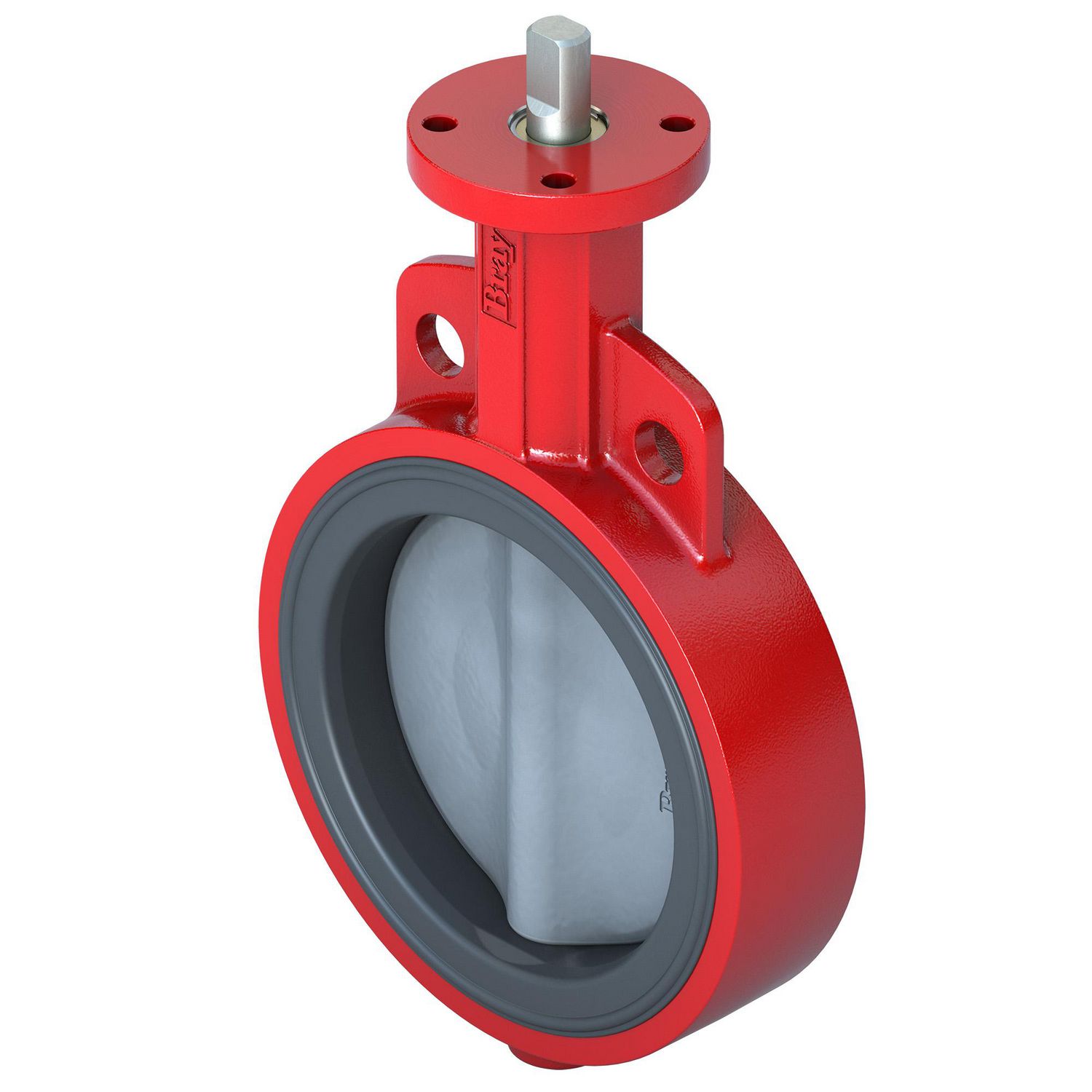

Picture of VF209W High Pressure Butterfly Valve, 2-Way, DN100, Wafer Flanged, Nylon Disc, EPDM Liner, Kvs 723 , Max ∆P 1200 kPa.
SKU:

VF209W-100CN

VF209W High Pressure Butterfly Valve, 2-Way, DN100, Wafer Flanged, Nylon Disc, EPDM Liner, Kvs 723 , Max ∆P 1200 kPa.

$937.88 INC GST
Available for Shipping : 23-Apr-2025
VF209W High Pressure Butterfly Valve, 2-Way, DN100, Wafer Flanged, Nylon Disc, EPDM Liner, Kvs 723 , Max ∆P 1200 kPa.
  • Premium high pressure butterfly valve for heavy duty HVAC applications
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Suitable for salt, brackish and 50% glycol media solutions due to the Nylon disc coating
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 1200 kPa
  • Kvs 723 m³/h, modulation of flow between 15° and 70° | Kv=55 % of Kvs @70°.
  • Suitable actuator: Type MF68
  • Suitable Hand Operator: 9160100000
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
The VF209W is a premium high pressure butterfly valve for heavy duty HVAC and industrial applications. The valve is used as an isolation valve or a control valve. The valve disc is coated with Nylon 11 thermoplastic material ensuring excellent durabiility against corrosion. Optimised seat and disc design for high close off pressures and Nylon valve disc coating for a better friciton resistance and protection for aggressive water Valve size: DN100, Flange, Flow capacity, Kvs: 723 m³/h. Constructed and flanged to PN6, PN10, PN16 pressure classes. ΔPm of maximum 1200 Kpa. EPDM seals provide a working temperature range of -29 °C to + 121 °C, and a tight closing of the butterfly valve with the maximum close-of pressure The flow characteristic is near equal percent up to 70° disc angle. The valve is manufatured in accordance with conformity assessment procedure: PED 97/23/EC. Category III.
