Picture of Actassi 19-C Panel 19" 1U for Horizontal Patch Cord Guiding
SKU:

VDIG188141

Actassi 19-C Panel 19" 1U for Horizontal Patch Cord Guiding

$67.08 INC GST
Available for Shipping : 21-Jan-2025
Actassi 19-C Panel 19" 1U for Horizontal Patch Cord Guiding
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Instruction sheet
Product environmental
Brochure
User guide
Product Page Link
Product Data Sheet

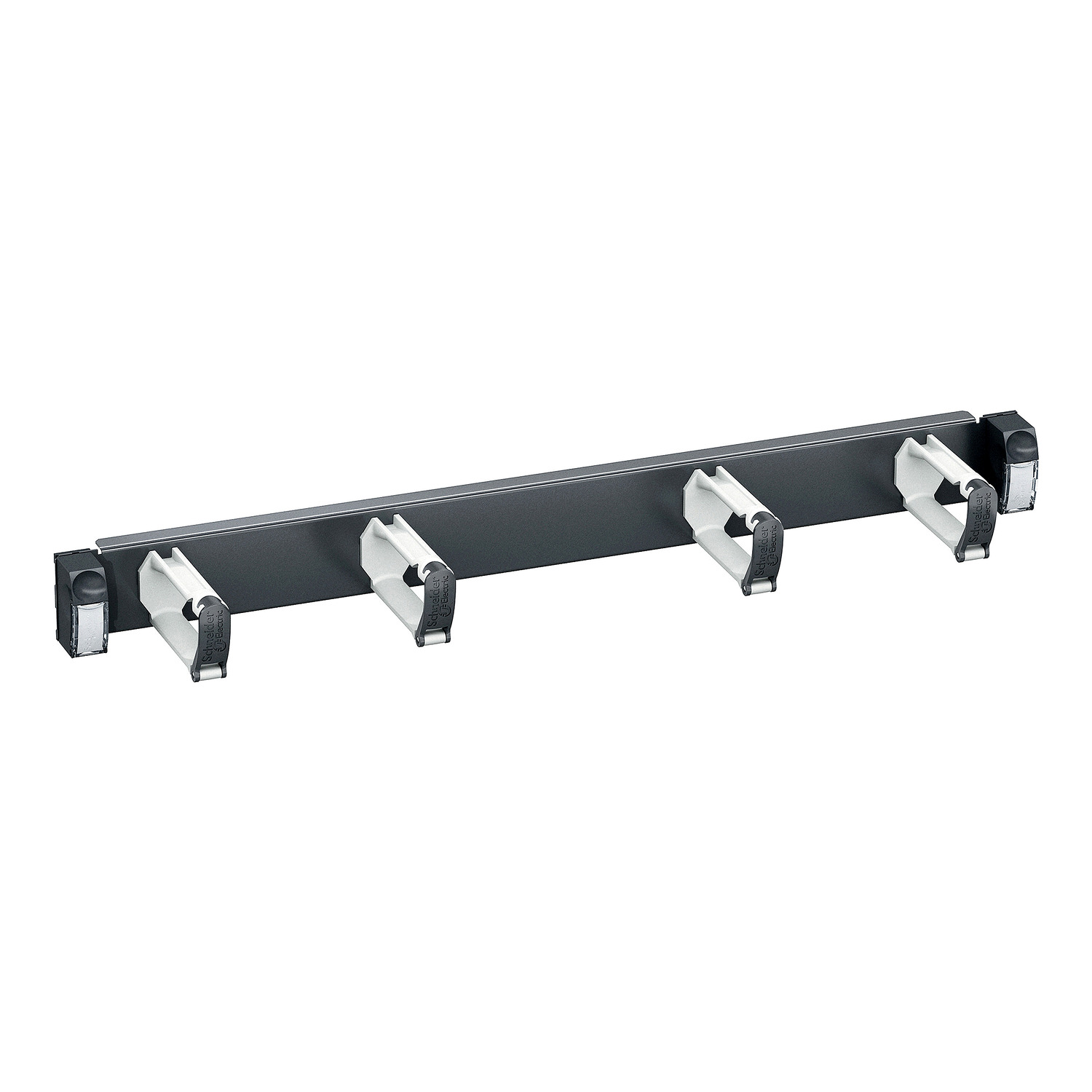

This patch cord guiding panel is in metal, 1U height with 4 openable vertical rings. It is equipped with 1 Quick Fix function on both sides to allow a simple, quick fixing position. The patch cord holder integrated inside the ring for opened position, manages up to 24 cords, easily opened but still safe, since a clever device prevents cords from falling out. Also possible to pull out only one cord if needed.

Products specifications

Attribute name Attribute value
Main
Additional information 4 openable rings
Provided equipment 2 quick fix 19" mountings
Range LexCom
Product or component type 19” patchcord guiding panel
Colour tint dark grey (RAL 7016), light grey (RAL 7035)
Range of product LexCom
Complementary
Depth 0.328 ft, 100 mm
Width 1.6 ft, 490 mm
Number of rack unit 1U
Material plastic part: PC, plastic part: PA66 GF20, metal sheet: DC01
Height 0.147 ft, 45 mm
Environment
Standards NF C 20-150, IEC 60297
Ambient air temperature for operation 14-131 °F, -10-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 16.000 cm
Package 1 Length 51.700 cm
Package 1 Weight 486.000 g
Unit Type of Package 2 2
Number of Units in Package 2 11
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.300 kg
Unit Type of Package 3 3
Number of Units in Package 3 88
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 71.052 kg
