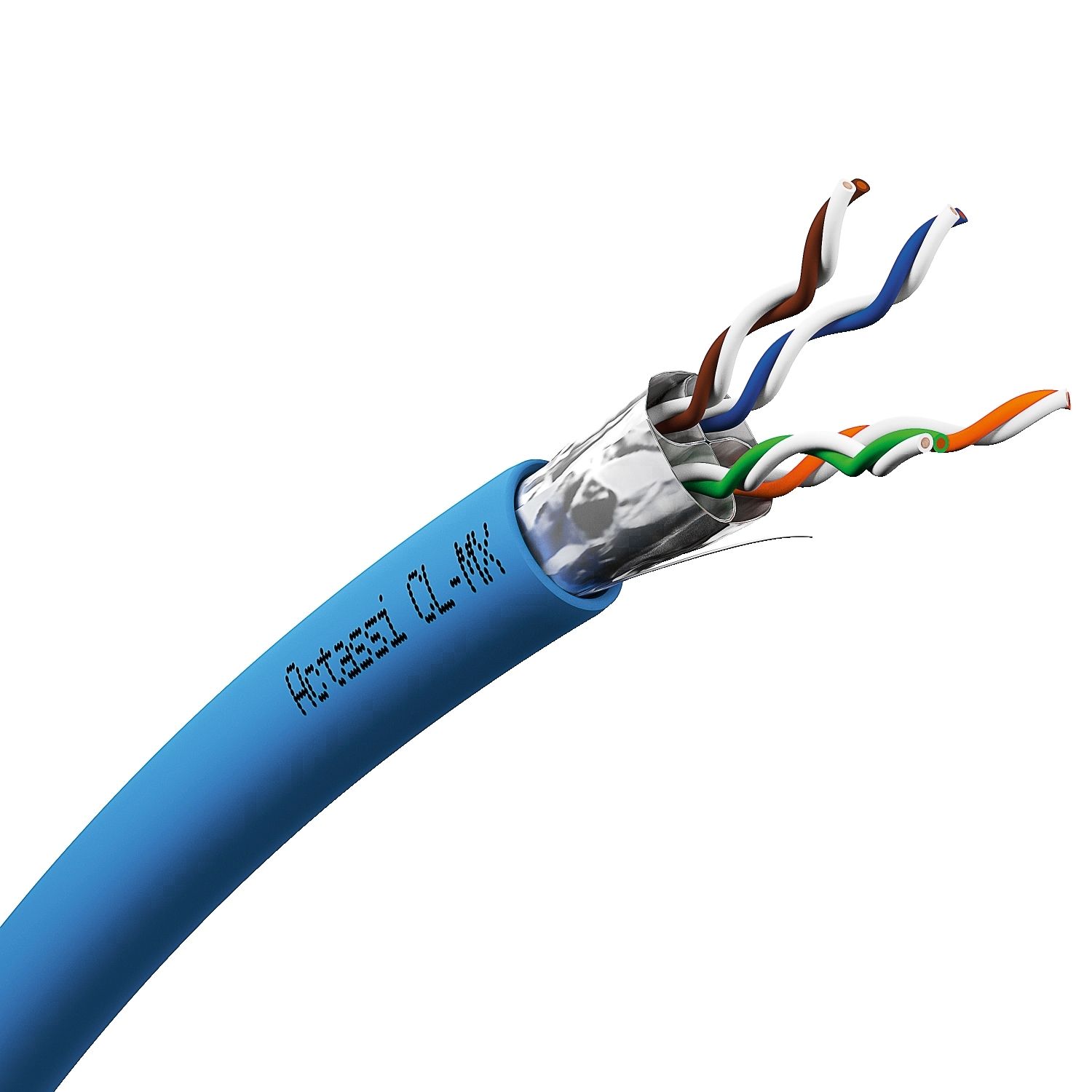

Picture of Copper LAN cable, Actassi CL-MX, F/FTP, 4P, Cat6A, Euroclass D, 550MHz, LSZH, 500m
SKU:

VDICD68X218

Copper LAN cable, Actassi CL-MX, F/FTP, 4P, Cat6A, Euroclass D, 550MHz, LSZH, 500m

$1,120.75 INC GST
Available for Shipping : 31-Mar-2025
Copper LAN cable, Actassi CL-MX, F/FTP, 4P, Cat6A, Euroclass D, 550MHz, LSZH, 500m
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Declaration of conformity
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This device is a network cable, is blue in color and is used for data communication. The network cable is made of PE (polyethylene), metallic crossfiller, solid bare copper, making it resistant and durable. Its directives are 2006/95/EC - low voltage directive, 2011/65/EU - Ro.HS directive, 305/2011/EU - construction product regulation. The cable type is 4 pair cables. This network cable is SVHC (substances of very high concern) free. It well satisfied the standard of EN 50173-1, EN 50174-1, EN 50174-2, EN 50288-10-1, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 61156-5, IEEE 802.3af, IEEE 802.3at, ISO/IEC 14763-2. Its communication port protocol is 4PPo.E 100W (Power over Ethernet), Po.E 15W (Power over Ethernet), Po.E+ 30W (Power over Ethernet Plus), Vo.IP (Voice IP). The cable shielding type is.F/FTP with exclusive patented metallic crossfiller. This device is mercury free as well as heavy metal free, taking care of the environment and your health all the time.

Products specifications

Attribute name Attribute value
Main
Range Actassi
Cable shielding type F/FTP with exclusive patented metallic crossfiller
Cable packaging drum of 500 m
Product or component type copper cable
Colour tint blue
Complementary
Euroclass level Dca s2 d1 a1
Power sum attenuation crosstalk ratio far-end [PSACRF] 21 dB at 500 MHz, 27 dB at 250 MHz, 35 dB at 100 MHz
Communication network category 6<sub>A</sub>
Nominal velocity propagation 82 %
Segregation class class c conforming to EN 50174-2
Calorific value 595 MJ/km
Cable weight 54 kg / 1 km
Maximum loop resistance 143.2 Ohm per 1000 m
Type of cable 4 pair cables
Cable outer diameter 7.3 mm
Power sum near-end crosstalk [PSNEXT] Guaranteed: 51.8 dB Typical: 59.1 dB at 500 MHz , Guaranteed: 56.3 dB Typical: 64.2 dB at 250 MHz , Guaranteed: 62.3 dB Typical: 71.0 dB at 100 MHz
Cable length 500 m
Attenuation to Crosstalk Ratio Far-end [ACRF] Guaranteed: 24 dB Typical: 40.5 dB at 500 MHz , Guaranteed: 30 dB Typical: 46.6 dB at 250 MHz , Guaranteed: 38 dB Typical: 54.7 dB at 100 MHz
Attenuation Guaranteed: 45.3 dB Typical: 41.4 dB @ 500 MHz, Guaranteed: 31.1 dB Typical: 28.4 dB @ 250 MHz, Guaranteed: 19.1 dB Typical: 17.5 dB @ 100 MHz
Pulling force 100 N
Bending radius minimum bending radius after installation: 4 x overall diameter, minimum bending radius during installation: 8 x overall diameter
Minimum return loss Guaranteed: 17.3 dB at 500 MHz typical: 20.3 dB, Guaranteed: 17.3 dB at 250 MHz typical: 22 dB, Guaranteed: 20.1 dB at 100 MHz typical: 24.2 dB
Linear resistance 71.6 mΩ/m
Material PE (polyethylene): sheath, tinned copper: drain wire, metallic crossfiller: screen, PE (polyethylene): wire insulation, solid bare copper: conductor
AWG gauge AWG 23
Communication port protocol 4PPoE 100W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), PoE 15W (Power over Ethernet)
Input impedance 100 Ohm
Targeted region Europe
Transfer impedance <= 60 mOhm/m at 100-100 MHz conforming to IEC 61156-5, ed. 2 (grade 1), <= 30 mOhm/m at 30-30 MHz conforming to IEC 61156-5, ed. 2 (grade 1), <= 10 mOhm/m at 1-10 MHz conforming to IEC 61156-5, ed. 2 (grade 1)
Near end crosstalk [NEXT] Guaranteed: 54.8 dB Typical: 60.1 dB at 500 MHz , Guaranteed: 59.3 dB Typical: 83.1 dB at 250 MHz , Guaranteed: 65.3 dB Typical: 85.5 dB at 100 MHz
Coupling attenuation >= 75 - 20 x log10(f / 100) dB from 100-1000 MHz conforming to IEC 61156-5, ed. 2 type Ib, >= 75 dB from 30-100 MHz conforming to IEC 61156-5, ed. 2 type Ib
Communication network type 10GBASE-T
Environment
Ambient air temperature for storage -20-60 °C
Directives 305/2011/EU - construction product regulation, 2006/95/EC - low voltage directive
Flame retardance LSZH
Standards IEC 61034 smoke generation, IEC 60754-2 acidity of combustion gases, IEC 60754-1, IEC 60332-1 flame propagation characteristics, EN 50174-2 installation standards, ISO/IEC 14763-2 installation standards, EN 50288-10-1 performance, IEC 61156-5-ed. 2.1 performance, ANSI/TIA/EIA-568-C.2 performance, EN 50174-1 performance, EN 50173-1 performance, ISO/IEC 11801-ed. 3 performance
Ambient air temperature for operation -20-60 °C
Ambient air temperature for installation 0-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 44.500 cm
Package 1 Width 40.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 28.500 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 105.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 357.000 kg
