Picture of Enclosed switch disconnector,TeSys Control,for ON/emergency stop,10A,IP65,compact size
SKU:

VCFN12GE

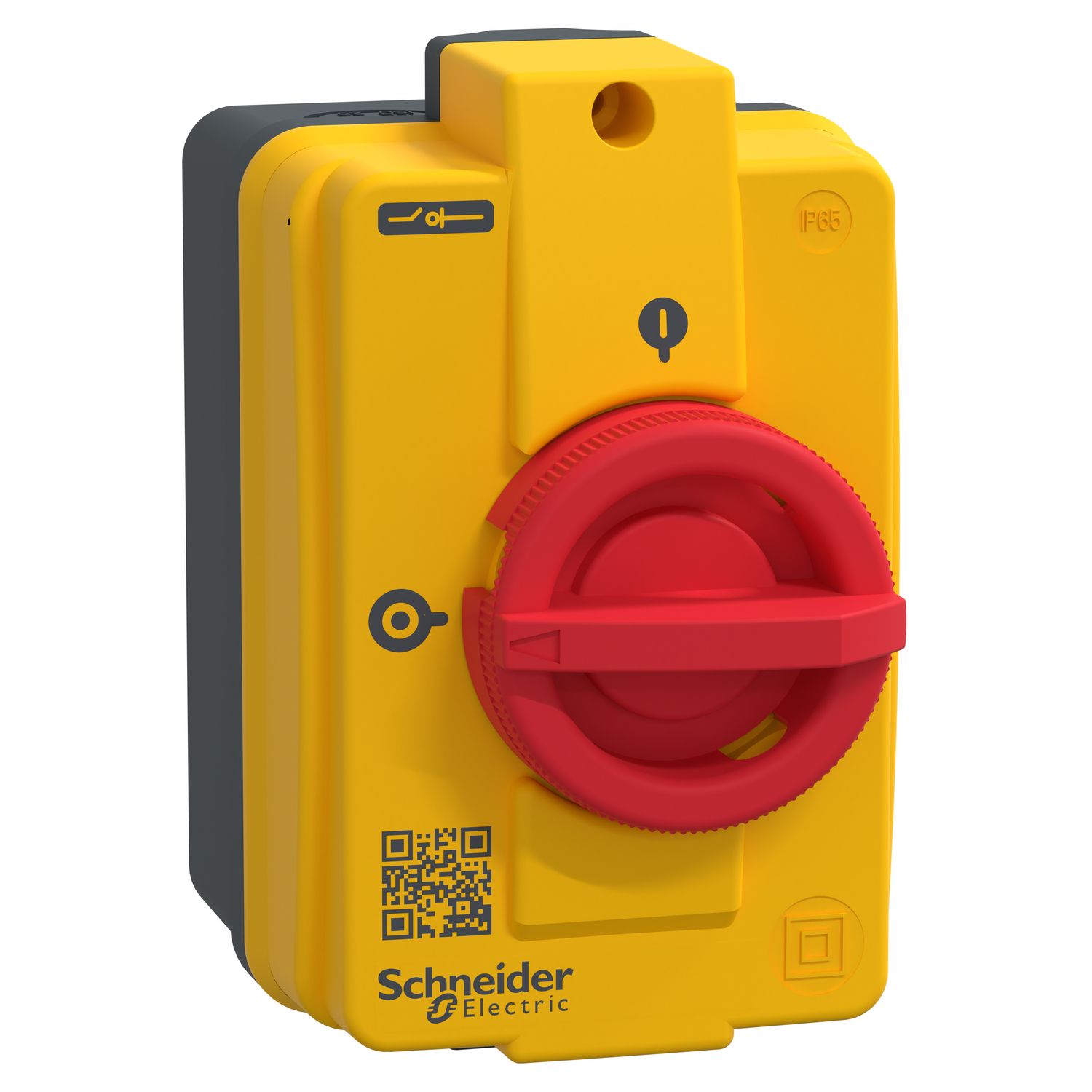

Enclosed switch disconnector,TeSys Control,for ON/emergency stop,10A,IP65,compact size

$250.48 INC GST
Available for Shipping : 10-Apr-2025
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,10A,IP65,compact size
  • High protection degree of waterproof and dustproof for harsh environment
  • Environmentally friendly materials
  • Easy operation with padlockable handle
  • Simple and reliable installation
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main and emergency stop switching in motor applications up to 4kW@400V AC-23. Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole mini-Vario switch body VN12 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VCFN
Control type rotary handle
Range TeSys
Poles description 3P
Performance level standard
Product name TeSys Mini-VARIO
Product or component type emergency stop switch disconnector
Handle colour red
Handle front plate colour yellow
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Complementary
[Icw] rated short-time withstand current 140 A at 400 V duration: 1 s
Tightening torque control circuit: 0.7-0.7 N.m - on connector
Fire resistance 960 °C conforming to IEC 60595-2-1
Compatibility code enclosed switch disconnector
Mechanical durability 50000 cycles
[Ie] rated operational current 8.1 A (AC-23A) at 400 V
Electrical durability 50000 cycles AC-21, 30000 cycles DC-1...5
Connections - terminals control circuit: connector cable(s) 4-4 mm² solid, control circuit: connector cable(s) 4-4 mm² flexible with cable end
Base dimension 60 x 60 mm
Marking 0 - 1
Intermittent duty class 30
Height 131 mm
Rated conditional short-circuit current 6 kA at 400 V - associated fuse 12 A gG, 6 kA at 400 V - associated fuse 12 A aM
Rated operational power in W 3 kW at 400 V (AC-3), 4 kW at 400 V (AC-23)
Breaking capacity 120 A (AC-21A), 120 A at 400 V (AC-23A), 120 A at 400 V (AC-22A)
Depth 106 mm
Width 82.5 mm
Suitability for isolation yes
[Icm] rated short-circuit making capacity 0.5 kA at 400 V at Ipeak
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 120 A at 400 V AC-23A, 120 A at 400 V AC-22A, 120 A at 400 V AC-21A
Net weight 0.422 kg
[Ithe] conventional enclosed thermal current 10 A
[Ue] rated operational voltage 690 V AC
Environment
Mechanical robustness shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Protective treatment TC
Ambient air temperature for operation -20-50 °C
Standards IEC 60947-4-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 14.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 304.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.471 kg
Unit Type of Package 3 3
Number of Units in Package 3 112
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 49.972 kg
